13 SERVICE WORK ON THE CHASSIS
74
13.28 Adjusting the chain tension
Warning
Danger of accidentsIncorrect chain tension damages components and results in accidents.
If the chain is tensioned too much, the chain, engine sprocket, rear sprocket, transmission and rear
wheel bearings wear more quickly. Some components may break if overloaded.
If the chain is too loose, the chain may fall off the engine sprocket or the rear sprocket. As a result, the
rear wheel locks or the motor will be damaged.
Check the chain tension regularly.
Set the chain tension in accordance with the specification.
Preparatory work
Deactivate the vehicle. ( p. 43)
Fold the seat up. ( p. 69)
Remove the Powerpack HV. ( p. 108)
Mount the protection cap. ( p. 71)
Raise the motorcycle with a lift stand. ( p. 57)
Check the chain tension. ( p. 73)

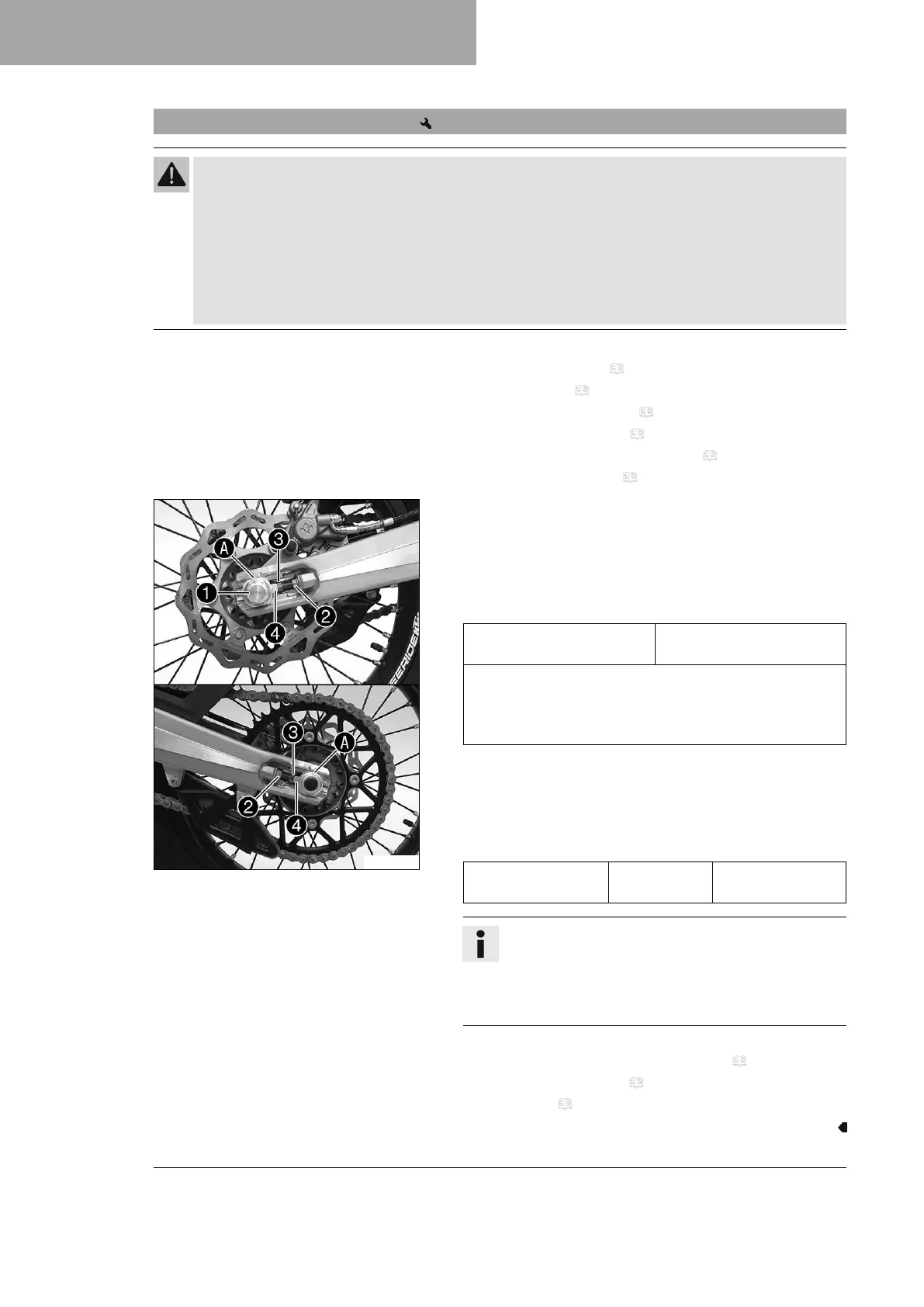

F03127-10
Main work
Loosen nut
1
.
Loosen nuts
2
.
Adjust the chain tension by turning adjusting screws
3
left
and right.
Guideline
Chain tension 36 40 mm (1.42
1.57 in)
Turn adjusting screws
3
on the left and right so that the
markings on the left and right chain adjusters are in the
same position relative to reference marks
A
. The rear
wheel is then correctly aligned.
Tighten nuts
2
.
Make sure that chain adjusters
4
are fitted correctly on
adjusting screws
3
.
Tighten nut
1
.
Guideline
Nut, rear wheel spin-
dle
M20x1.5 80 Nm (59 lbf ft)
Info
The wide adjustment range of the chain adjusters
enables different secondary ratios with the same chain
length.
Chain adjusters
4
can be turned by 180°.
Finishing work
Remove the motorcycle from the lift stand. ( p. 57)
Install the Powerpack HV. ( p. 109)
Lock the seat. ( p. 69)
