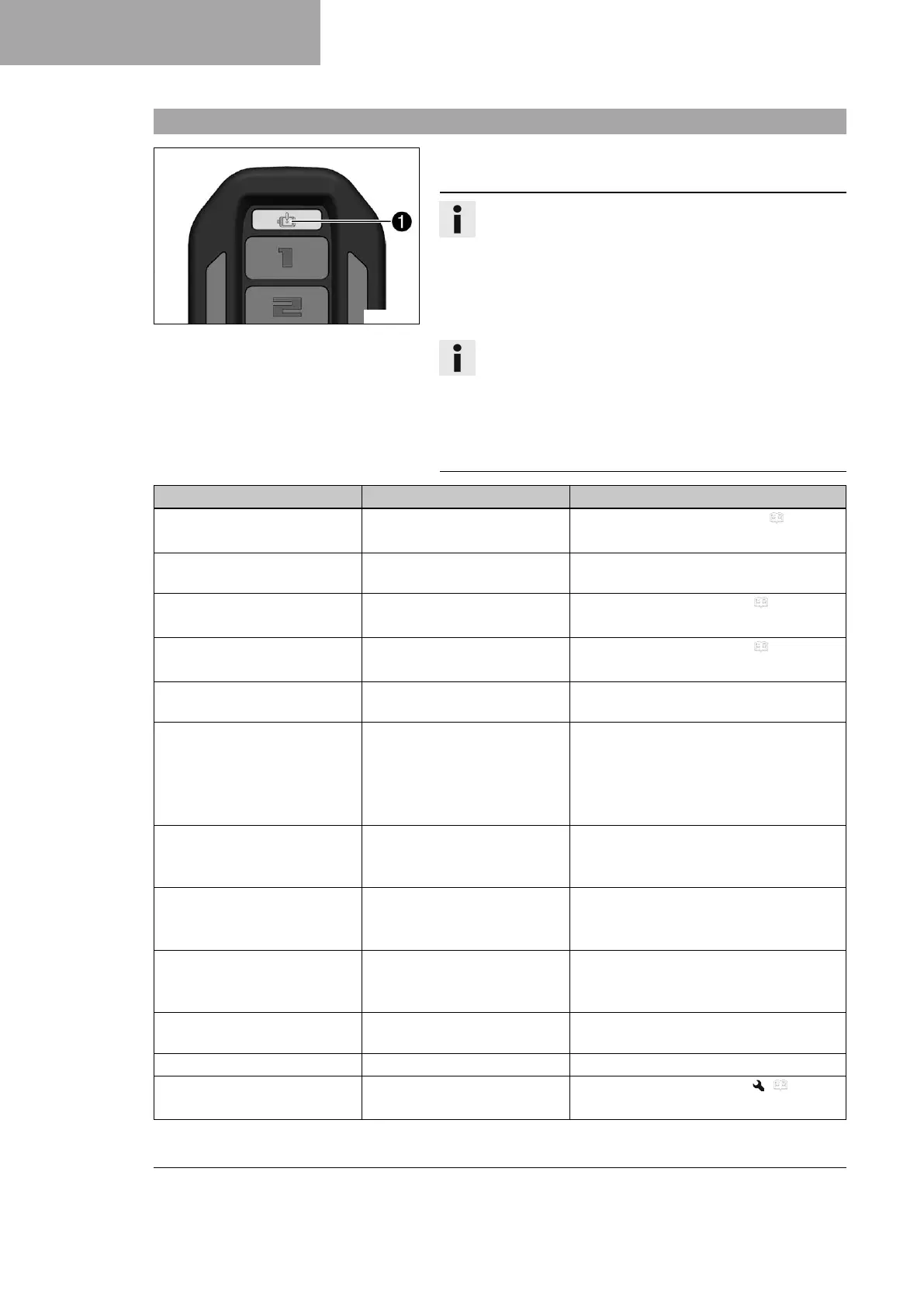

23.1 Vehicle troubleshooting
402136-10
The errors are indicated by the yellow malfunction indicator
lamp
1
and by acoustic signals that sound at the same time.
Tip
The first step to take in case of any error is to switch off
the vehicle at the main switch, wait for 15 seconds, and
then switch the vehicle back on.
If a fault is not eliminated by the measures specified here,
or a blink code is not listed, an authorized KTM workshop
will be happy to help you.
Info
The pause between the signals of the 1st digit is 0.25 sec-
onds.
The pause between the 1st and 2nd digits is 1 second.
The pause between the signals of the 2nd digit is also
0.25 seconds.
The pause until the blink code repeats is 3 seconds.
Faults Possible cause Action
Blink code 11 on the vehicle Powerpack HV discharged – Charge the Powerpack HV. ( p. 113)
– Use the charged Powerpack HV.
Blink code 13 on the vehicle Fault during charging – Stop charging, switch off the main
switch, and restart charging.
Blink code 22 on the vehicle Overtemperature of the control
unit
– Check the coolant level. ( p. 122)
– Check the radiator for dirt.
Blink code 23 on the vehicle Overtemperature of the electric
motor
– Check the coolant level. ( p. 122)
– Check the radiator for dirt.
Blink code 24 on the vehicle Overtemperature of the
Powerpack HV
– Allow the Powerpack HV to cool down.
Blink code 31 on the vehicle Fault in the CAN communica-
tion
– Switch the main switch off and on.
– Check the Powerpack HV for correct
positioning.
– Check the connection of the multifunc-
tion display for loose connectors.
Blink code 33 on the vehicle Error in the communication
with the Powerpack HV
– Switch the main switch off and on.
– Check the Powerpack HV for correct
positioning.
Blink code 34 on the vehicle Error in the communication
with the multifunction display
– Switch the main switch off and on.
– Check the connection of the multifunc-
tion display for loose connectors.
Blink code 41 on the vehicle Fault in the throttle grip – Switch the main switch off and on.
– Check the throttle grip for external
damage.
Blink code 42 on the vehicle Fault in the rotor position sen-
sor
– Switch the main switch off and on.
Blink code 43 on the vehicle Error in the Powerpack HV – Switch the main switch off and on.
Blink code 44 on the vehicle Fault in the 12 V supply – Charge the 12-V battery. ( p. 99)
– Install a new 12 V battery.
