13 SERVICE WORK ON THE CHASSIS
60
– Clean and oil the dust boots and inside fork tubes of both fork
legs.
Universal oil spray ( p. 145)
– Press the dust boots back into the installation position.
– Remove the excess oil.
Finishing work
– Install the fork protector. ( p. 59)
– Remove the motorcycle from the lift stand. ( p. 57)
– Install the Powerpack HV. ( p. 109)
– Lock the seat. ( p. 69)

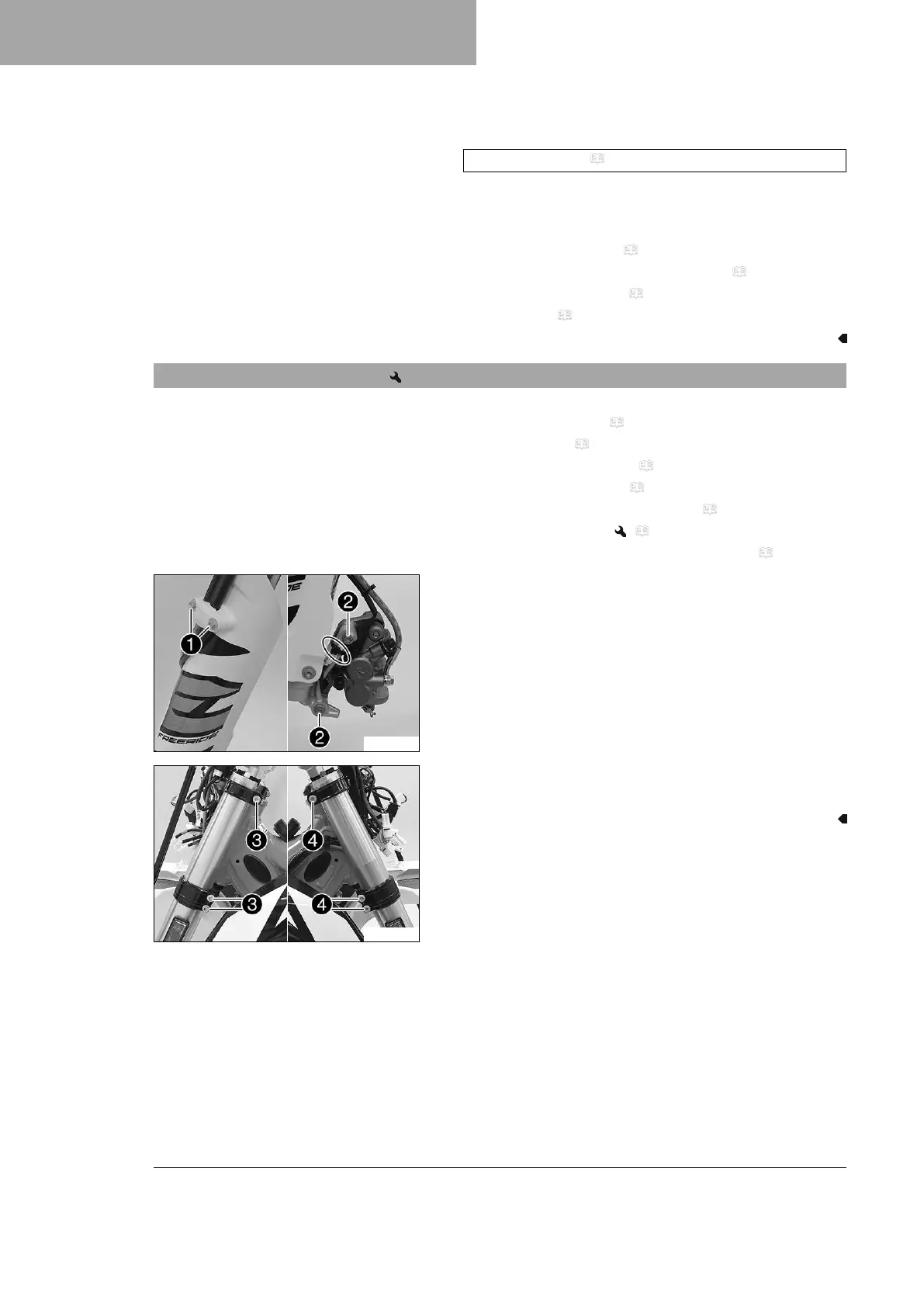

13.7 Removing the fork legs
Preparatory work
– Deactivate the vehicle. ( p. 43)
– Fold the seat up. ( p. 69)
– Remove the Powerpack HV. ( p. 108)
– Mount the protection cap. ( p. 71)
– Raise the motorcycle with a lift stand. ( p. 57)
– Remove the front wheel. ( p. 91)
– Remove the headlight mask with the headlight. ( p. 102)
F03124-10
Main work
–
Remove screws
1
and take off the clamp.
– Remove the cable tie(s) and disconnect plug-in connector.
–
Remove screws
2
and take off the brake caliper.
– Allow the brake caliper and the brake line to hang loosely to
the side.
F02483-10
–
Loosen screws
3
. Take out the left fork leg.
–
Loosen screws
4
. Take out the right fork leg.
