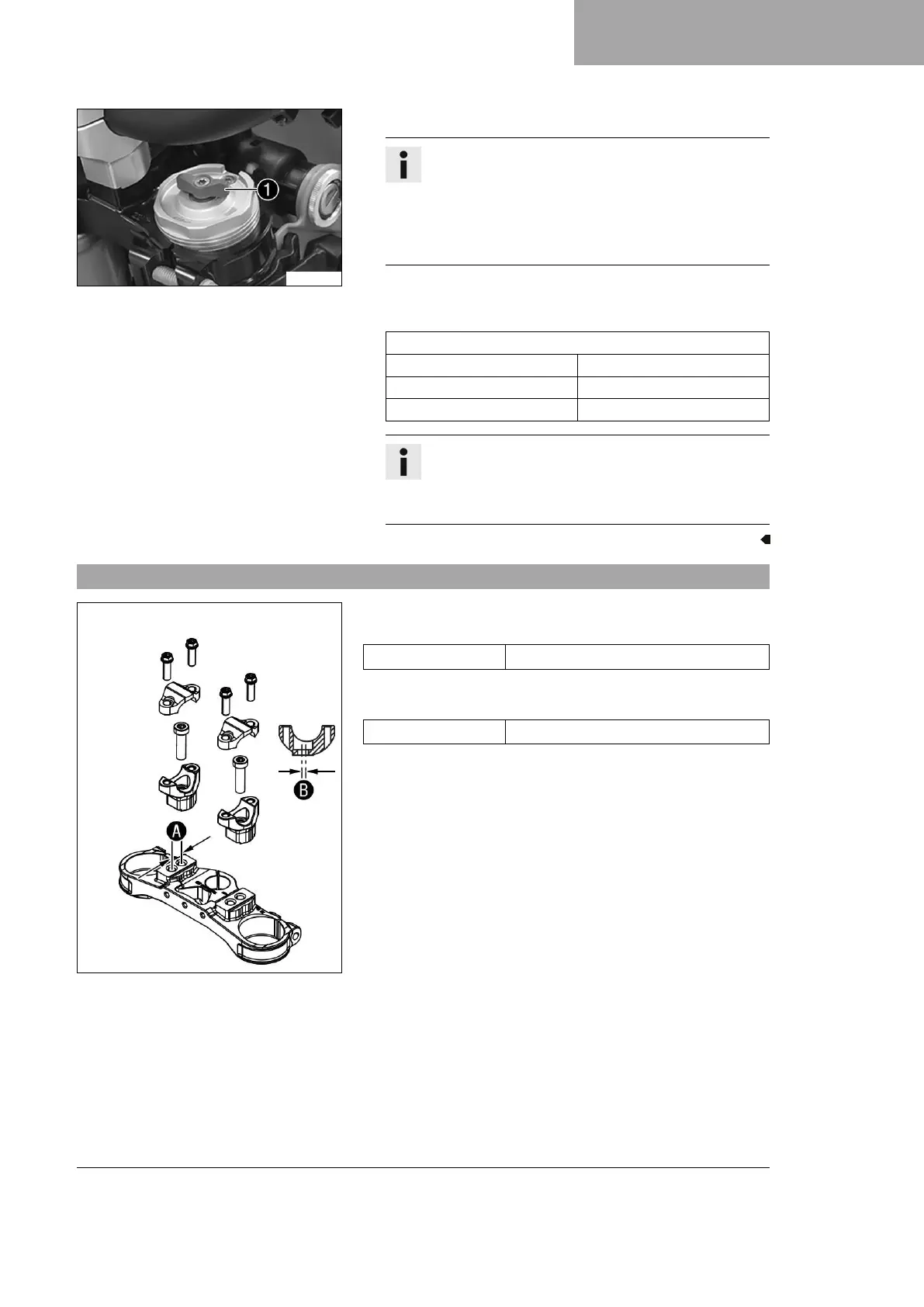

TUNING THE CHASSIS 12
55
A00597-10
–
Turn red adjuster
1
clockwise as far as it will go.
Info
Adjuster
1
is located at the upper end of the right
fork leg.
The rebound damping is located in right fork leg REB
(red adjuster). The compression damping is located in
left fork leg COMP (white adjuster).
– Turn counterclockwise by the number of clicks corresponding
to the fork type.
Guideline
Rebound damping
Comfort 18 clicks
Standard 15 clicks
Sport 12 clicks
Info
Turn clockwise to increase the damping; turn counter-
clockwise to reduce damping when the shock absorber
rebounds.
12.14 Handlebar position
H02563-10
On the upper triple clamp, there are two holes at a distance of
A
to each other.
Hole distance
A
15 mm (0.59 in)
The holes on the handlebar supports are placed at a distance
of
B
from the center.
Hole distance
B
3.5 mm (0.138 in)
The handlebar supports can be mounted in four different posi-
tions.
