5. ENGINE REMOVAL/INSTALLATION

5-9

DINK 200i/DINK 125

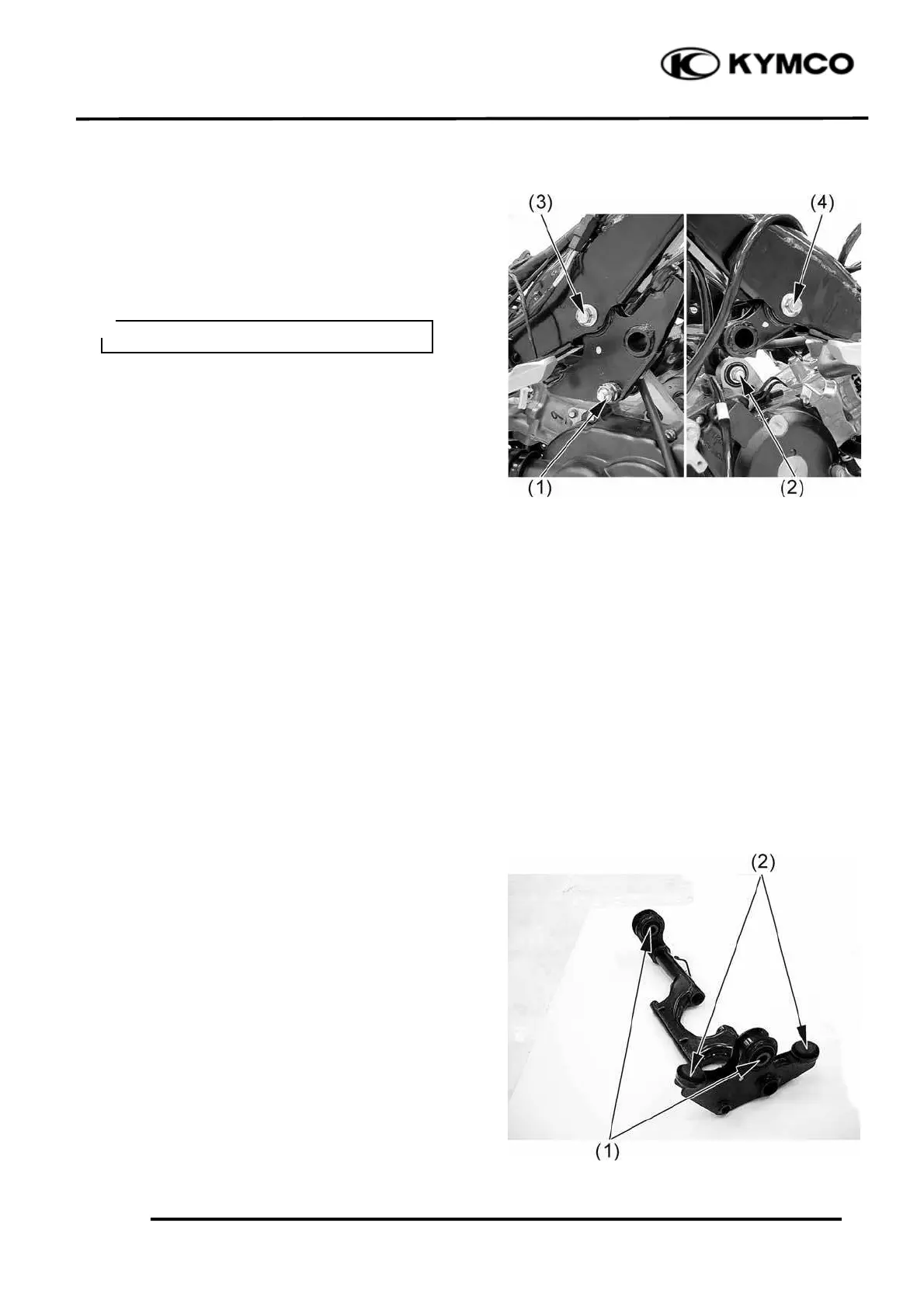

ENGINE HANGER

REMOVAL

Remove the engine mount nut (1).

Pull the engine mount bolt (2) out.

Remove the left engine hanger mount bolt

(3).

Remove the right engine hanger mount bolt

and collar (4).

Remove the engine from frame.

INSTALLATION

Installation is in the reverse order of removal.

Tighten the engine hanger mount bolts to the

specified torque.

Torque: 5 kgf-m (50 N-m, 36 lbf-ft)

Tighten the engine mount bolt/nut to the

specified torque.

Torque: 5 kgf-m (50 N-m, 36 lbf-ft)

INSPECTION

Inspect the engine hanger bushings (1) and

stopper rubber (2) for wear or damage.

Be careful to put the engine down.

• •
