KYMCO DINK 200i Service Manual

1. GENERAL INFORMATION
1-15
DINK200i/125

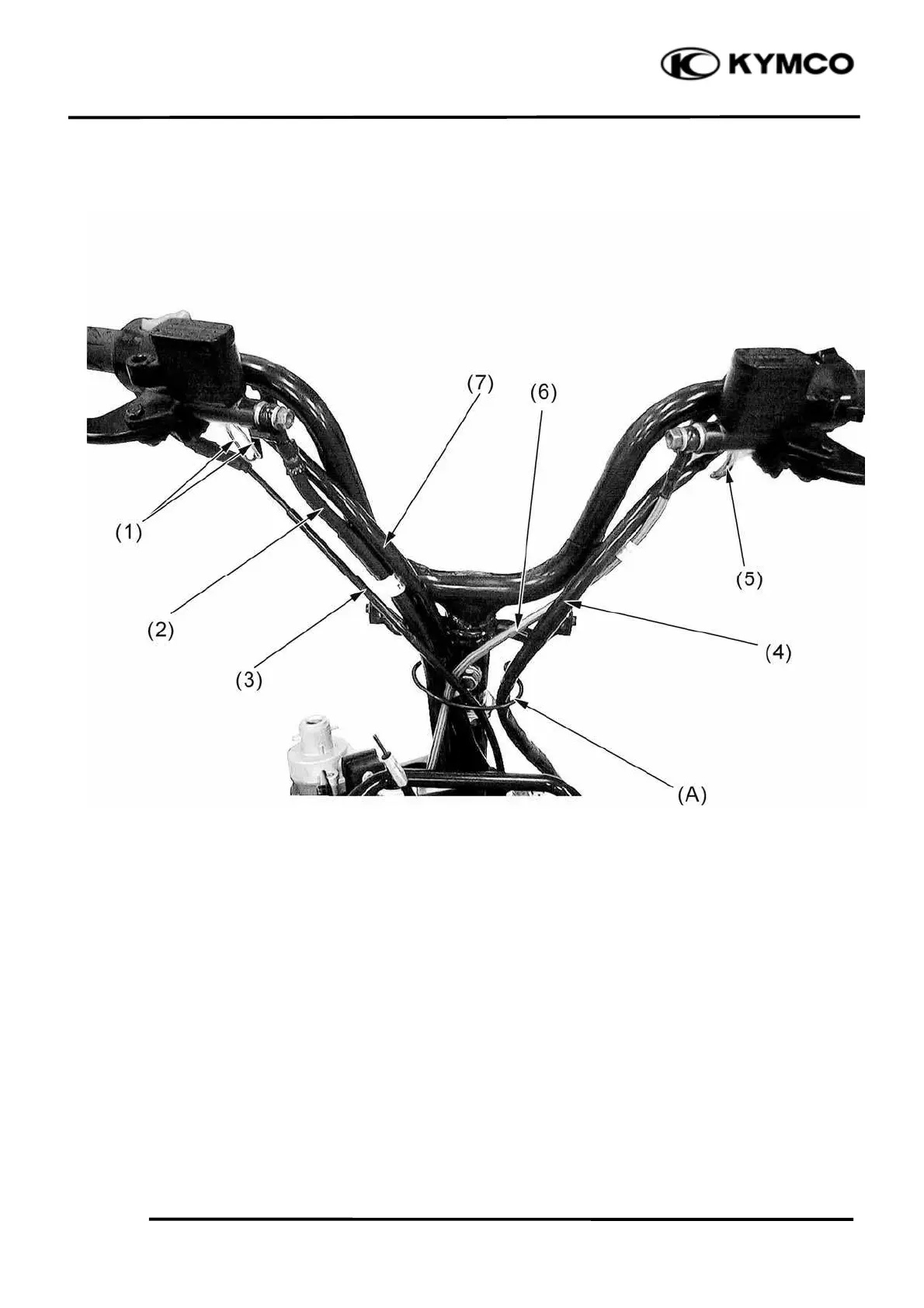

CABLE & HARNESS ROUTING
(1) Brake light switch (Front brake) (2) Front brake hose (3) Throttle cable (Note)
(4) Left handlebar switch (5) Brake light switch (Rear brake)
(6) Rear brake hose (7) Right handlebar switch
(A) Pass the front brake hose, rear brake hose, throttle cable, right handlebar switch and left handlebar
switch through the guide.
Note: Pass the throttle cable through the lower handlebar cover.
