14. DINK 200 i: FUEL SYSTEM (Auto Control Fuel Injection System)

14-50

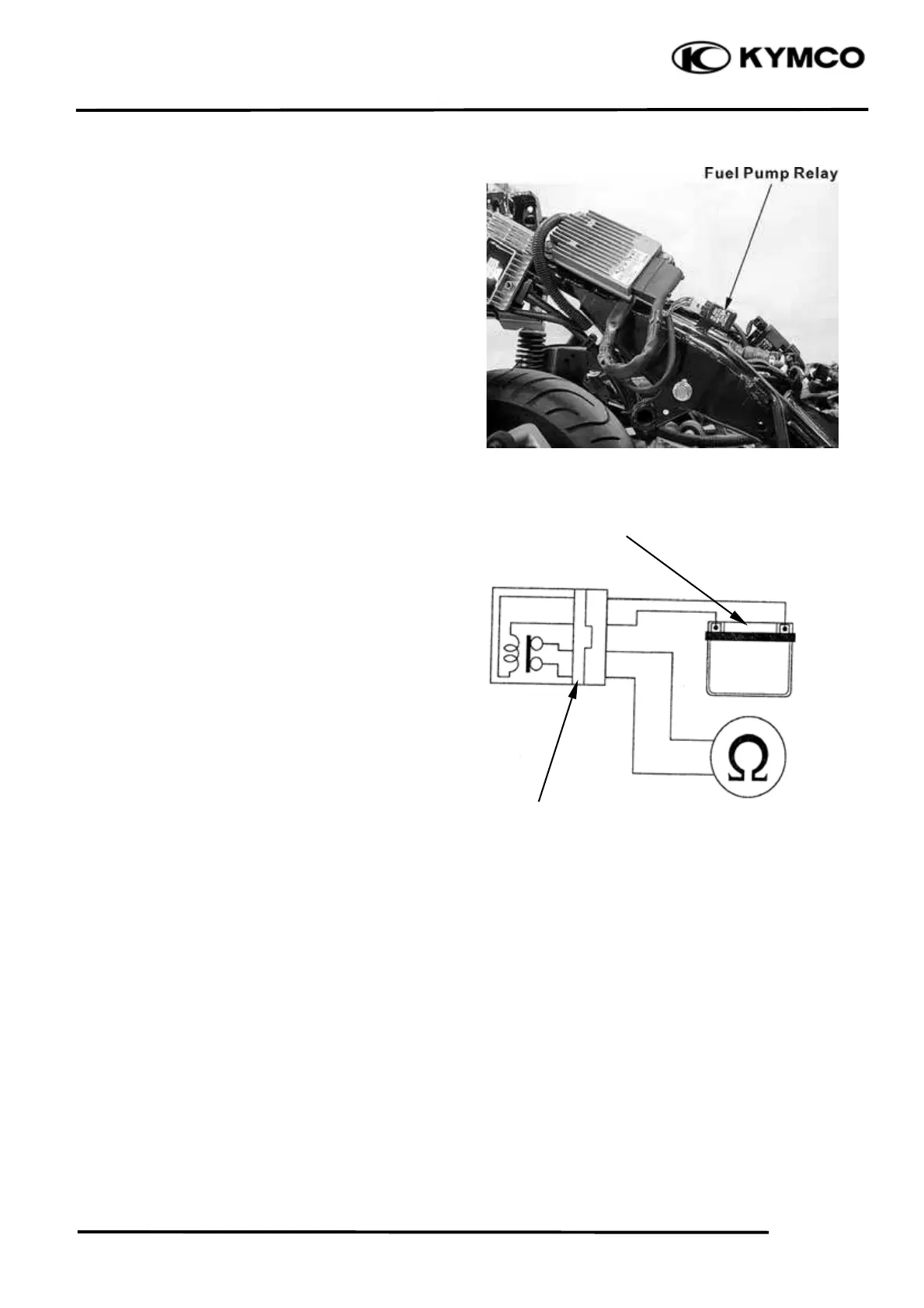

FUEL PUMP RELAY

REMOVAL/INSTALLATION

Disconnect the fuel pump relay connector,

then remove the fuel pump relay.

Installation is in the reverse order of the

removal.

INSPECTION

Remove the fuel pump relay.

Connect the ohmmeter to the fuel pump relay

connector terminals.

Connection: Red – Red/Black

Connect he 12 V battery to the following fuel

pump relay connector terminals

Connection: Black/White – Black/Red

There should be continuity only when the 12

V battery connected.

If there is no continuity when the 12 V

battery is connected, replace the fuel pump

relay.

Battery

uel Cut-Off

Relay
