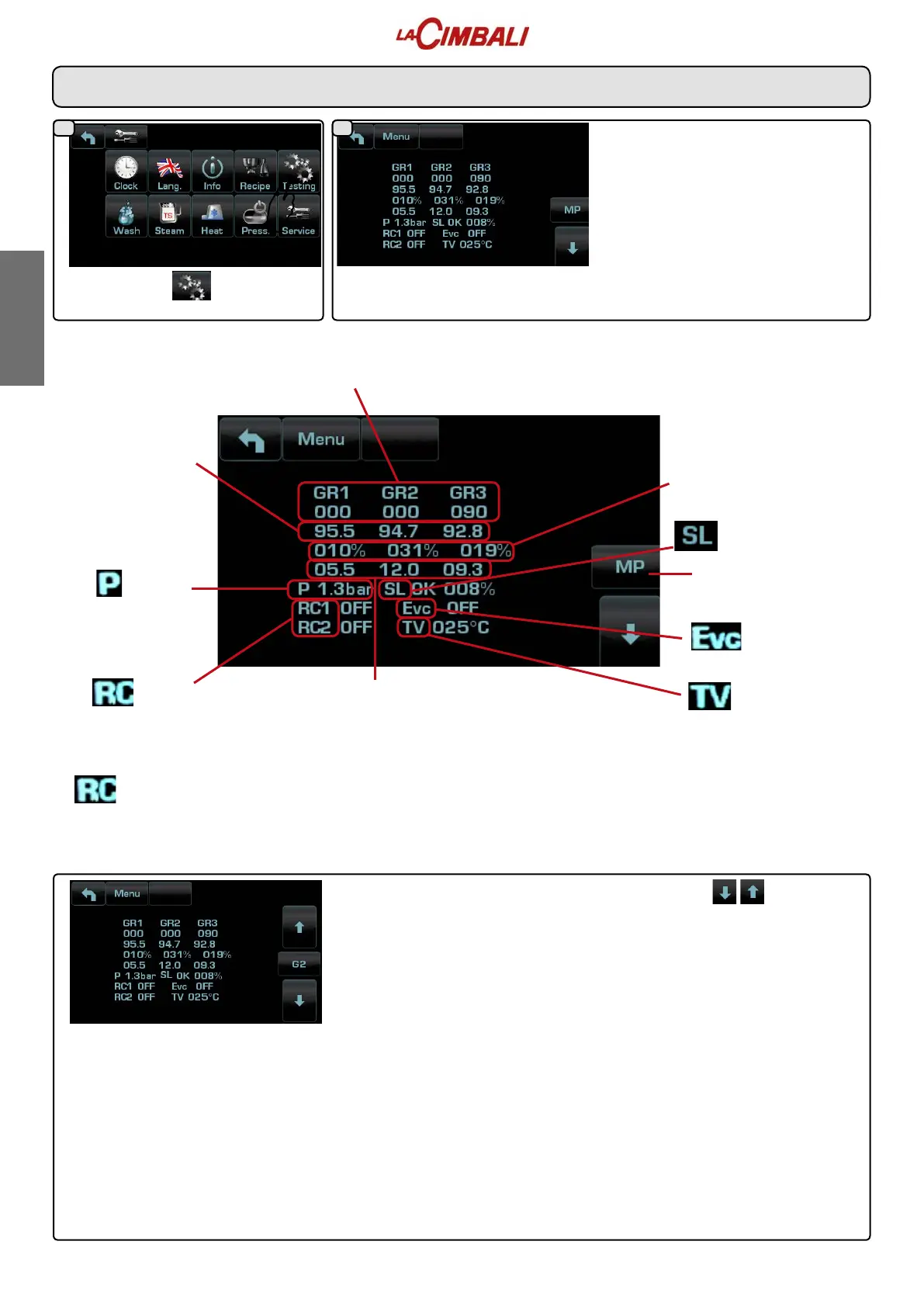

The test screen permits manual operation
of the components in the machine.
Press the icon .
Volumetric meter
incremental counter
instant boiler
temperature
tested part
boiler
pressure
Turbosteam wand
steam temperature
boiler
resistance
Boiler load
solenoid valve
Hereisthetableofsymbolsusedtodenethemovingpartsthatcanbe
accessed:
MP Pump motor
G1÷G4 Coffee dispensing solenoid valves
Eac Hotwatersolenoidvalve
Eaf Cold water solenoid valve
Eav Steam water solenoid
Evc Boiler load solenoid valve
Ets Steam solenoid valve (Turbosteam)*
MC Turbosteam compressor motor*
Eds EDSsolenoidvalve*
Em-Erp Milk solenoid valve/ Pressure-reset solenoid valve*
Gp1÷Gp4 Proportional solenoid valve*
boiler activation
percentage
Boiler activation percentage: Modulation percentage of the heating power of the boiler.
Boiler resistance: Activation of resistance elements on the basis of the power selected.
Totalpowerdividedinto:RC1=⅔-RC2=⅓
Fullpowercycle:RC1ON/RC2ON Lowpowercycle:RC1ON/RC2OFF
RC1 OFF / RC2 OFF RC1 OFF / RC2 OFF
sensor pressure
dispenser groups (HD only)
6. Testing
level signal; water
level in boiler
Testing
Testing
Testing
Componentstooperateareselectedbypressingicons ; the operation
takesplacebypushingthebuttonwhichindicatesthenameofthepart.
The components - * - are only applied with certain product congurations.
1 2

