All the TECHNICAL MENU items of the "Magnum Bluetooth" grinder/dispenser can be viewed only

after the default technical code has been entered.

TECHNICALMENU

CONFIGURATION

BLUETOOTH

Press the icon toconrm.

Press the icon .

1)Theitemsarescrolledbypressingtheicons .

2) Press the icon

ENABLED

SPECIALDOSE

(White/Blue)

SINGLEDOSE

(Red)

DOUBLEDOSE

(Green)

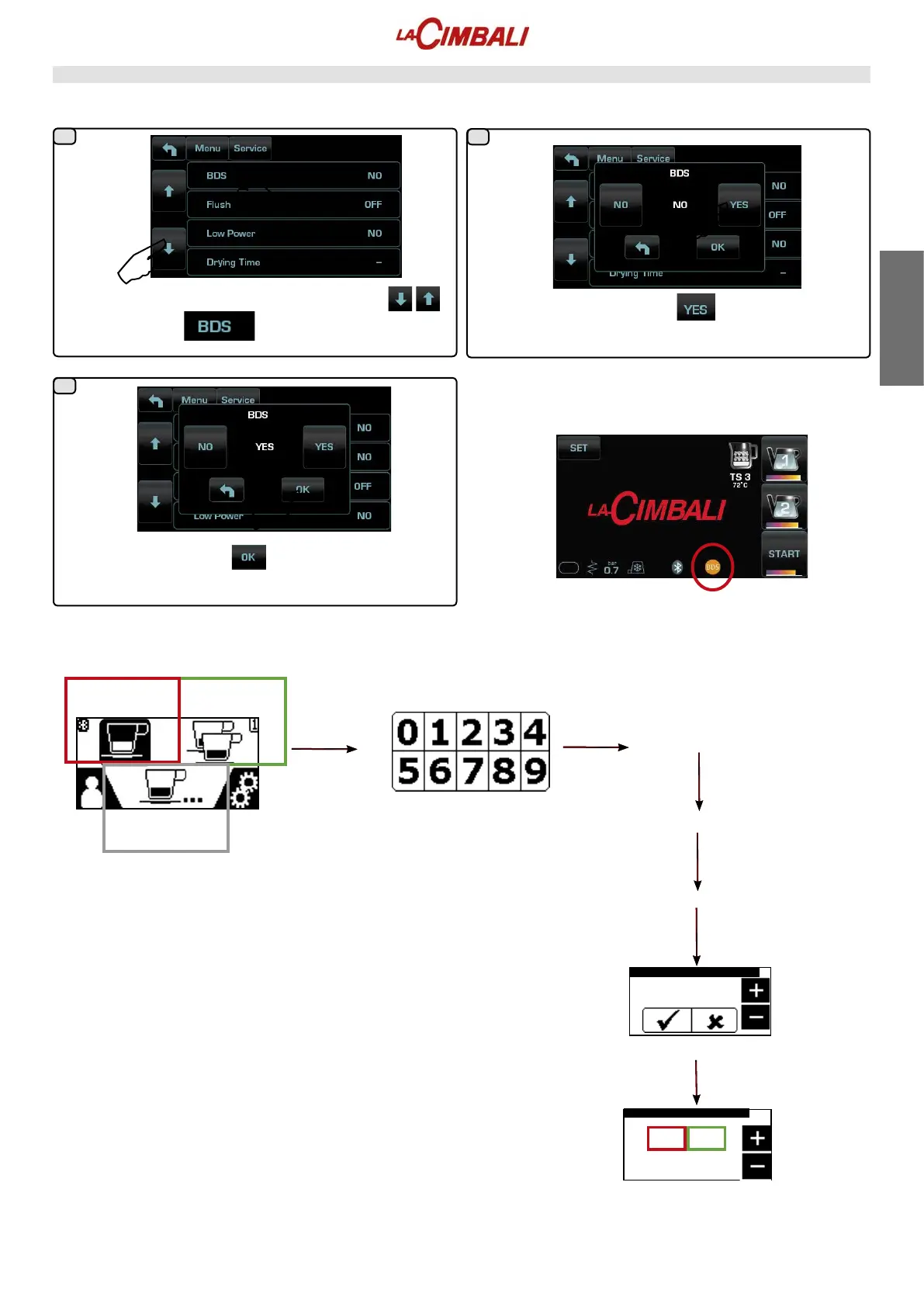

BDS activation and sensor conguration

Note: WithBDS active the paymentsystems cannotbe

activated.

(Cannot be activated on “HD” machines)

BDS

1- - 2



Legend3
Index6
Wiring Diagram6
Hydraulic Circuit6
Description Display Symbols7
Water Level7
Resistance7
Cold Machine7
Payment Systems8
Control of the Flow (Only if in Use)8
Switching off the Boiler (Only on “HD / GT” Machines)8
Data Flow Chart - Technician Programming9
Technician Programming10
Programming Access10
Access the Programming Menu by Pressing10
Service Time Menu11
Automatic Switch off / Switch on11
Forced Switch on11
Language Selection12
INFO Menu12
Counters12
In the Selection Counters12
Counters (Versions with Turbosteam L and Turbosteam R)13
Water Change13
Coffee13
Milk (Versions with Turbo Milk)13
Fault History14
Setup14
Version14
Serial Number14
Programming Measures Function15
Water Dose Programming15
Water Dose Programming Using the "Self-Learning" Function16
Programming Measures Using the “SELF-LEARNING” Function17
Clone Function18
Pressure Profile (Only on “HD” Machines)19
Available Profiles20
Edit Profiles20
Testing22
Washes25
Turbosteam27
Cup Warmer29
Heating Element29
Programming30
Control Time30
Unit of Temperature30
Unit of Pressure30
Softener Reg.31
Change Water Filter31
Maintenance31
Flush31
Coffee Boiler32
Bluetooth Connection32
Bluetooth Menu32
Procedure for Bluetooth Connection with the Machine-Grinder Unit33
BDS Activation and Sensor Configuration35
Technical Menu35
Configuration Magnum Bluetooth Grinder/Dispenser Sensors36
Setting Recipes and Connections with Grinder/Dispenser37
Operating Logic38
Grinder Control Parameters Configuration39
Wifi Configuration43
Enabling Flush Key44
Logo46
Coffee Group Display Logo48
Time48
Updating the Turbomilk SW Board Using USB Pen Drive48
Preliminary Operations49
PRELIMINARY OPERATION: Recognizing of USB Support49
Starting the Software Update49
Display Calibration50
Recovery51
Start-Up with Recovery Files51
Touch Screen Display Test52
Diagnostic Messages53
Code Description53
Disassembly and Setting57
Removal of the Side Panels57
Stainless Steel Front Panel59
Rear Panel60
Draining the Boiler Water61
Removing the Boiler Heating Element62
Coffee Boiler63
Services Display Panel65
Turbosteam Control and Lance66
Junction Box66
Peristaltic Pump67
CPU Dip-Switch67
Battery - Fuse68
TURBOSTEAM on the Left Side69
Wiring Diagram Legend76
Connector List76
Hydraulic Diagram Legend79
Hydraulic Diagram Key (Version with Turbo Milk)81
