Flip it out to any angle and work comfortable at your desk, or hang it on steering wheel.
1.3.2 SmartLink C V2.0 Device
The SmartLink C V2.0 device features powerful functions and it can be applied in the following
situations:
1). When as a VCI (Vehicle Communication Interface), it needs to work in conjunction with the
Diagnose module of the tablet, which is used to obtain vehicle data, and then send it to the tablet
for analysis wirelessly or via data cable.
2). When as a SmartLink C (Customer) dongle, it does not communicate with the tablet, but it needs to
work together with the SmartLink module of the tablet. The tablet is mainly used to issue remote
diagnostic requests, and the SmartLink C dongle is networked to receive and execute commands
from the remote SmartLink B (Business).
Note: For detailed operations, please refer to Chapter 7.
3). When as a local J2534 PassThru device, it can be used in conjunction with the PC installed with
OEM diagnostic software.
Note: For detailed operations, please refer to Chapter 11.

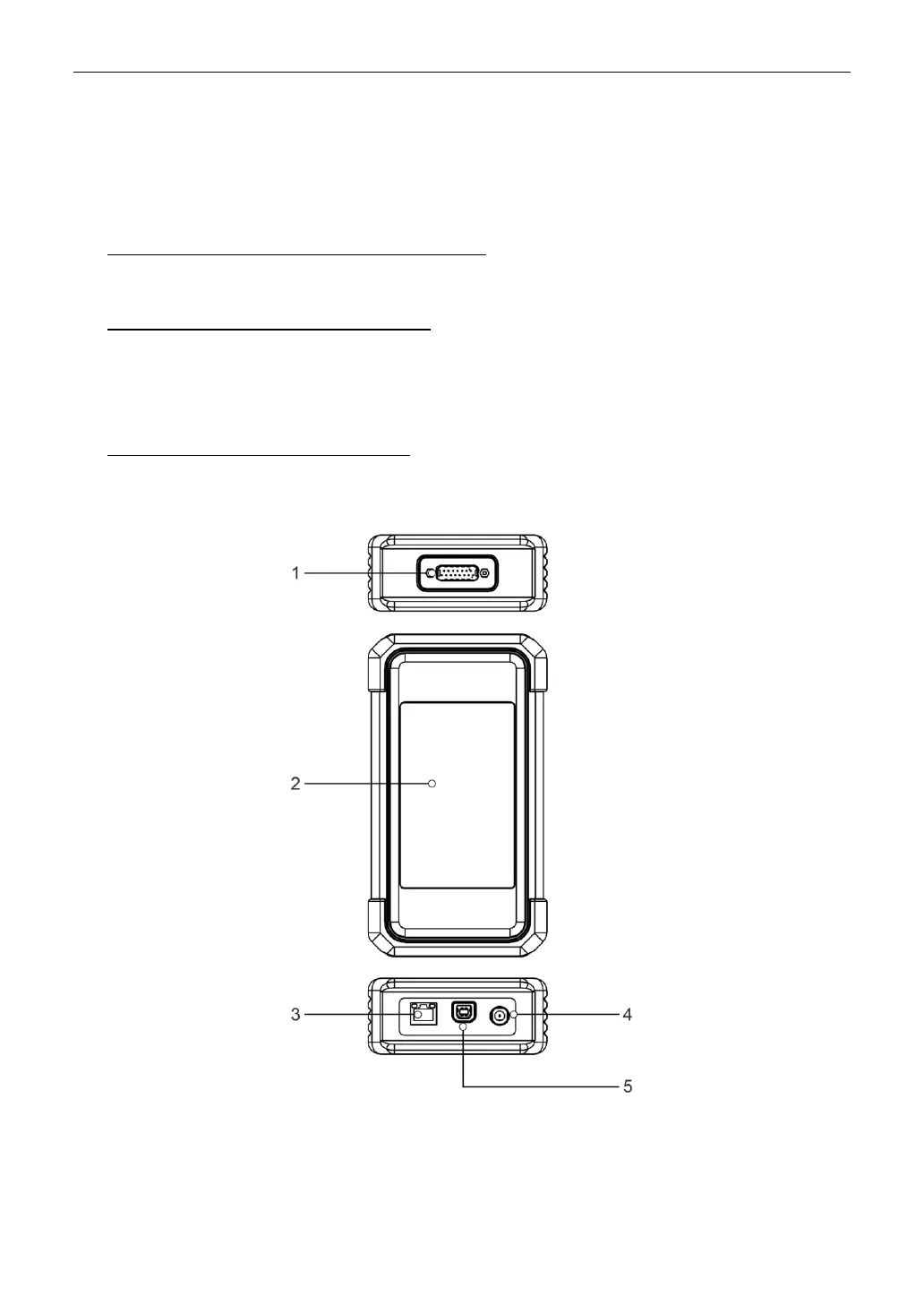

1. DB-15 diagnostic connector
Connect it to the vehicle’s DLC (Data Link Connector) port via the diagnostic cable.
2. Touch screen
3. LAN/WAN port
