Manitowoc Grove GRT655 User Manual

OPERATING PROCEDURES GRT655/655L OPERATOR MANUAL
4-84 Published 3-23-2020, Control # 654-04

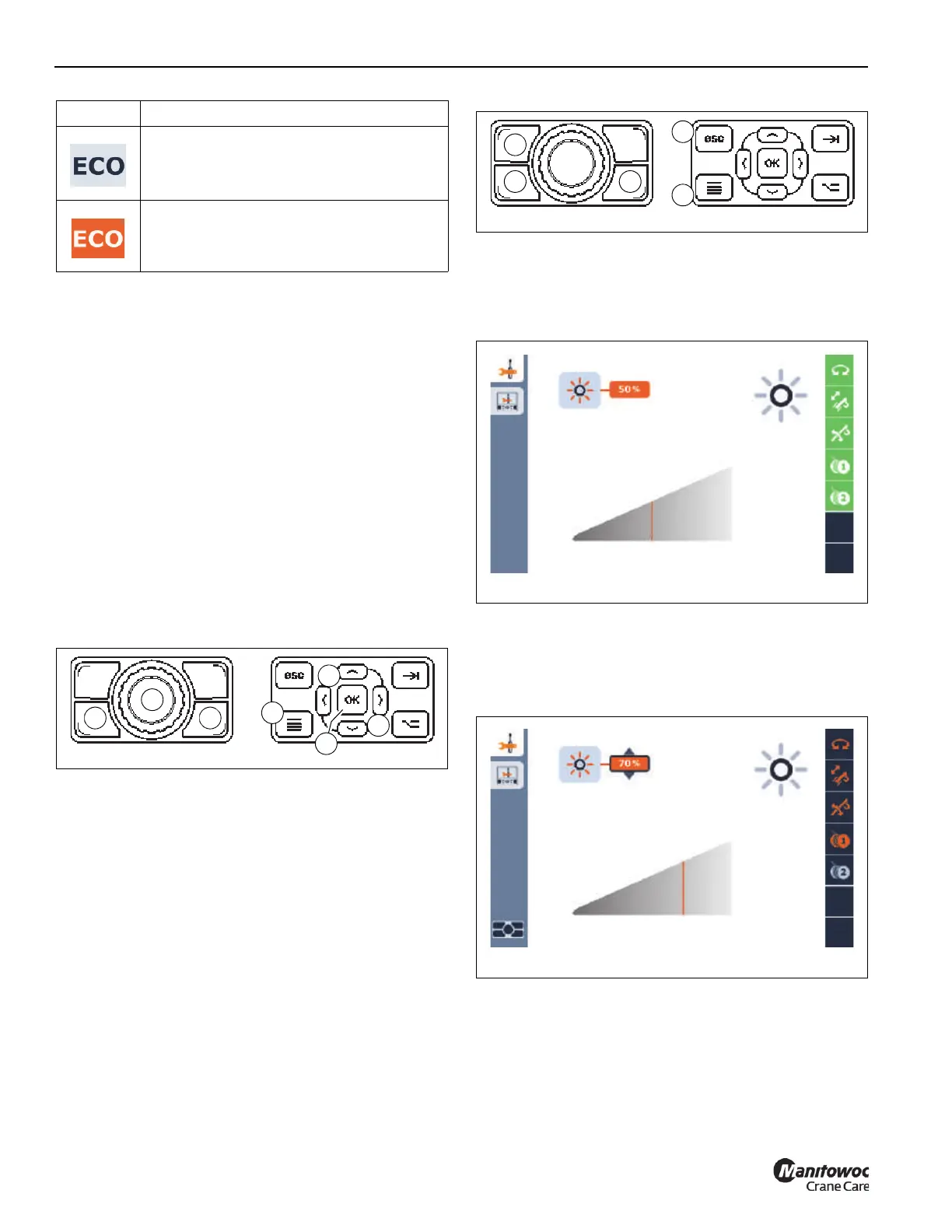

Accessing a Tools Group Function Screen
Access a Tools Group function screen (Figure 4-48) by doing
one of the following:
• Press the Screen Toggle Button (1, Figure 4-49) at the
Jog Dial to select the ODM screen control.
Press the Menu Button (2) to go to the Menu Screen.
Using the Jog Dial (3), select one of the Tools Group
function icons (icon will turn orange), then press the Jog
Dial (3).
- or -
• Press the Menu Button (4, Figure 4-49) on the
Navigation Control Pad at the ODM to go to the Menu
Screen.
Using the Arrow Buttons (5), select one of the Tools
Group function icons (icon will turn orange), then press
the OK Button (6).
Exiting a Tools Group Function Screen
Perform one of the following procedures to exit a Tools
Group function screen and navigate to the Main Screen or
Menu Screen:
• Press the Screen Toggle Button (1, Figure 4-50) at the
Jog Dial to select the ODM screen control, then press
the Escape Button (2) for the Main Screen or the Menu
Button (3) for the Menu Screen.
- or -
• Press the Escape Button (4, Figure 4-50), on the
Navigation Control Pad at the ODM, for the Main Screen
or the Menu Button (5) for the Menu Screen.
Setting the Display Screen Brightness
The Display Screen Brightness function screen (Figure 4-51)
allows the operator to adjust the brightness of the ODM and
RDM screens.
Press the Jog Dial or OK Button on the Navigation Control
Pad, then use the Jog Dial or Arrow Buttons to increase or
decrease the screen brightness. The following example
(Figure 4-52) shows the display brightness increased from
the default setting of 50% to 70%.
Setting the Units of Measure
The Units of Measure function screen (Figure 4-53) allows
the operator to select the units of measure that is used
throughout the ODM and RDM screens.
ECO Mode icon - not selected
ECO Mode icon - selected
Icon Description
FIGURE 4-49
12
3
4
5
6
5
FIGURE 4-50
1
2
3
4
5
FIGURE 4-51
9219
FIGURE 4-52
9219
