OPERATING CONTROLS GRT655/655L OPERATOR MANUAL
3-8 Published 3-23-2020, Control # 654-04

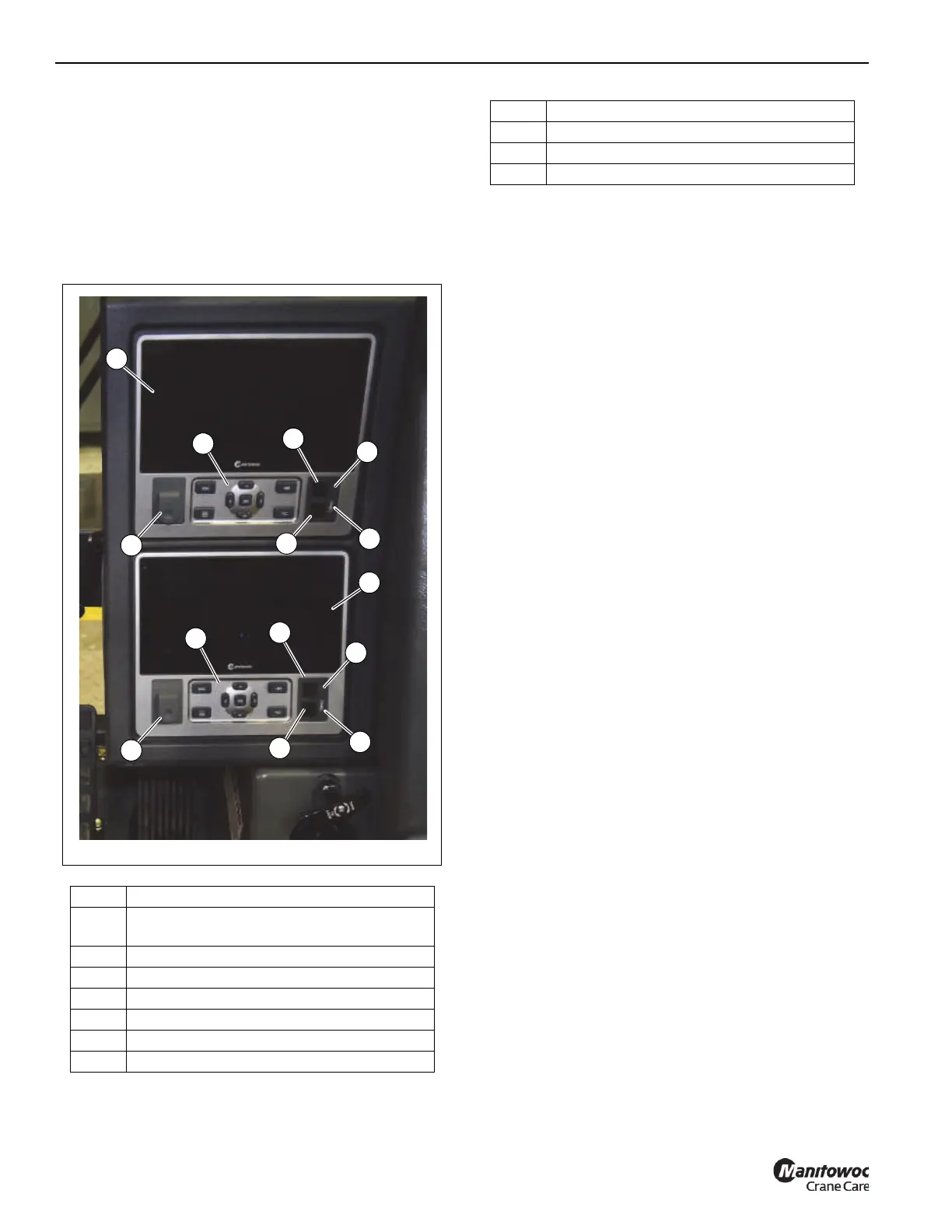

OPERATOR DISPLAY MODULE AND RATED
CAPACITY LIMITER DISPLAY MODULE
The Rated Capacity Limiter Display Module (RDM) and the
Operator Display Module (ODM) (Figure 3-5) are located to
the right of the steering column.
Each module consists of a display screen, navigation control
pad, warning indicators, a screen brightness sensor, and a
USB diagnostic connector.
Rated Capacity Limiter Display Module
(RDM)
The Rated Capacity Limiter Display Module (RDM) (1,
Figure 3-5) allows the operator to easily program the RCL by
entering a code number from the Load Chart Manual or by
following the RCL setup wizard.
Refer to Using the Rated Capacity Limiter Display Module
(RDM), page 4-93 for more information regarding the
module’s use in the operation of the crane.
Operator Display Module (ODM)
The Operator Display Module (ODM) (2, Figure 3-5) allows
the operator to do the following:
• Monitor crane performance
• Extend/retract the outriggers
• Choose the different camera views to be displayed on
the ODM Main Screen (if equipped with 3-View Camera
option)
• Set the working range limits (WRL)
• Set the screen display brightness, units of measure
(metric/imperial), and controller settings; and turn the
ECO mode on/off
• View engine/transmission fault codes, crane fault codes,
software versions installed, and hours of operation for
each function
Refer to Using the Operator Display Module (ODM),
page 4-35 for more information regarding the module’s use
in the operation of the crane.
Navigation Control Pad
The Navigation Control Pads (3, Figure 3-5) on the Rated
Capacity Limiter Display Module (RDM) and the Operator
Display Module (ODM) allow the operator to navigate
through the function screens for the related module. The
control buttons on the two Navigation Control Pads are
identical in configuration and perform the same functions.
The Tab Button (2, Figure 3-6) on the ODM’s Navigation
Control Pad can be pressed to temporarily silence active
audible alarms.
Item Description
1
Rated Capacity Limiter Display Module
(RDM)
2 Operator Display Module (ODM)
3 Navigation Control Pad
4 USB Connector
5 RCL Shutdown Warning Indicator
6 RCL Early Warning Indicator
7 Anti Two-Block (A2B) Indicator
C9521
FIGURE 3-5
2
3
9
1
7
8
3
5
6
10
4
9
10
4
1
8 Swing Brake Engaged Indicator
9 Brightness Sensor
10 Internal Temperature Warning Indicator
Item Description
