OPERATING PROCEDURES GRT655/655L OPERATOR MANUAL
4-108 Published 3-23-2020, Control # 654-04
USING THE BIRDSEYE CAMERA
(OPTIONAL)
Refer to Birdseye Camera (Optional), page 3-23 for a
description of the Birdseye Camera System and the different
views that it offers.
The Birdseye Camera Display is factory set to come on and
go off with the ignition keyswitch. Thus, there is no need to
turn the display on and off by way of the Power Button on the
display (Figure 4-93).
If the Power Button on the display is pressed, the display will
go off and the Power Button will come on (red LED). To turn
on the display, quickly press the Power Button two times.
The display must be set to the AV2 mode for it to show the
different camera views. If the mode is set to any other mode,
the display will show “NO SIGNAL”. If the display is not set to
the AV2 mode, it will go into a standby mode and the screen
will go blank. If necessary, reset the display to the AV2 mode
by first pressing the Power Button one time, then repeatedly
pressing the Mode Button until the AV2 mode is selected.

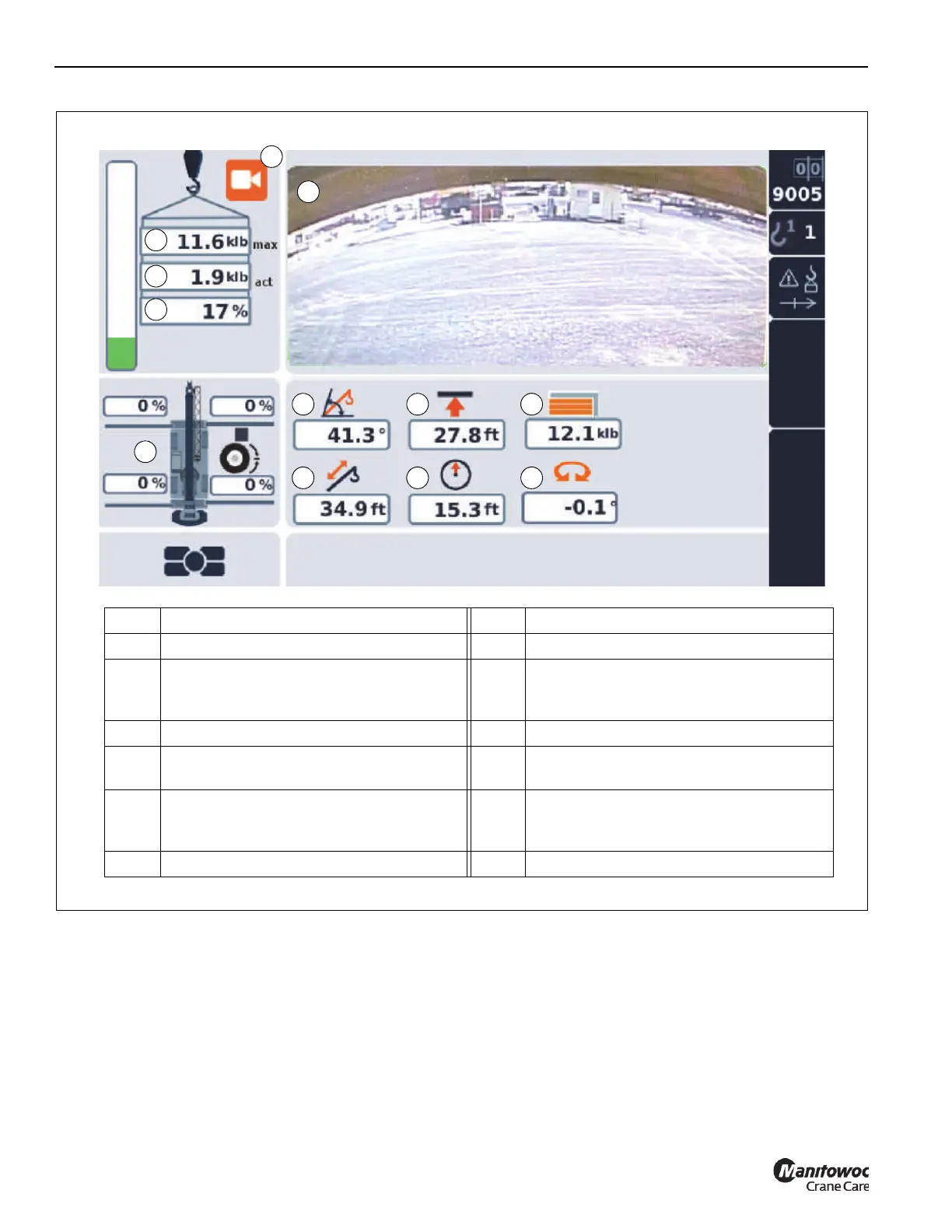

FIGURE 4-92
Item Description Item Description
1 Backup Camera View On/Off Toggle icon 7 Boom Angle
2
Maximum Capacity
(for the Current Crane Configuration/Load
Chart Code Number)
8 Boom Tip Height
3 Actual Load 9 Counterweight
4
Actual Load as a Percentage of Maximum
Capacity
10 Boom Length
5
Outrigger Position as a Percentage
(Fully Retracted = 0%, Mid-Extend = 50%,
Fully Extended = 100%)
11 Load Radius
6 Back Up Camera View 12 Swing Angle
1
3
5
2
4
6
10
987
1211
9219
