Grove Published 3-23-2020, Control # 654-04 6-23
GRT655/655L OPERATOR MANUAL LUBRICATION AND MAINTENANCE
Item
Lube Point
Description
Figure No.
Approved
Lubricant
Lube Capacity Lube Interval Application
Boom
NOTE: Crane Setup: Machine shall be set up on firm level surface with fully extended outriggers and a 5579 kg
(12,300 lb) counterweight installed. Ensure crane is level.
• Boom must be directly over the front with house lock engaged.
• Fully retract the boom and set boom angle to 0°. Remove the quick reeve pin on the boom nose, remove any reeved wire
rope laying it off to the right side of the boom and place the rigging down on the ground in front of the crane. The boom
should have no load on it.
• At 0° boom angle, fully extend the boom to enable accessibility to the boom grease zerks. During boom extending,
function the RCL bypass switch in order to enable the boom to proceed beyond the RCL limit to fully extended.
• After greasing is completed, fully retract the boom and then reinstall/reeve the rigging and wire rope that was temporarily
removed.
80
Hook Block
Swivel Bearing
Figure 6-11 A
Until grease
extrudes
250 hours or 3 months 3 grease fittings
82 Overhaul Ball
Figure 6-11 A
Until grease
extrudes
250 hours or 3 months 1 grease fitting

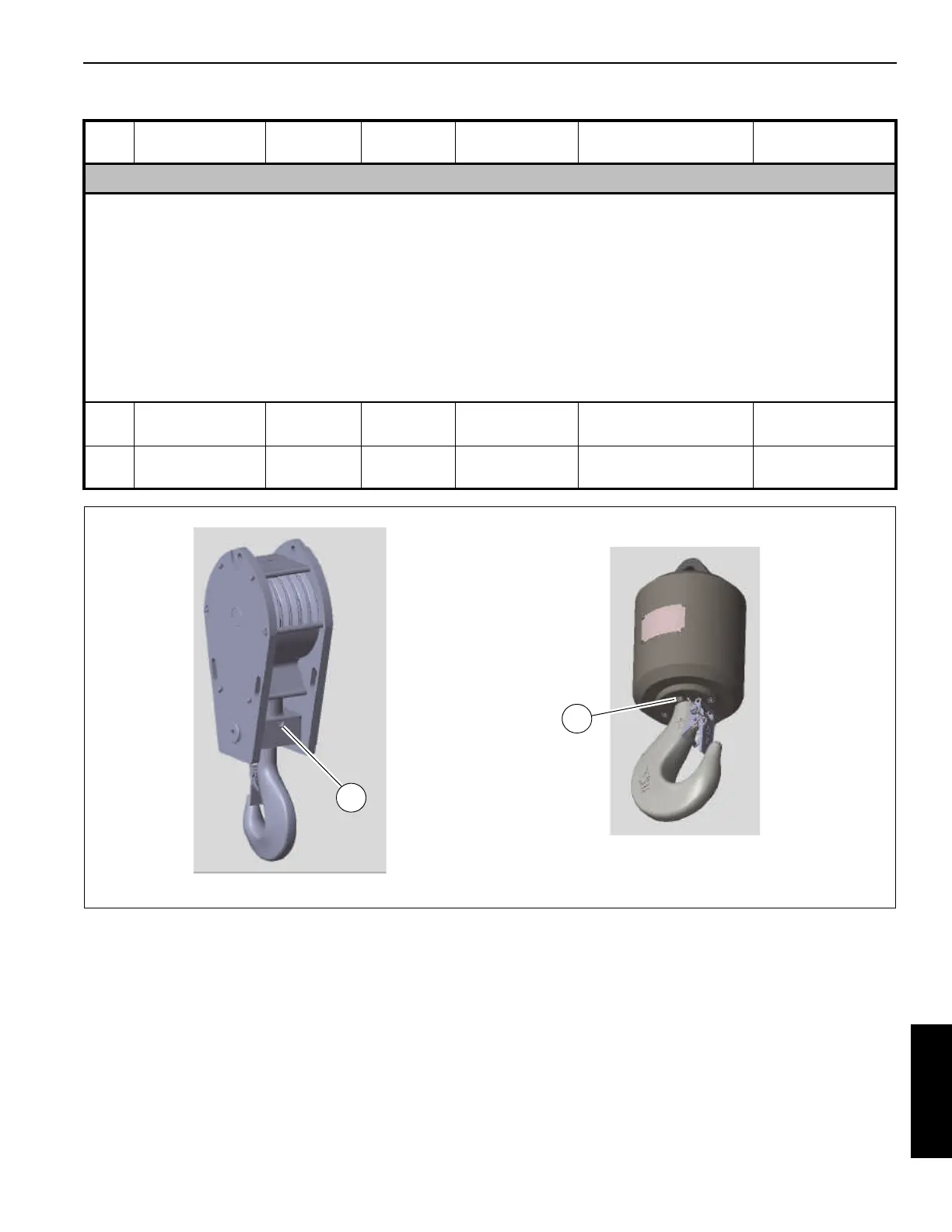

FIGURE 6-11
9030-11
9030-12
80
82
