5-34 Published 3-23-2020, Control # 654-04
SET-UP AND INSTALLATION GRT655/655L OPERATOR MANUAL
6. Reinstall the pin and retaining clip (Figure 5-39).
7. Connect the boom extension base section
anti-two-block cable end connector to the boom
extension stinger section anti-two-block cable end
connector (1, Figure 5-40).
Retracting
1. Extend and set the outriggers and swing the boom over
the front of the crane.
2. Lower the boom to below horizontal.
3. Disconnect the boom extension base section
anti-two-block cable end connector from the boom
extension stinger section anti-two-block cable end
connector. Stow the cable end connectors in their
respective stowage clips (1, Figure 5-41).
4. Remove the pin (1, Figure 5-42) securing the
telescoping section to the base section.
.,
5. Using two people, slide the telescoping section into the
base section until the holes in the front of the telescoping
section align with the holes in the tip of the base section.

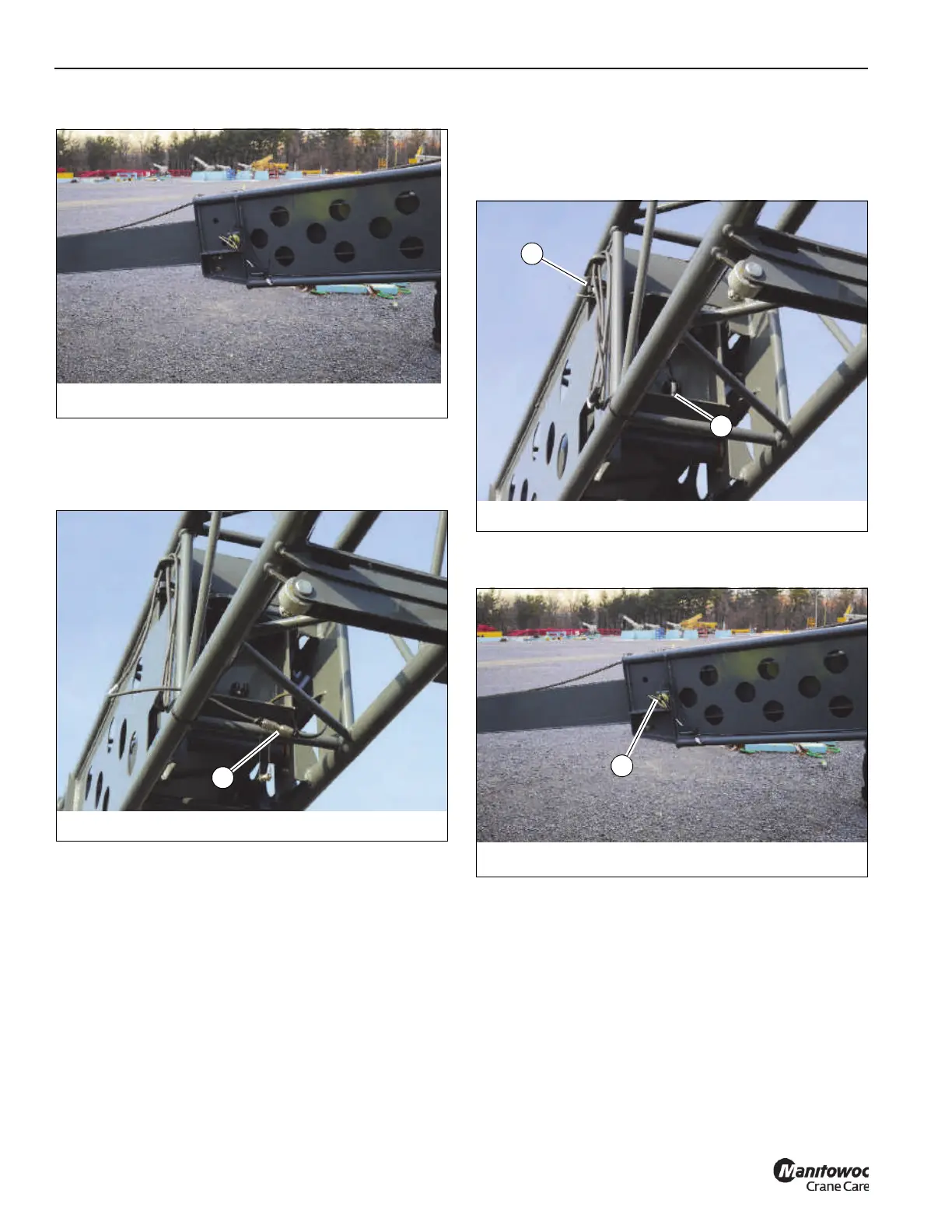

FIGURE 5-39
9216-5
FIGURE 5-40
9216-16
1
FIGURE 5-41
9216-17
1
1
FIGURE 5-42
1
9216-5
