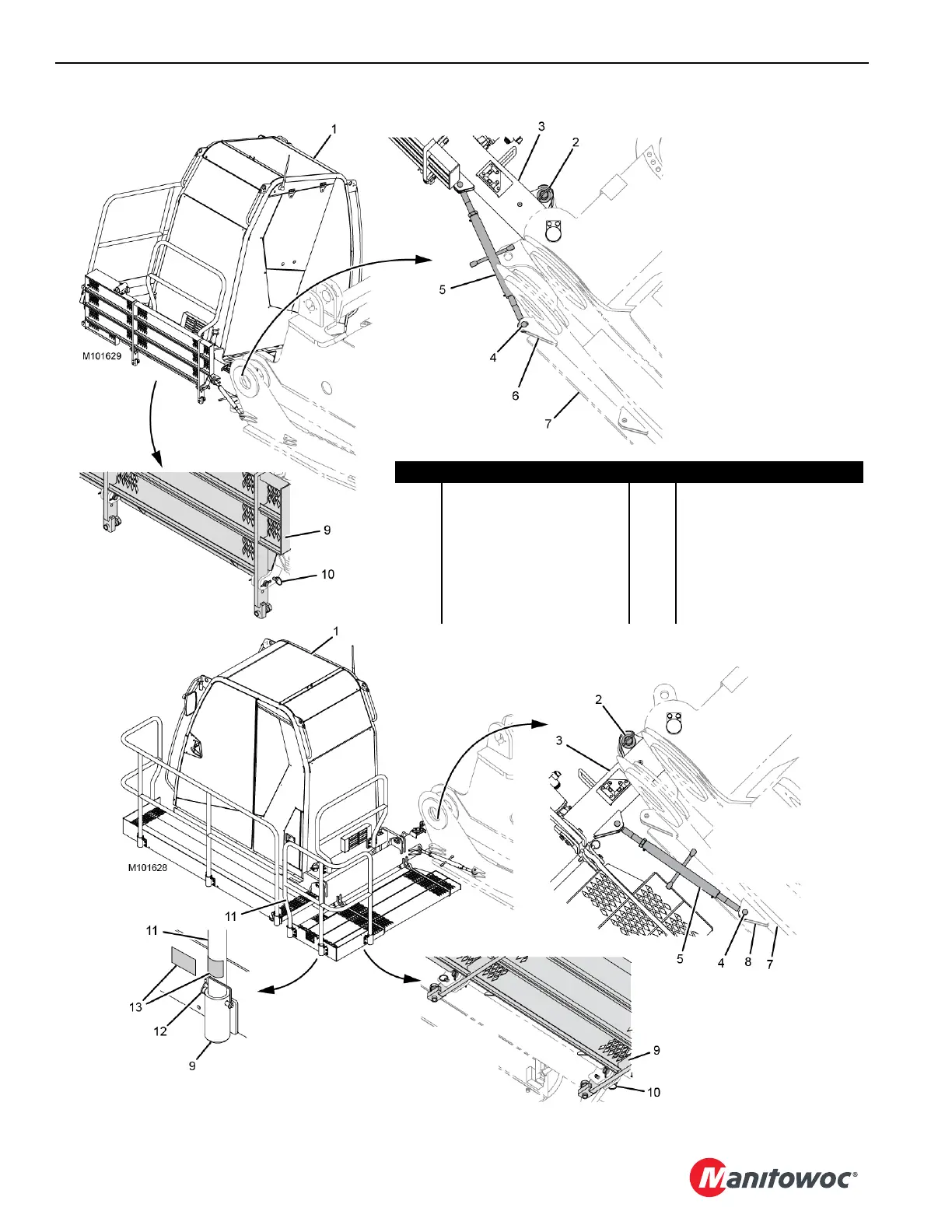

SETUP AND INSTALLATION MLC300 OPERATOR MANUAL
4-156
Published 11-20-19, Control # 234-19
Item Description Item Description
1 Operator Cab 8 Operating Lugs
2 Hitch Pin with Hair-Pin Cotter 9 Cab Rear Platform
3 Support Arm 10 Quick-Release Pin (2)
4 Pin with Hair-Pin Cotter 11 Handrail
5 Turnbuckle 12 Safety Pin (3)
6 Shipping Lugs 13 Identification Numbers
7 Rotating Bed
Figure 4-103
View A
SHIPPING
View C
SHIPPING
View E
View D
OPERATING
View B
OPERATING
