SET-UP AND INSTALLATION MLC650 VPC-MAX™ OPERATOR MANUAL
4-108
Published 04-06-18, Control # 231-14

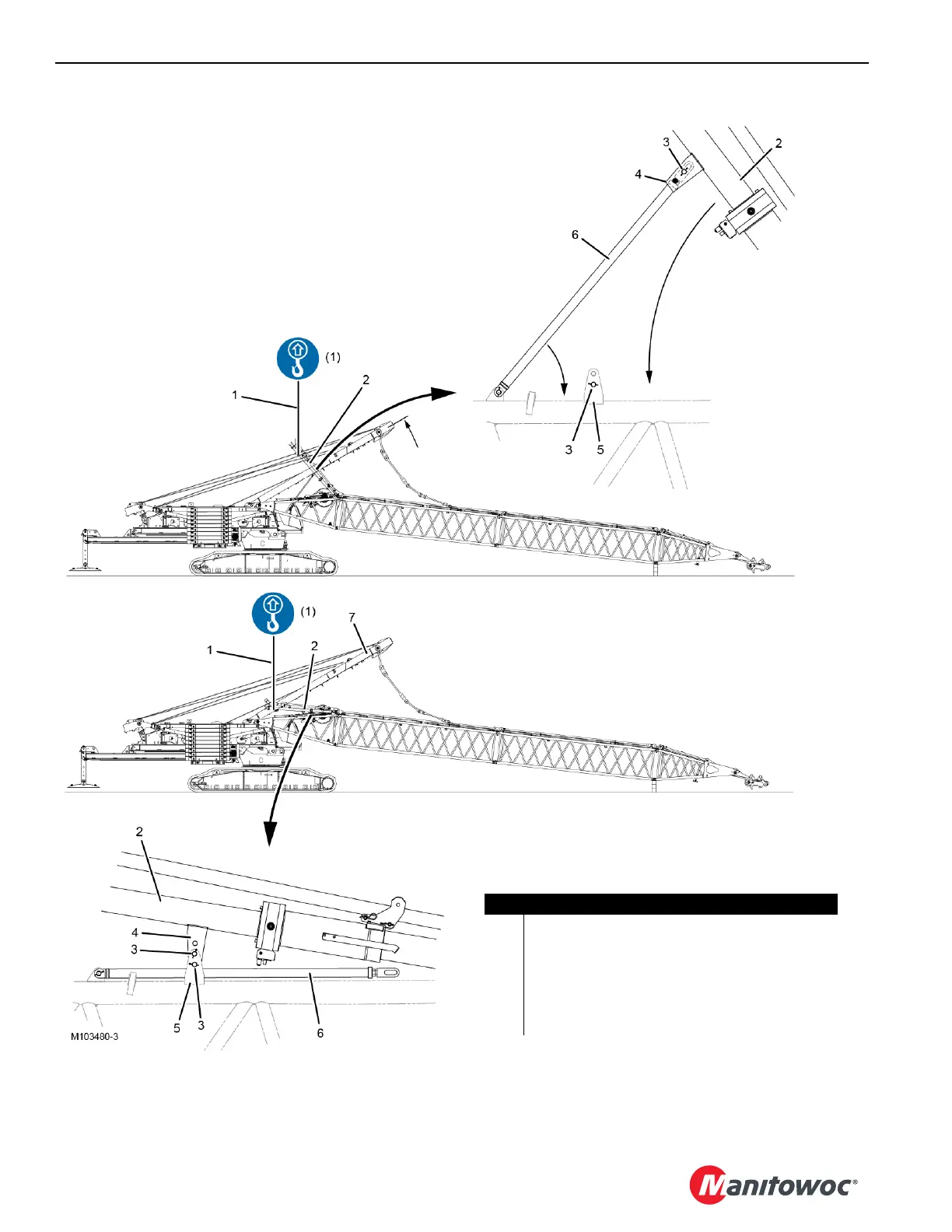

FIGURE 4-89
Item Description
1 SL 4 Sling – 3,80 m (12.50 ft), 11 340 kg (25,000 lb)
2 Mast Stop (qty 2)
3 Pin with Cotter Pins (qty 4)
4 Bracket (qty 2)
5 Bracket (qty 2)
6 Mast Stop Strut (qty 2)
View A
STORED POSITION
View B
WORKING POSITION
CAUTION
150° Maximum
