ASSEMBLY

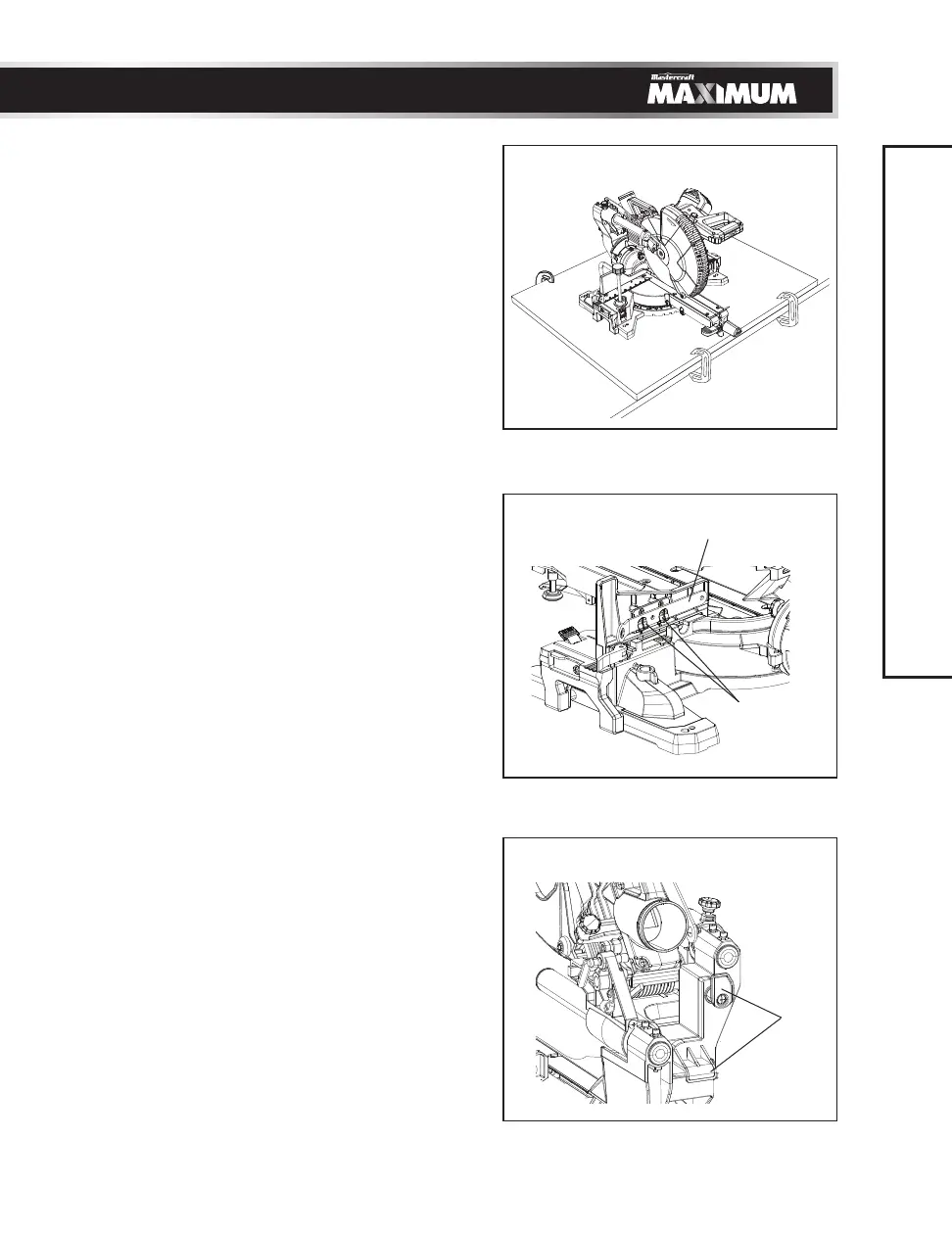

Fig. 12
• For portable use, place the saw on a 3/4"
thick piece of plywood. Bolt the base of the
mitre saw securely to the plywood using the
mounting holes on the base. Use C-clamps
to clamp this mounting board to a stable
work surface at the worksite. (Fig. 12)
NOTE: If a mitre saw stand is used, please
follow all instructions shown in that product’s
instructions for proper mounting.
SAW BLADE WRENCH STORAGE
(Fig. 13)
For convenient storage and prevention of
loss, there is a bracket (1) set on the back
of the right slide fence for storing the blade
wrench (2) when not in use.
POWER CORD STORAGE (Fig. 14)
For convenience and to prevent damage to the
power cord when the mitre saw is not in use or
is in transportation, use two brackets (1) set on
rear side of the saw for storing power cord.
NOTE: This saw has quick−release power
cord storage. Simply shift the upper bracket
downward and the power cord will be released.
Fig. 13
Fig. 14
1
2
1
