46
model no. 055-6768-8 | contact us 1-800-689-9928
OPERATION

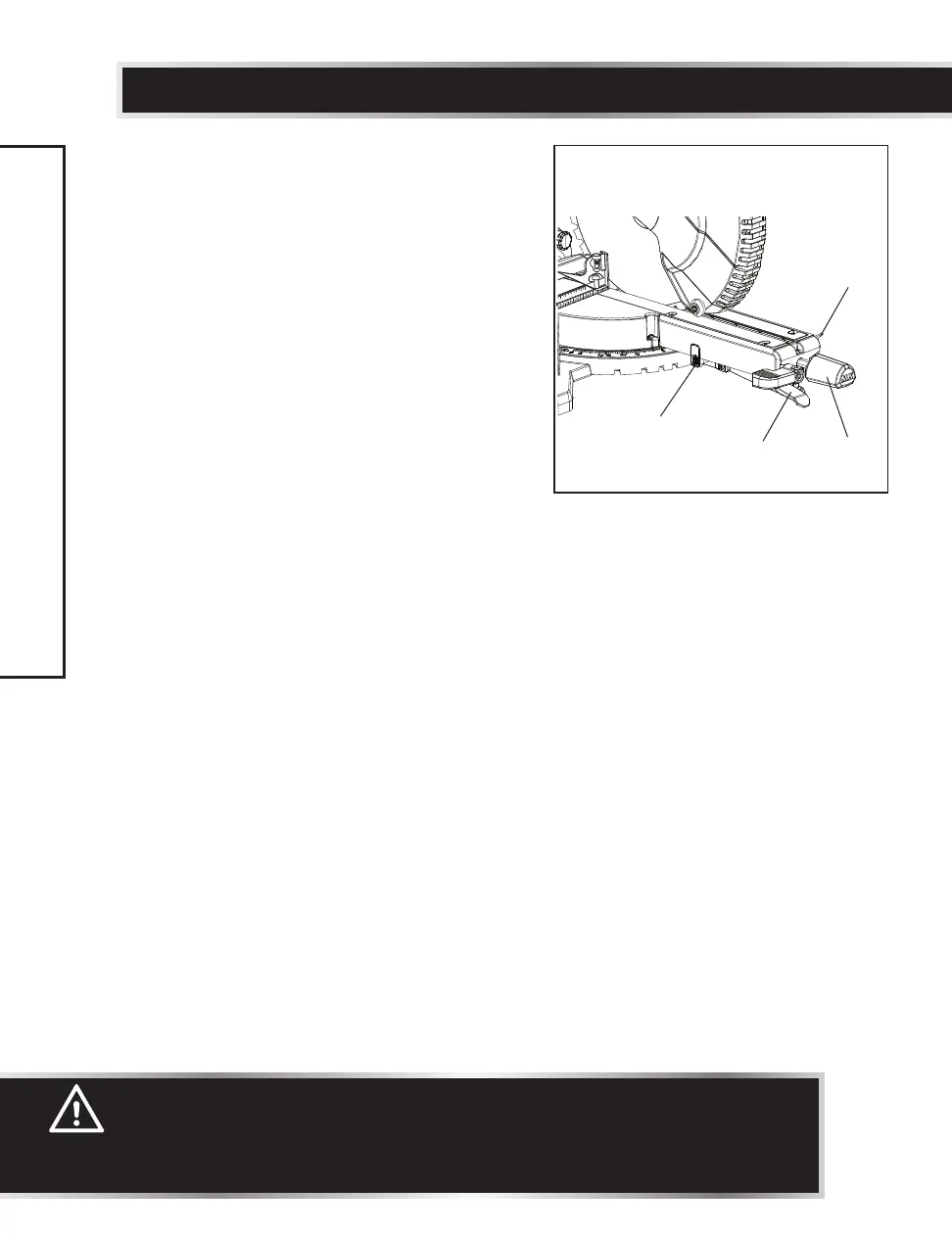

MITRE DETENT OVERRIDE (Fig. 39)
The mitre detent override allows for the table
to be micro adjusted, disengaging the positive
detent stops feature. When a required mitre
angle is close to a positive detent stop, this
override prevents the wedge on the mitre arm
from slipping into that detent slot on the base.
• Unlock the mitre table by pulling up on the
quick-cam mitre locking lever (1).
NOTE: The mitre handle (2) does not lock or
unlock the table.
• While holding the mitre handle (2), pull the
positive stop locking lever (3) upward and
press the override lock (4) IN, then release
the positive stop locking lever (3) while
holding the override lock (4) in. The detent
override is now engaged.
• Turn the table to the desired angle, secure
the table at the desired angle by pressing
the quick-cam mitre locking lever (1).
• To disengage the detent override, pull the
quick-cam mitre locking lever (1), pull the
positive stop locking lever (3) up. This will
release the override lock (4) and the table
will now stop at the positive detent angles.
BEFORE LEAVING THE SAW
• Never leave tool running unattended. Turn
power OFF. Wait for all moving parts to
stop.
• Make workshop childproof. Lock the shop.
Disconnect master switches. Store tool
away from children and other unqualified
users.
Fig. 39
2
3
4
1
WARNING:
To avoid injury from materials being thrown, always unplug the saw
to avoid accidental starting, and remove small pieces of material from
the table cavity. The table insert may be removed for this purpose, but
always reattach the table insert prior to performing a cutting operation.
