45
TM
OPERATION

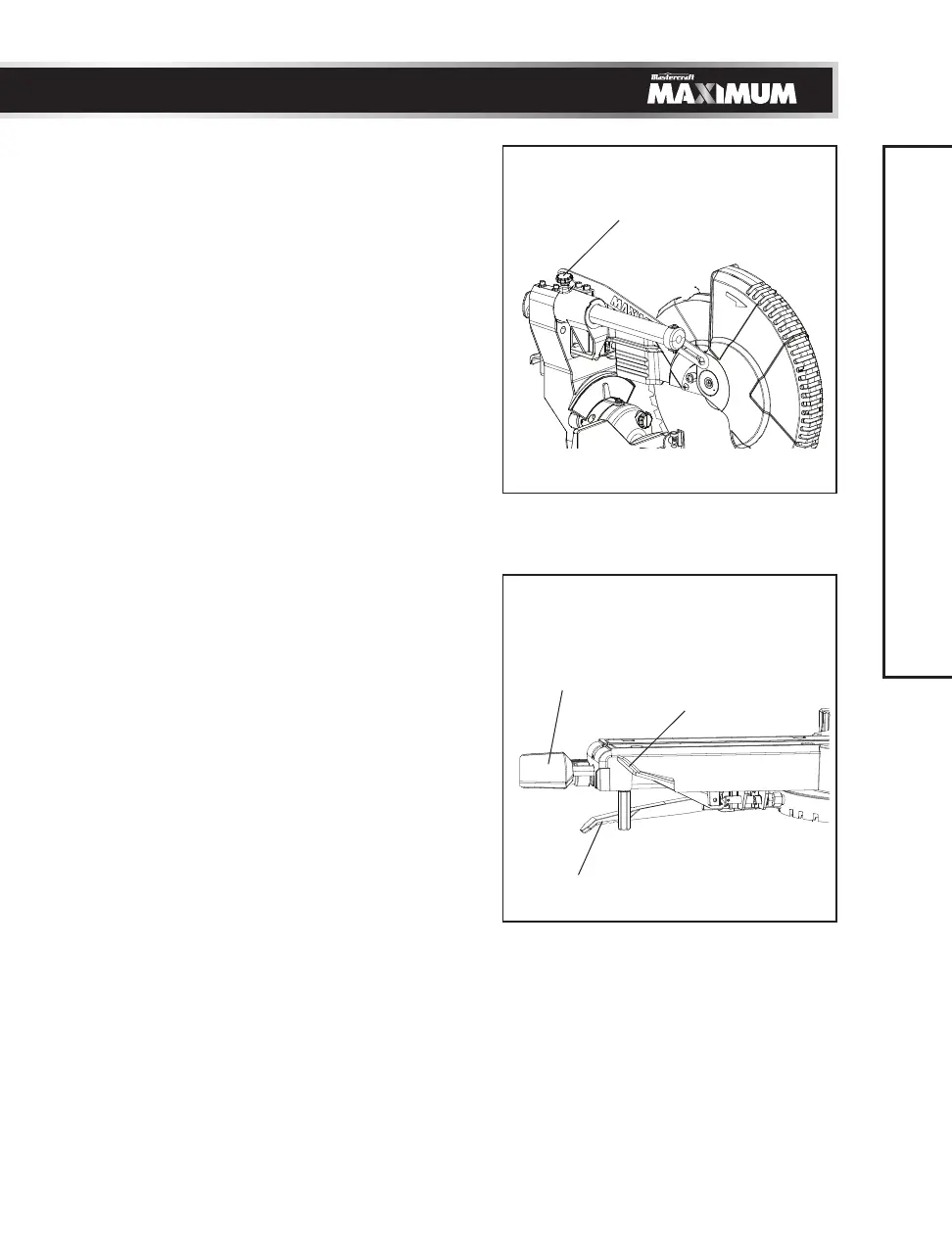

SLIDING CARRIAGE SYSTEM (Fig. 37)
• For chop cutting operations on small
workpieces, slide the cutting head assembly
completely towards the rear of the unit and
tighten the sliding carriage lock knob (1).
• To cut wide boards up to 12 1/4", the sliding
carriage lock knob (1) must be loosened to
allow the cutting head to slide freely.
QUICK-CAM MITRE TABLE LOCK
OPERATION (Fig. 38)
If required mitre angles are NOT one of the
nine positive stops, the mitre table can be
locked at any angle between these positive
stops by using the quick-cam mitre locking
lever.
• Unlock the mitre table by lifting up the
quick-cam mitre locking lever (1).
• While holding the positive stop locking
lever (2) up, grasp the mitre handle (3) and
move the mitre table left or right to the
desired angle.
• Release the positive stop locking lever (2).
• Press down on the quick-cam mitre locking
lever (1) until it locks the mitre table in
place.
NOTE: The quick-cam mitre locking lever
should lock the table and prevent it from
moving. If adjustment is needed, see the
section of “QUICK-CAM MITRE LOCKING
LEVER ADJUSTMENT”.
Fig. 37
1
Fig. 38
1
3
2
