49
TM
OPERATION

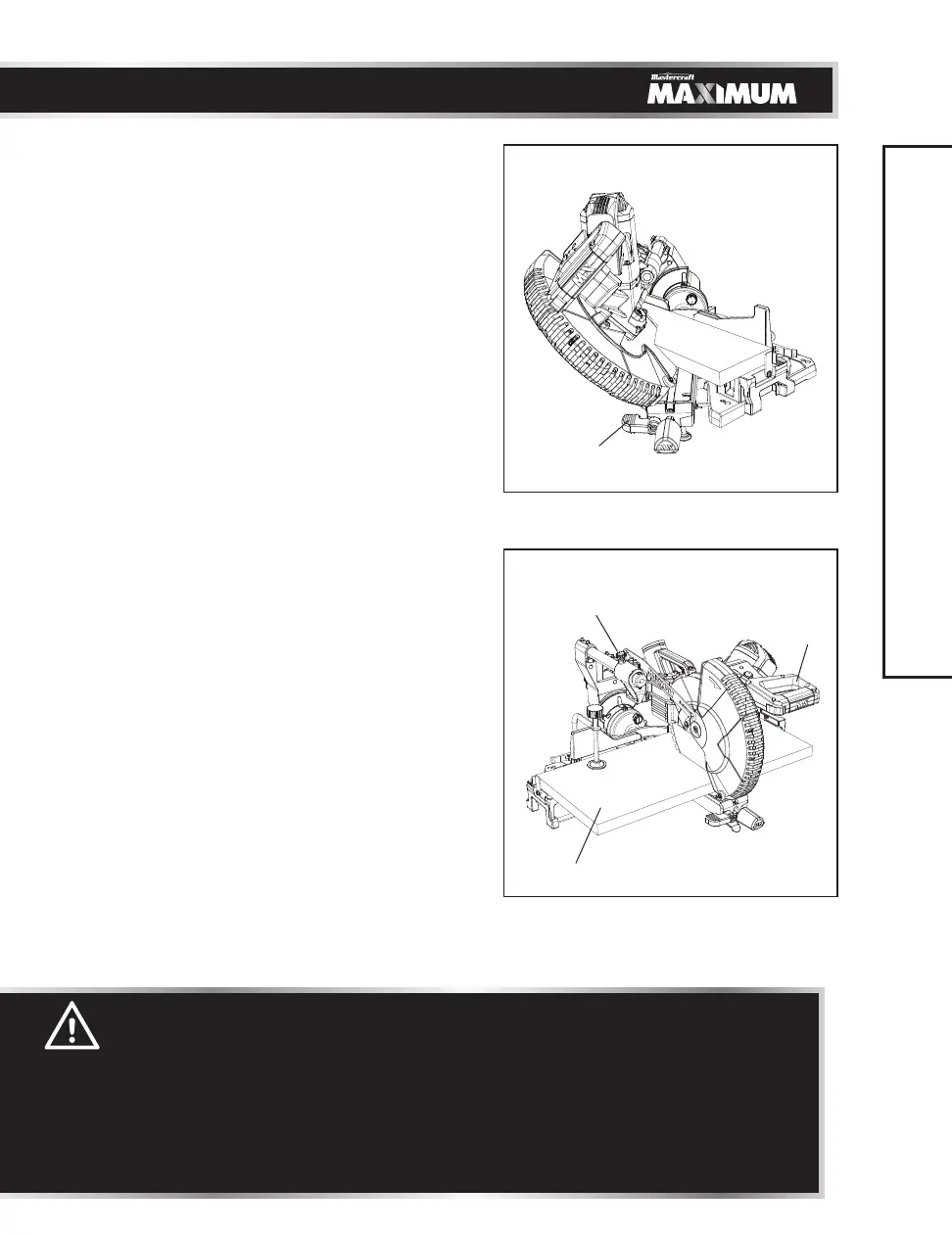

COMPOUND CUT (Fig. 43)
A compound cut is the combination of a mitre
and a bevel cut simultaneously.
• Extend the fence by sliding it out to the
required location or remove the sliding
fence if necessary. See “REMOVING OR
INSTALLING THE SLIDING FENCE.”
• Set the desired bevel angel using the bevel
locking handle (1).
• Set the desired mitre angle and lock into
position. See "MITRE CUT".
SLIDE CUTTING WIDE BOARDS UP TO
12 1/2" WIDE
To Slide Cut Wide Boards (Fig. 44)
• Unlock the sliding carriage lock knob (1)
and allow the cutting head assembly to
move freely.
• Set both the desired bevel angle and/or the
mitre angle and lock into position.
• Use a hold-down clamp to secure the
workpiece.
• Turn the laser guide on and position the
workpiece on the table for pre-alignment
of cutting.
Fig. 43
1
Fig. 44
1
2
3
WARNING:
To avoid injury:
• Never pull the cutting head assembly and spinning blade towards
you during the cut. The blade may try to climb up on top of the
workpiece, causing the cutting assembly and spinning blade to kick
back, forcefully. The cutting head assembly should be drawn back
completely then pushed forward when sawing.
• Let the blade reach full speed before cutting. This will help reduce
the risk of a thrown workpiece.
