MasterCraft MAXIMUM 055-6768-8 User Manual

32
model no. 055-6768-8 | contact us 1-800-689-9928
ADJUSTMENTS

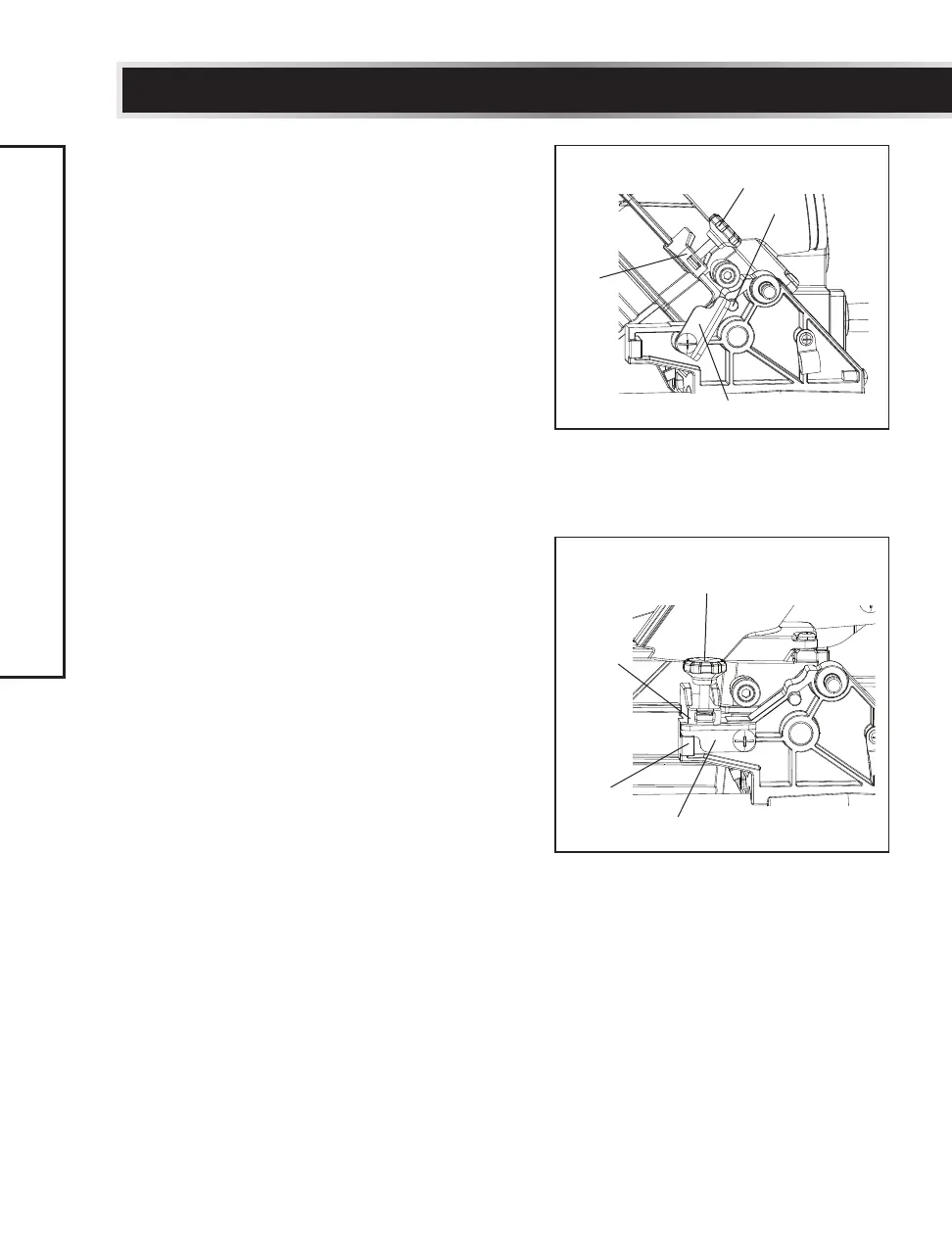

Fig. 23
ADJUSTING CUTTING DEPTH (Fig. 23, 24)
The maximum depth travel of the cutting head
was set at the factory.
Setting the maximum width travel of the
cutting head. Follow the steps below (Fig. 23):
• Turn the stop knob (1) counter-clockwise
until the stop knob is not protruding out of
the stop block (2) bottom while moving the
cutting head upward.
• Rotate the stop plate (3) clockwise until it
touches the stop rod (4).
• Recheck the blade depth by moving the
cutting head front to back through the full
motion of a typical cut along the control
arm.
Setting the maximum height travel of the
cutting head. Follow the steps below (Fig. 24):
• Turn the stop knob (1) counter-clockwise
until the stop knob is not protruding out of
the stop block (2) bottom while moving the
cutting head upward.
• Rotate the stop plate (3) counter-clockwise
to touch the stop seat (5).
• Make sure the stop block (2) touches the
stop plate (3) completely.
Setting the cutting depth (Fig. 24):
The depth of cut can be preset for even and
repetitive shallow cuts.
• Move the cutting head down until the teeth
of the blade are at the desired depth.
• While holding the upper arm in that
position, turn the stop knob (1) until it
touches the stop plate (3).
• Recheck the blade depth by moving the
cutting head front to back through the full
motion of a typical cut along the control
arm.
Fig. 24
2
1
4
3
2
5
3
1
