Electrical connection
64
Connection of the mains connection cable in the machine

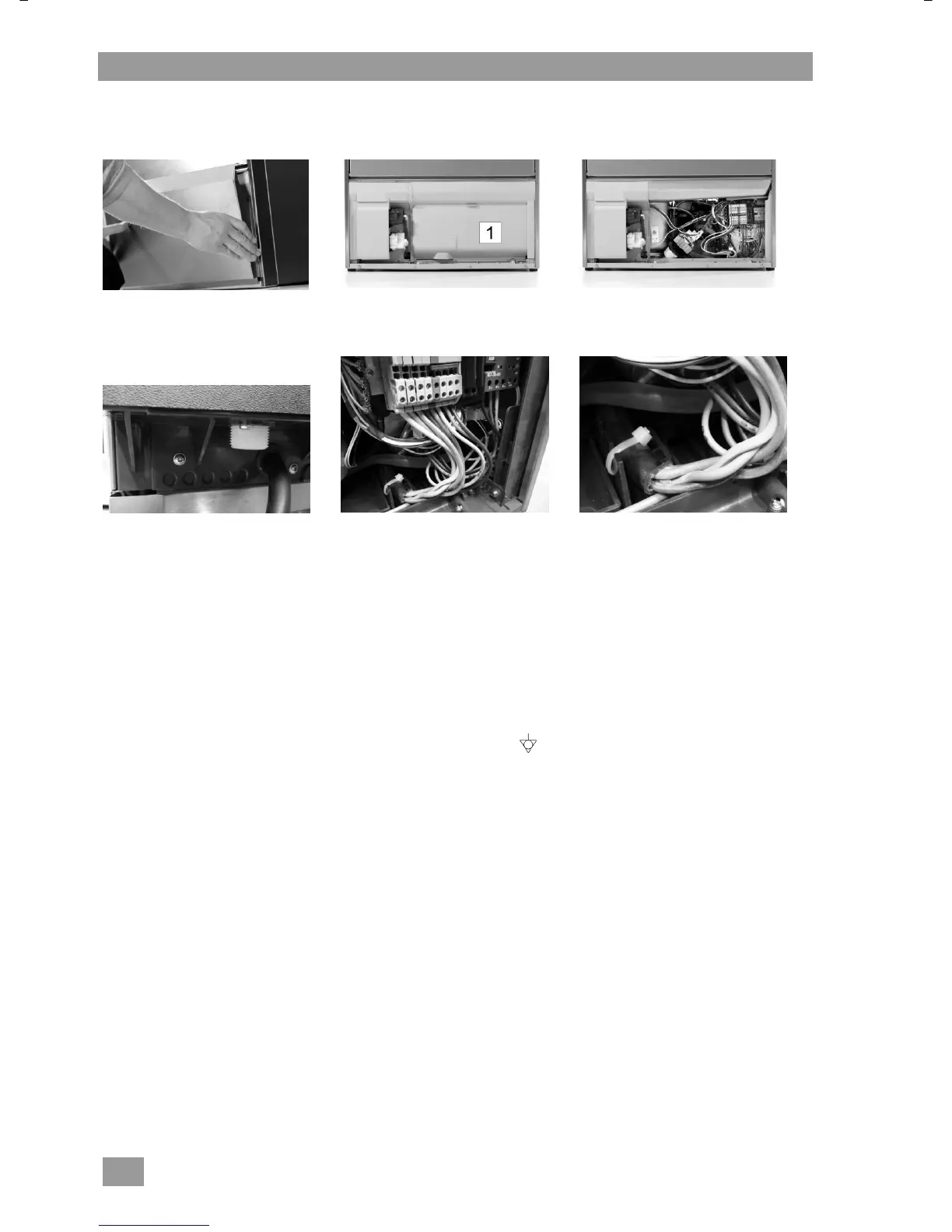

Exemplary images for a PG 8166
Remove the front cladding
PG 8164: additionally remove the
right side cladding
Remove the bulkhead (1) towards the electric installation compartment
Insert the mains connection cable
through the backside of the ma-
chine and guide it to the connec-
tion terminals at the front
Connect the mains connection
cable to the terminals PE to N
according to the connection
scheme ( 17.3).
Strain relief
PG 8165, PG 8166, PG 8169
Attach the mains cable to the
mounting plate with a cable tie for
strain relief.
PG 8164
Tighten the screwed cable con-
nection at the backside of the
machine.
17.2 Establishing an earth connection
There is a screw connection point marked with the earth symbol at the back of the machine, to which the
earth lead must be connected.
Connect the machine into the on-site equipotential bonding system.
17.3 Connection diagram
The dishwashing machines PG 8164-69 can be connected to both 3-phase alternating current and 1-phase
alternating current. The machine contains a connection diagram which indicates the terminals to which the
mains connection cable has to be connected. The boiler heating element is already connected. However,
bridges still need to be set so that the power supply's fuse rating is not exceeded.
