Mimosa Backhaul Mounting & Grounding
Copyright © 2014 Mimosa Page 60
Mounting and Grounding the B5
This process ensures that the radio is securely attached to a mast/pole up to 90 mm (3.5 inches) in
This process ensures that the radio is securely attached to a mast/pole up to 90 mm (3.5 inches) in
diameter, and grounded to protect against electrical discharge.
diameter, and grounded to protect against electrical discharge.
Follow these steps to mount and ground the B5 Radio.

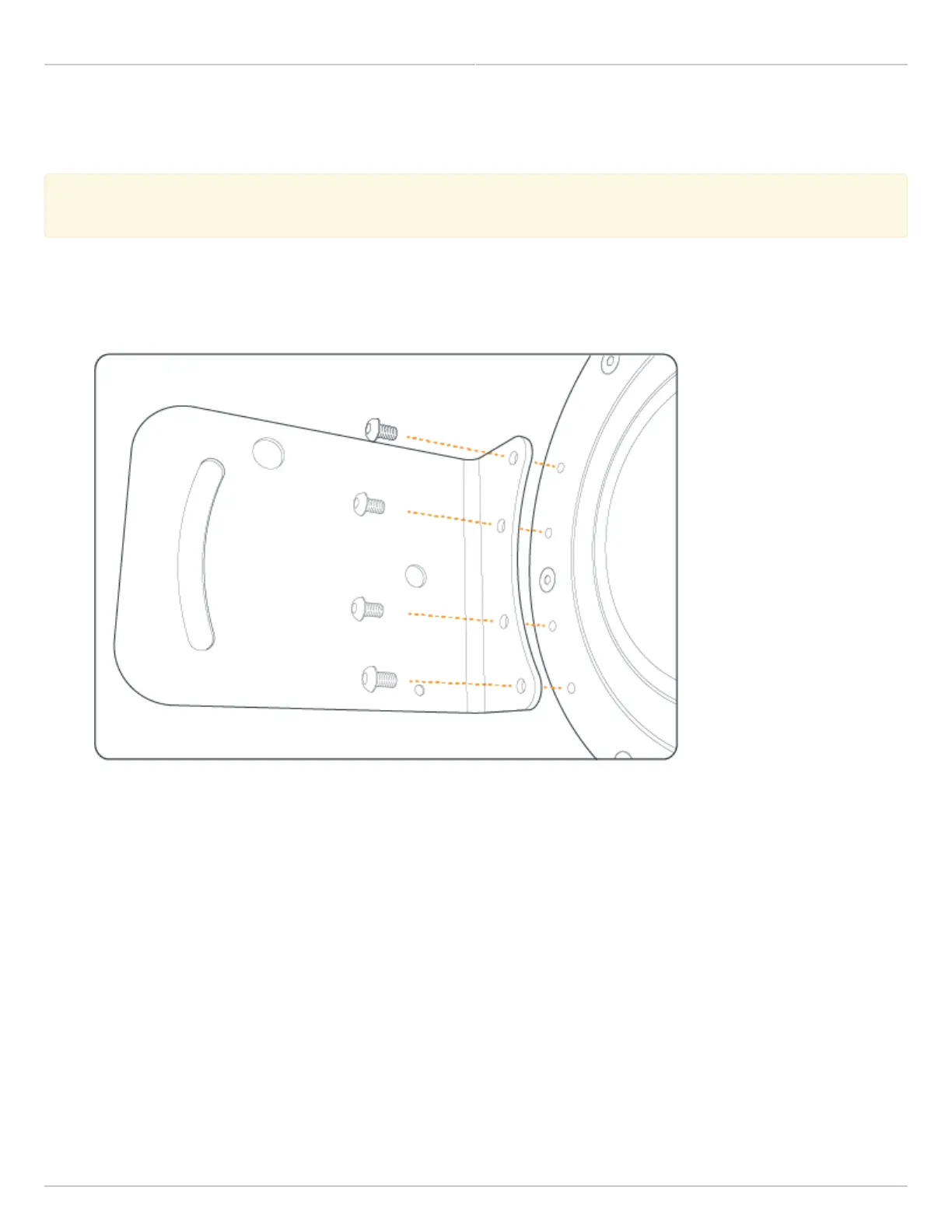

Using a #4 Allen wrench (eight inches or longer recommended), attach the Bracket Assembly to the back of1.
the B5 with four provided screws.
Remove the two nuts from the same side of the Pole Mount. Feed the bolts through the Bracket Assembly with2.
one bolt through the fixed hole, and the other bolt through the slotted arc. Thread the two nuts onto the bolts
on the outside of the Bracket Assembly, and then tighten loosely (some adjustment is required in a later step).
