Mounting and Grounding the B5c
This process ensures that the radio is securely attached to the tower and is grounded to protect against
This process ensures that the radio is securely attached to the tower and is grounded to protect against
electrical discharge.
electrical discharge.

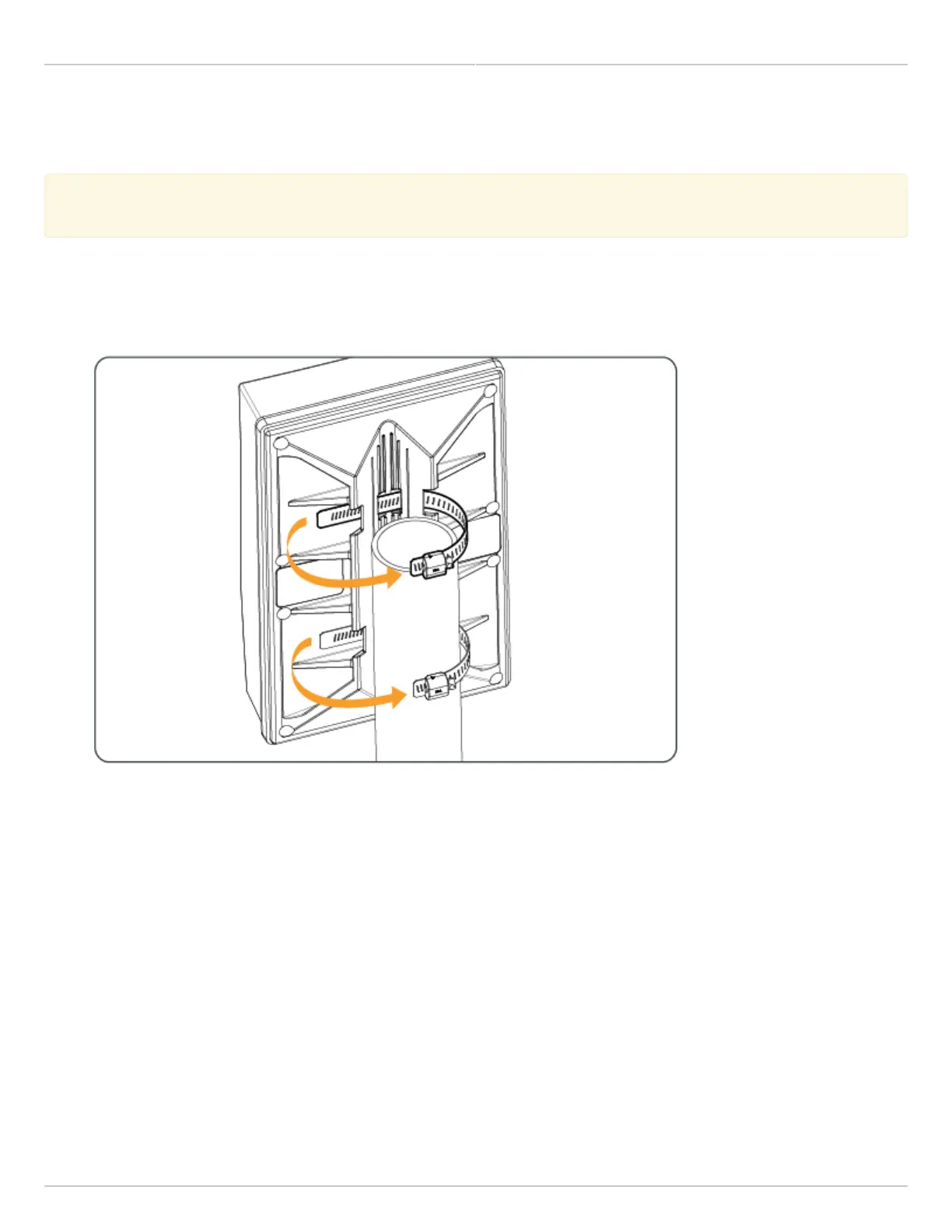

Insert the open end of each provided Hose Clamp through the slots on the back of the B5c, around the pole1.
and then back into the worm gear (screw portion) of the Hose Clamp. Use a medium sized flat screwdriver to
tighten the Hose Clamp to the pole.
Attach a 6 mm
2
(10 AWG) ground wire with a maximum length of 1 m (3.3 feet) to the grounding hole on the2.
back of the B5c and a suitable grounding location on the tower or structure. The provided grounding screw is
M5 x 6mm.
