5.10.6.3 Smart 3D Image Viewing
In VR viewing, the system supports the following functions:
z Render setting.
z B-mode parameter adjustment.
z Setting the display format.
z Viewing MPR.
z Image zooming.
z Rotation.
z Image editing.
z VR parameter adjustment.
Scanning plane and probe movement
Move the probe across the body surface.

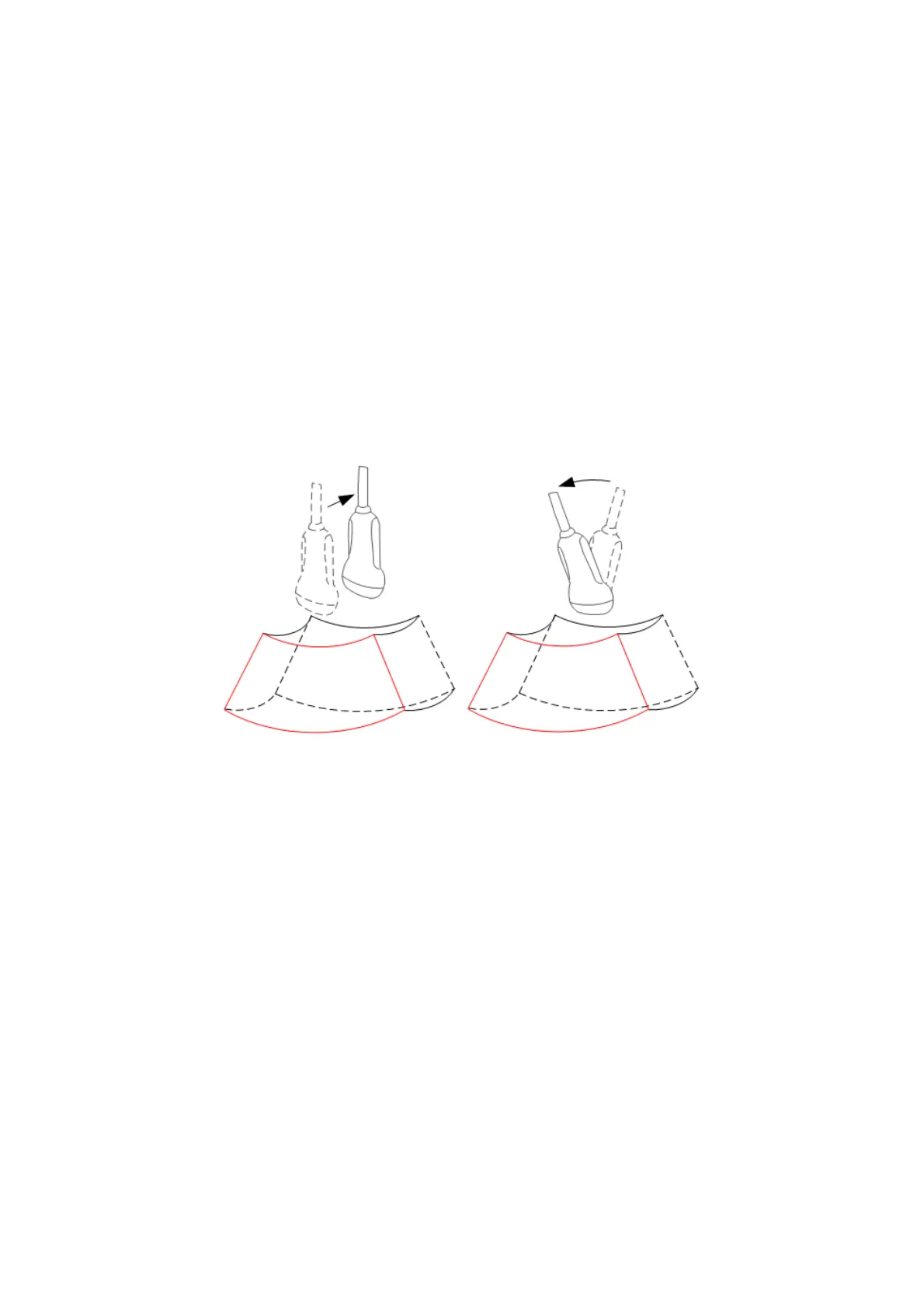

The arrow in the figure below indicates the movement of the probe (you can move
the probe in the opposite direction to the arrow.).
5.10.6.4 Image Saving and Reviewing in Smart 3D
Image saving
z In 3D viewing mode, press the single image Save key (Save Image to hard drive)
to save the current image to the patient information management system in the
set format and image size.
z Save clip: in 3D viewing mode, press the user-defined Save key (Save Clip
(Retrospective) to hard drive) to save a CIN-format clip to the hard drive.
Image review
Open an image file to enter the image review mode. In this mode, you can perform
the same operations as in VR viewing mode.
5.10.7 iPage (Multi-Slice Imaging)
iPage is a new “Visualization” mode for displaying sectional images. The data is
presented as slices through the data set, which are parallel to each other.
iPage is an option and is not available for Smart 3D images.
5.10.7.1 Basic Procedures for iPage
1. Acquire 3D/4D data.
