Mindray DC-45 User Manual

2-10 System Overview

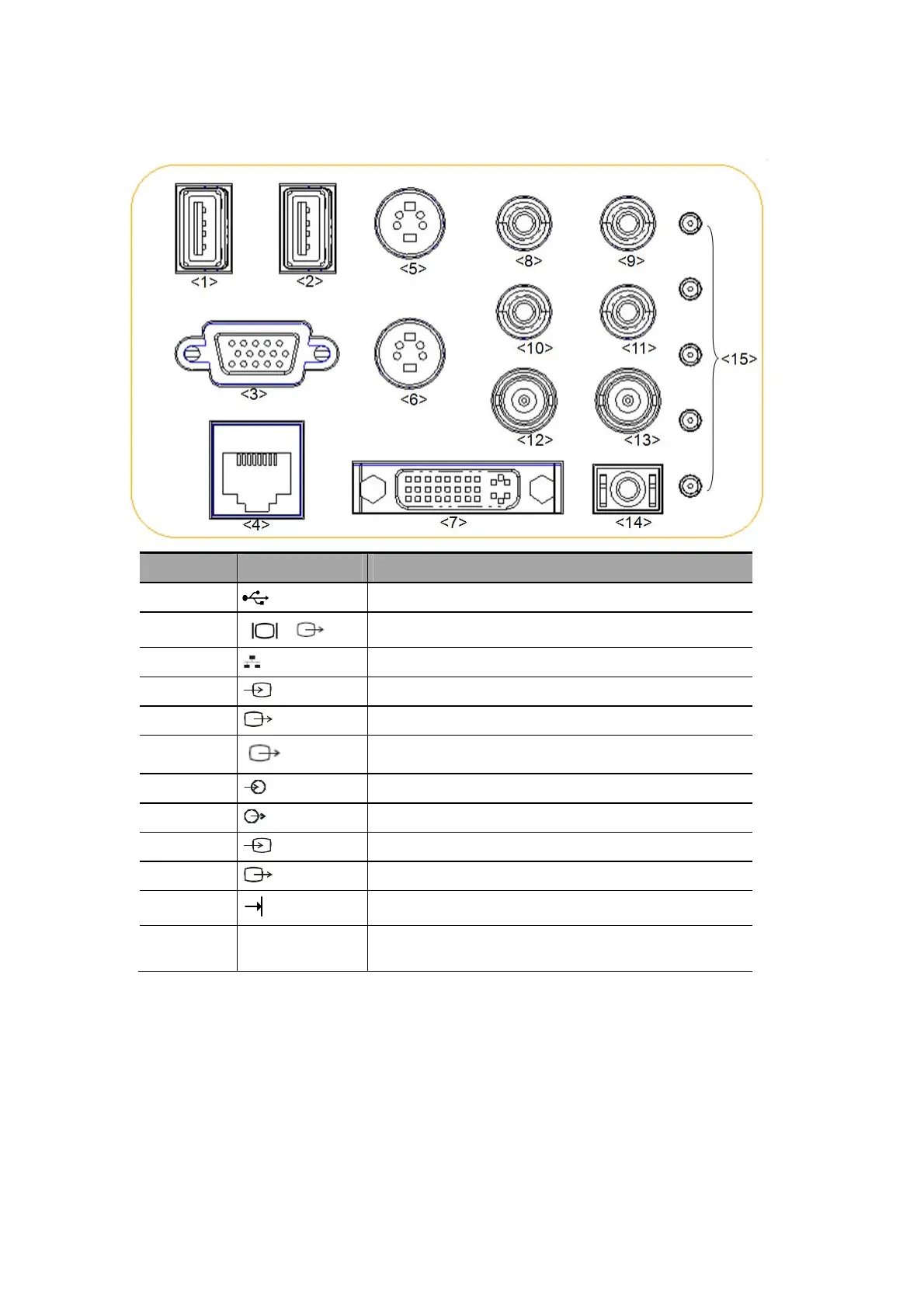

2.7 I/O Panel
No. Symbol Function
<1><2>
USB port, used for connecting USB devices.
<3> VGA signal output; connects a monitor or projector.
<4>
Ethernet interface.
<5>
Separate video input (reserved).
<6>
Separate video output.
<7>
DVI signal output.
<8><9>
Audio signal input port, left channel(reserved).
<10><11>
Audio signal output port, right channel.
<12>
Used for
composite video input (reserved).
<13>
Used for
composite video output.
<14>
Remote interface for connecting video printer.
<15>
Malfunction
indication lights
Indicate the system’s malfunction.
