Mindray DC-45 User Manual

System Preparation 3-7

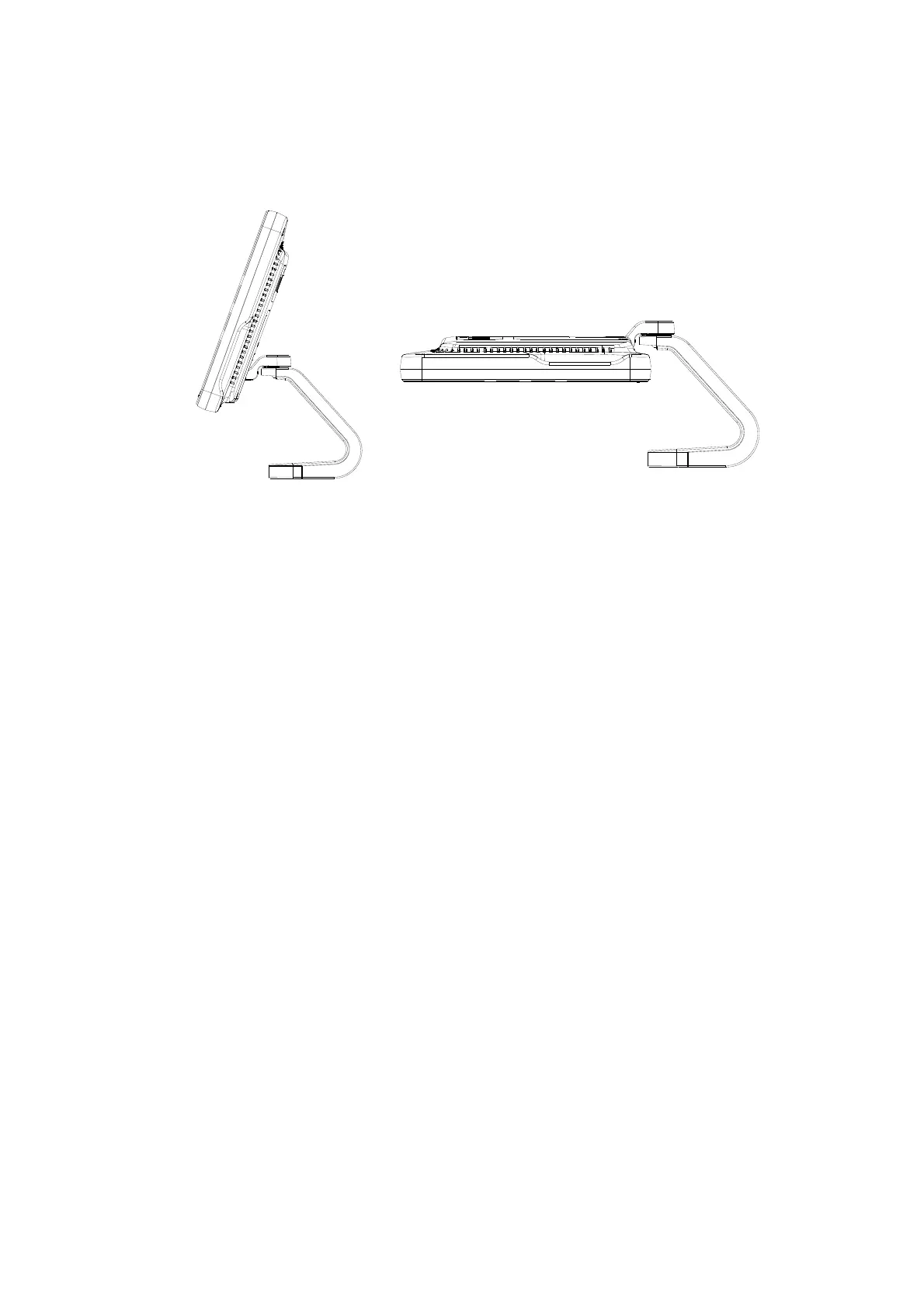

 Tilt the monitor
When positioned vertically, the monitor can be tilted 20° backward and can be tilted
forward to a horizontal position. When transporting or moving the system, keep the
monitor in the horizontal position, as shown below:
3.4.2 Adjusting Brightness/Contrast on the Monitor
Monitoring the brightness and contrast adjustment is one of the most important factors for
proper image qualities. If set incorrectly, the gain, TGC, dynamic range or even acoustic
output have to be changed more often than necessary to compensate.
The adjusting buttons are shown as follows:
 Brightness adjustment:
<1>, <2> refer to the brightness control keys with a sun marked at the top. Key <1>,
marked with a “-” on the top, can be used to decrease the brightness, while key <2>,
marked with a “+” on the top, can be used to increase the brightness.
 Contrast adjustment:
<3>, <4> refer to the contrast control keys with a moon marked at the top. Key <3>,
marked with a “-” on the top, can be used to decrease the contrast, while key <4>,
marked with a “+” on the top, can be used to increase the contrast.
