3-8 System Preparation
NOTE:
On the monitor
, the brightness adj
ustment comes before contrast.
After
readjusting the monitor
’s contrast
and brightness, adjust all preset and
peripheral settings.

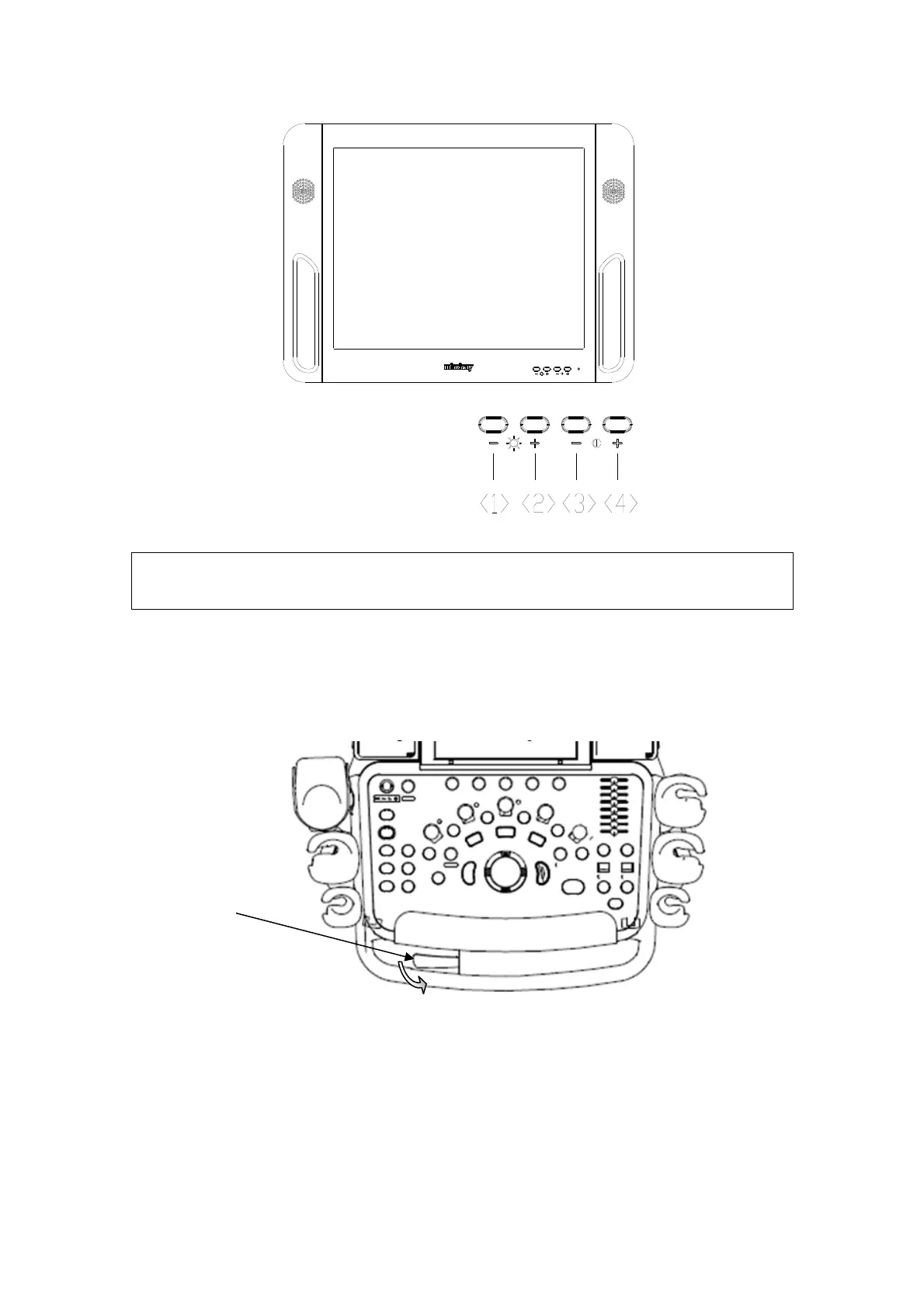

3.4.3 Control
Panel
Position
Adjustment
Press the control lever downwards for about 30°
to rotate the control p
anel ±90°. Press
the lever downwards for about 60° to move the control panel upwards or downwards.
Control
lever
51
53
