Mindray DC-45 User Manual

System Overview 2-17
2.11 Symbols

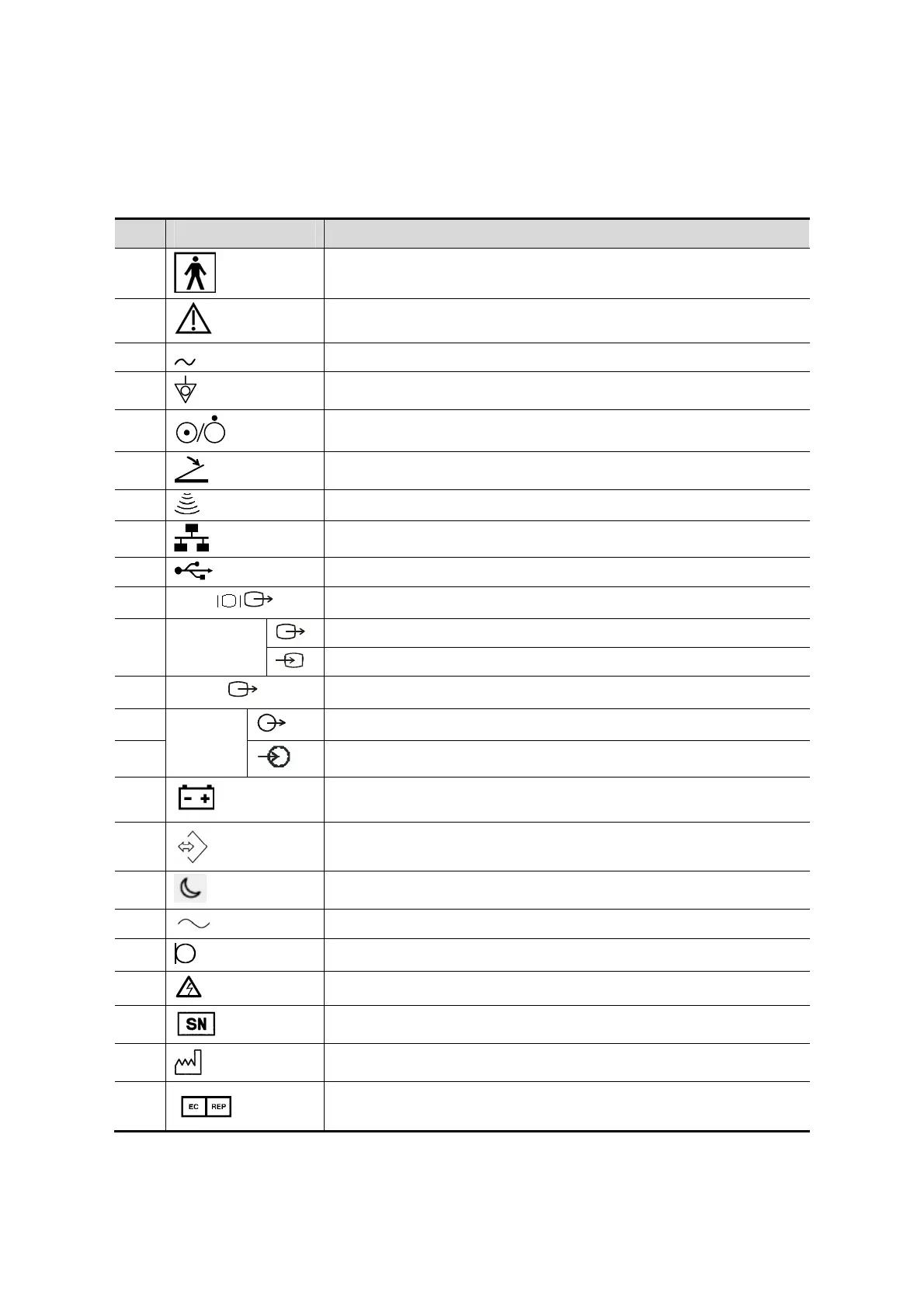

This system uses the symbols listed in the following table, and their meanings are explained
as well.
No. Symbol Description
1 Type-BF applied part
2 Caution
3
AC (Alternating current)
4
Equipotentiality
5
Power button
6
Foot switch
7 Transducer sockets
8
Network port
9
USB port
10
VGA
Used for VGA output.
11 S-VIDEO
Reserved, used for separate video output
Separate video input, reserved.
12
DVI-D
DVI-D signal output
13
AUDIO
Used for stereo audio output
14
Used for stereo audio input
15
Battery Status Indicator
16
Hard disk status indicator
17
Standby status indicator
18
AC power supply status indicator
19
Microphone input jack
20
Dangerous voltage
21 Product serial number
22 Manufacture date
23
Authorized representative in the European Community
