Orthopedics 11-3
HIP-Graf
The measurement items, results and procedures are the same with “HIP”.

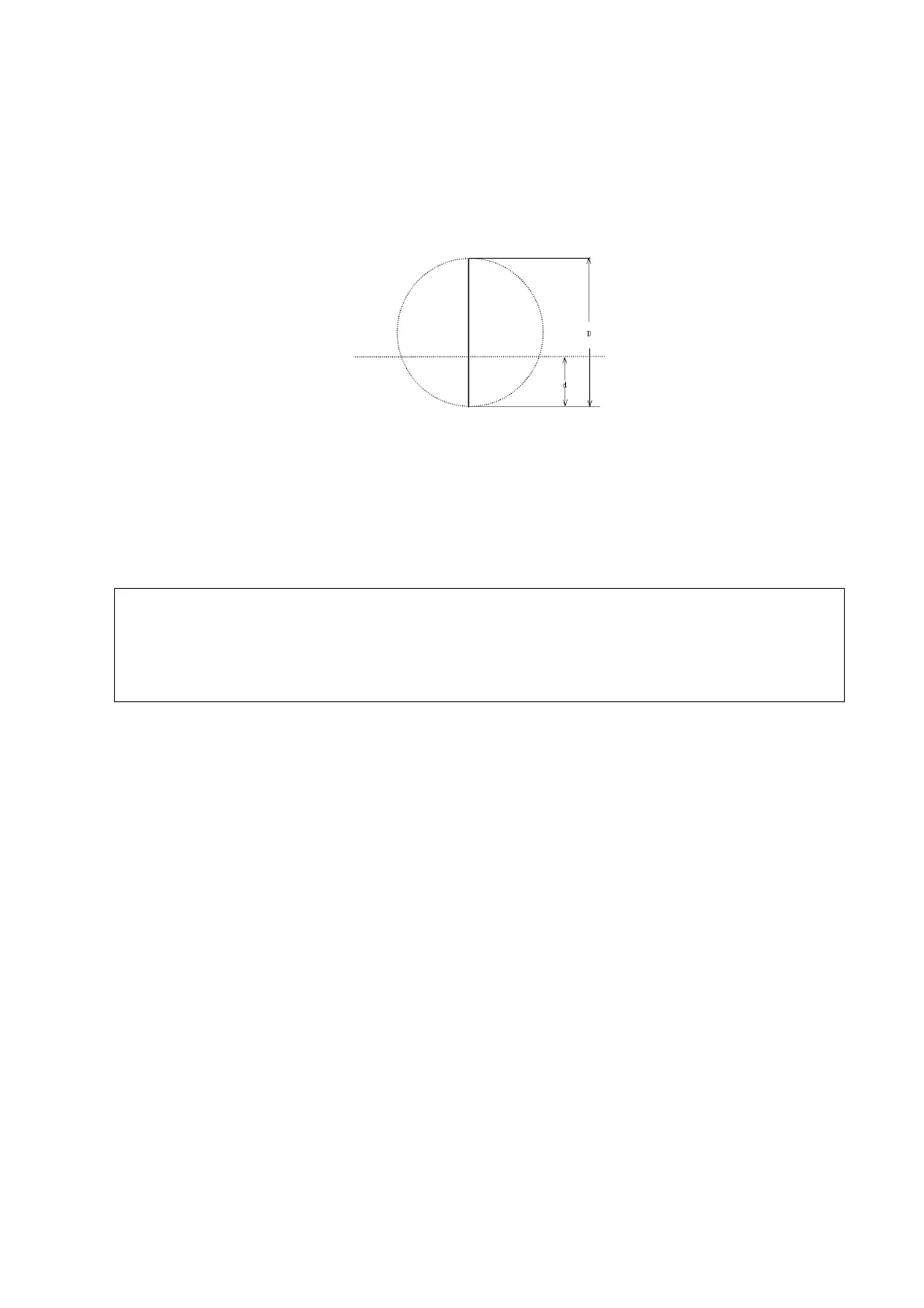

d/D
Measures distance between baseline and bottom line of the osseous acetabular and maximum
width of hip to estimate the hip osseous acetabular coverage.
1. Click [d/D] in the measure menu.
2. Use the Distance tool in the 2D General Measurement to measure maximum width of hip (D),
and distance between osseous acetabular roof and bottom (d).The system calculates d/D.
11.4 HIP Measurement Operations
Tips: 1. For the definitions of measurement, calculation and study, refer to "1.3
Measurement, Calculation and Study".
2. A measurement tool can be activated by clicking the item either in the
measurement menu or touch screen menu, it's described as "Select/Click ...
(certain item) in the measurement menu" in the following procedures.
1. In B mode, select [HIP] from the measurement menu.
A line appears, and there is a fulcrum on the line.
2. Use the trackball to move the line to the position of the hip joint. Then rotate the <Angle> Knob
to fix the baseline.
3. Press <Set> to confirm and the second line displays.
4. Use the method for adjusting the first line to anchor the RL and press <Set> to fix the RL.
5. Use the same method to fix the third line IL. The angles of α and β come out.
If patient age is entered, dislocation type is also displayed.
Measure angles of α and β separately: click [HIP (α)] or [HIP (β)] to measure.
11.5 Orthopedics Exam Report
During or after a measurement, press <Report> on the Control Panel to browse the report.
For details about report browsing, printing and exporting etc., see "1.7 Report".
