DICOM 10-15
You can perform further query basing on the results by entering new query information.
6. Select one or more patient records according to the actual situation.
Click [Select All] to select all the patient records in the list.
Click [Deselect All] to deselect all the patient records in the list.
7. Click [Retrieve] to retrieve the patient records in the DICOM query/retrieve server into the
local machine.
8. Click [Exit], you can see the retrieved patient records are listed in the iStation screen.
10.4 DICOM Media Storage
The system supports to save patient data to the external media in DCM format. Meanwhile, in
the system, you can view the saved DCM files from external media
Media storage:
1. Select patient record(s) in the iStation screen.

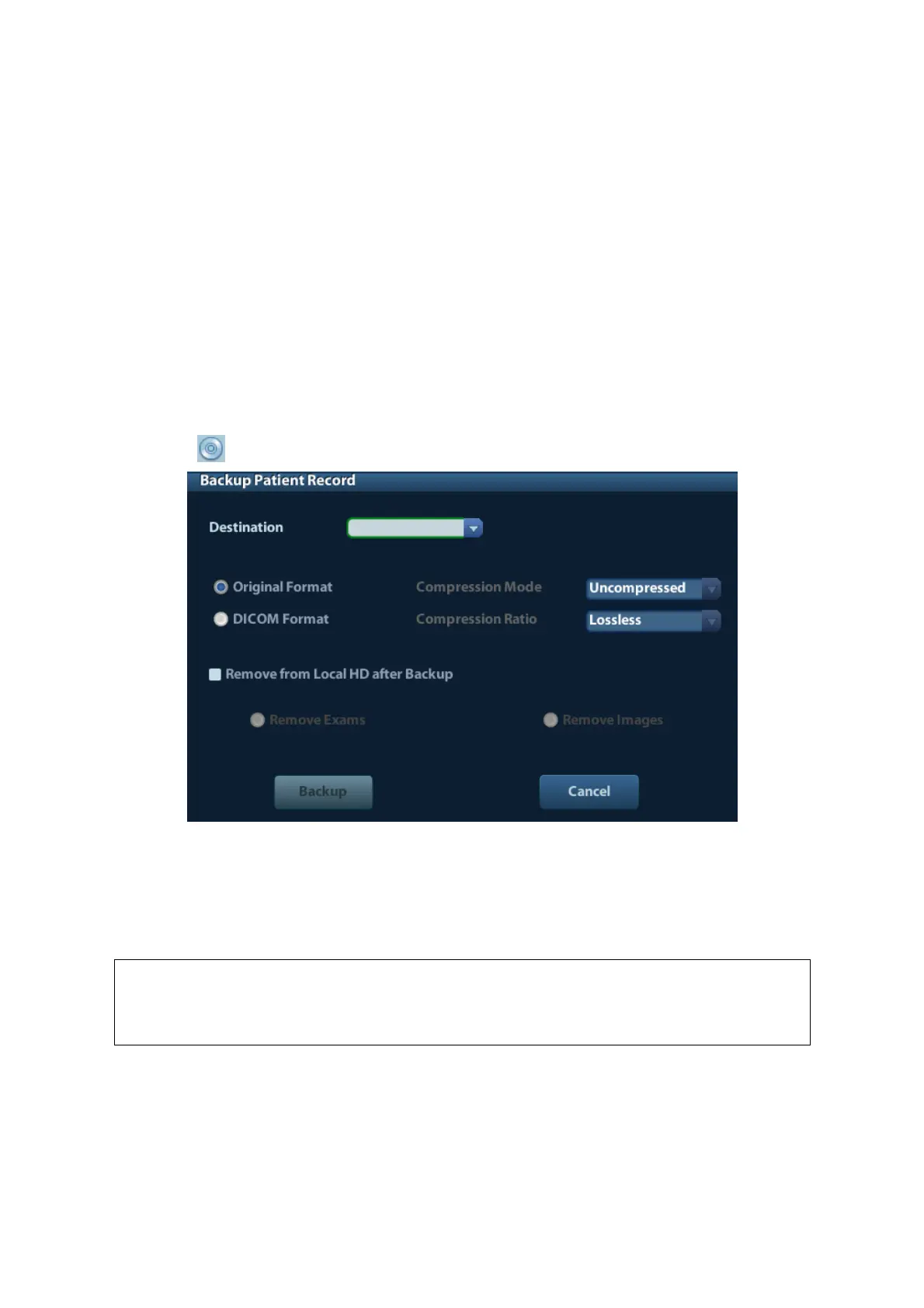

2. Click , the following dialog box popped up:
3. Select the destination, and select DICOM format.
4. Set whether to remove patient exam data or only images from the local hard disk.
5. Click [Backup] to begin storage.
If the backup succeeded, there will be a tick marked in the Backup list in iStation screen;
otherwise, no tick is marked.
There should be no DICOMDIR/ DICMIMG/IHE_PDI files in the external storage
media of the same name with the one being backed up, otherwise, the backup
can’t proceed. Please make sure there is enough storage space; otherwise,
backup may fail due to space shortage.
Media review:
1. Connect the external media with DCM files to the system.
2. Select the data source in iStation screen, and the visible data will be shown.
If there are several kinds of data on the media, the system will ask you to select the format
from a dialog box.
