Mindray Z50BW User Manual

Setup 11-5
11.1.5 OB
Open the OB page via [Setup]-> [System Preset]-> [OB]. Through the page, you can set the
gestational age formula, fetal growth formula, fetal weight formula and the relevant
information. For details, please refer to the Operator’s Manual [Advanced Volume].
11.1.6 Key Config

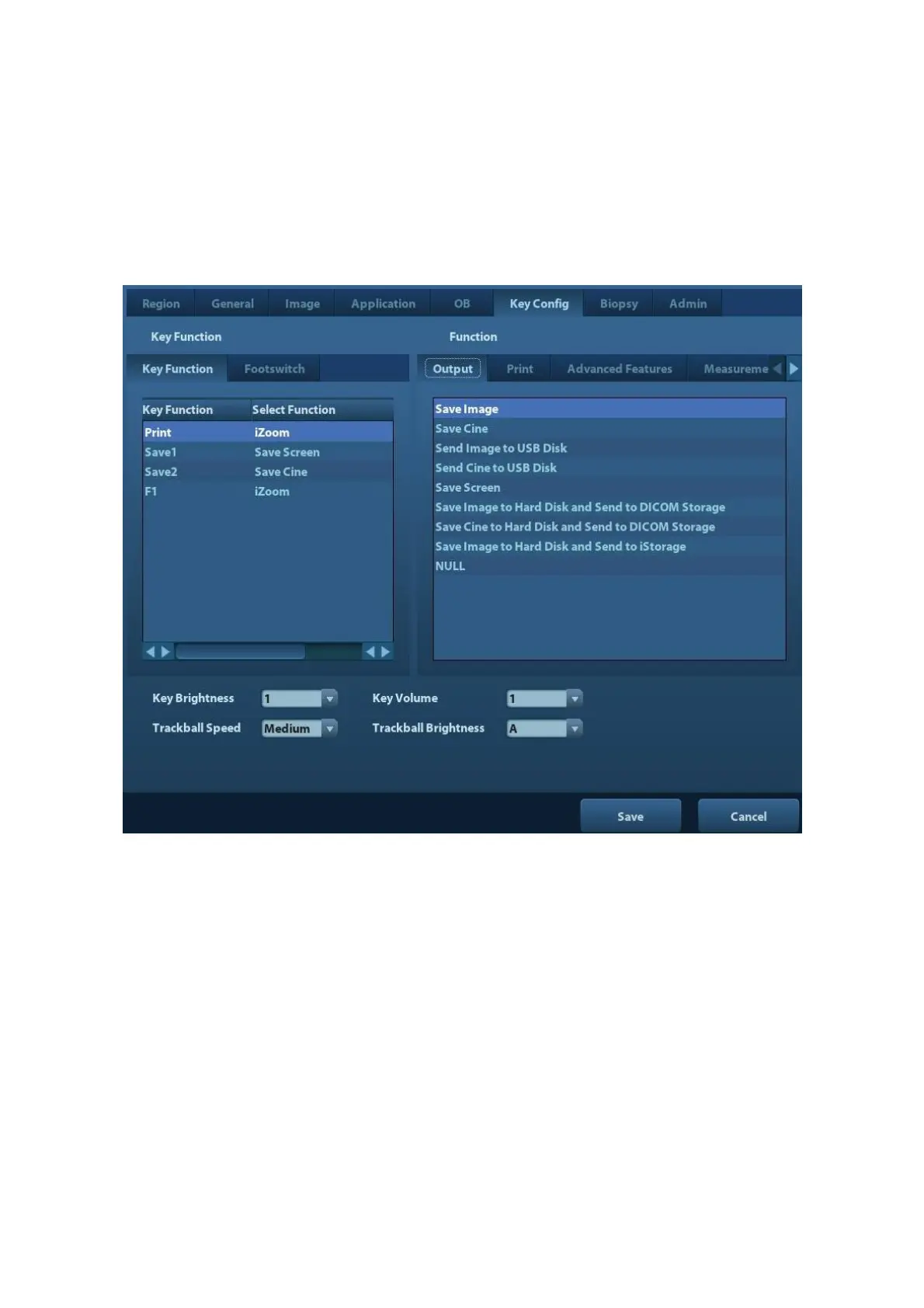

Open the page via [Setup]-> [System Preset]-> [Key Config], as shown in the figure below.
 Key function setting
You can set the functions for <Print>, <Save 1>, <Save 2> <F1> and footswitch.
To assign a function to a key:
(1) Click to select the desired key in the Key Function column at the left side of the page.
(2) Click to select a function in Function area. You can see the functions selected at the
right side of the select key.
(3) Click [Save] to complete function setting.
The following introduces an example as setting <F1> as “Send Cine to USB disk”:
(1) Select F1 in the “Key Function” list at the left side of the page.
(2) Select “Send Cine to USB disk” in “Function” at the right side of the page.
(3) Click [Save] to complete the setting.
