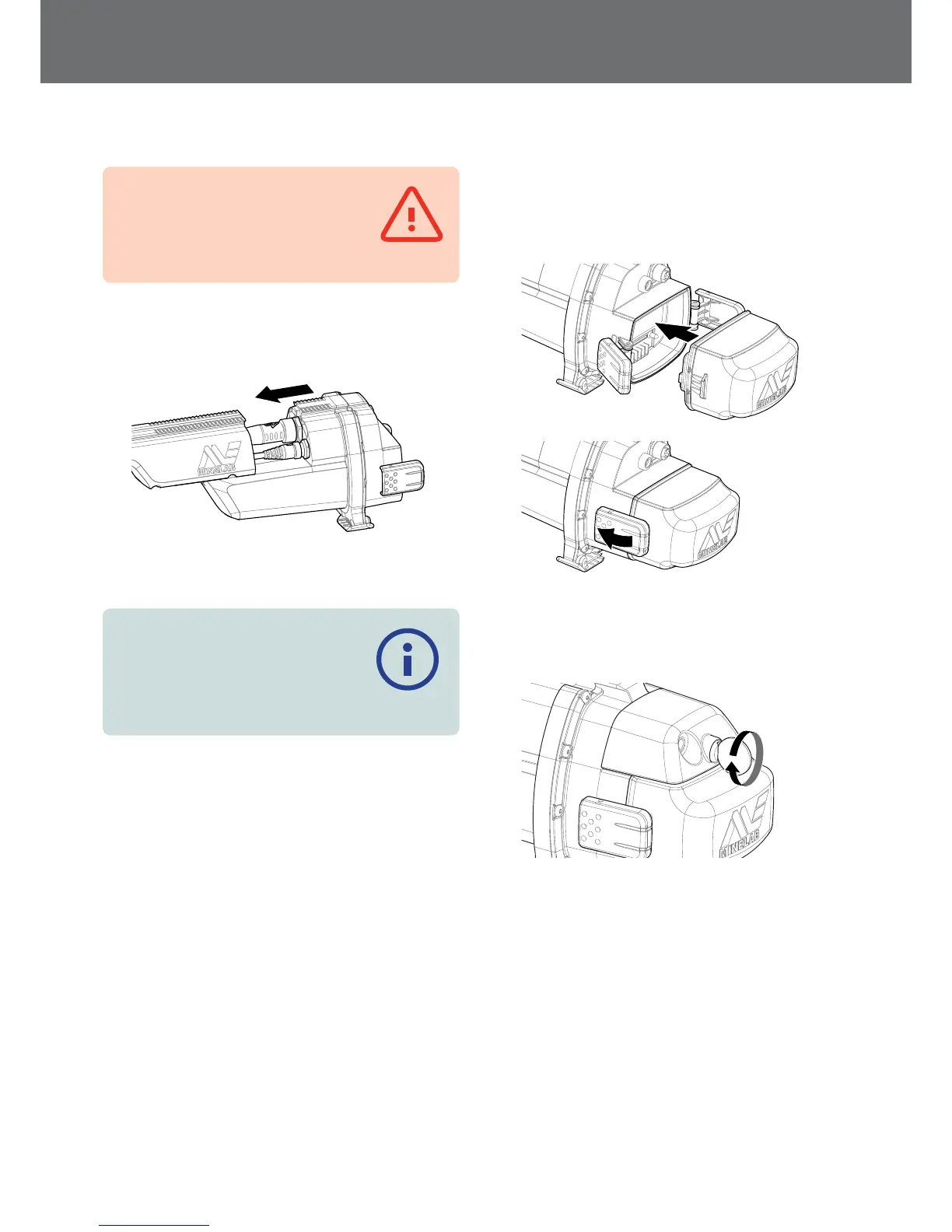

Attach control box
WARNING
PINCH POINTS - CONTROL BOX
Take care when sliding the control box onto
the chassis.
1. Slide the control box partly onto the upper shaft.
When it reaches half way it will click into place to
prevent the control box from sliding while the
connectors are fitted.
2. Attach the coil and control panel cables to their
respective connectors and firmly tighten the retaining
rings.
NOTE
To optimise performance, the retaining rings
have fine threads for precise fitment. Take
care not to cross-thread the retaining rings
during assembly.
3. Slide the control box further along the upper shaft
until it locks into place.
Attach battery and headphone module
Going detecting with a fully charged battery is
recommended. See page 9 for information on how to
recharge the GPZ 7000 battery.
1. Fit the battery pack onto the control box and close
the latches to secure it in place.
2. Fit the headphone module onto the control box. Use
a screwdriver or coin to gently tighten the bolt,
taking care not to damage the thread by over-
tightening.
Assembly
5
