OUT
1
2
3
4
5
6
7
8
5.3 Output Instructions 5.3.1 Out instruction (excluding timers, counters, and annunciators) (OUT)

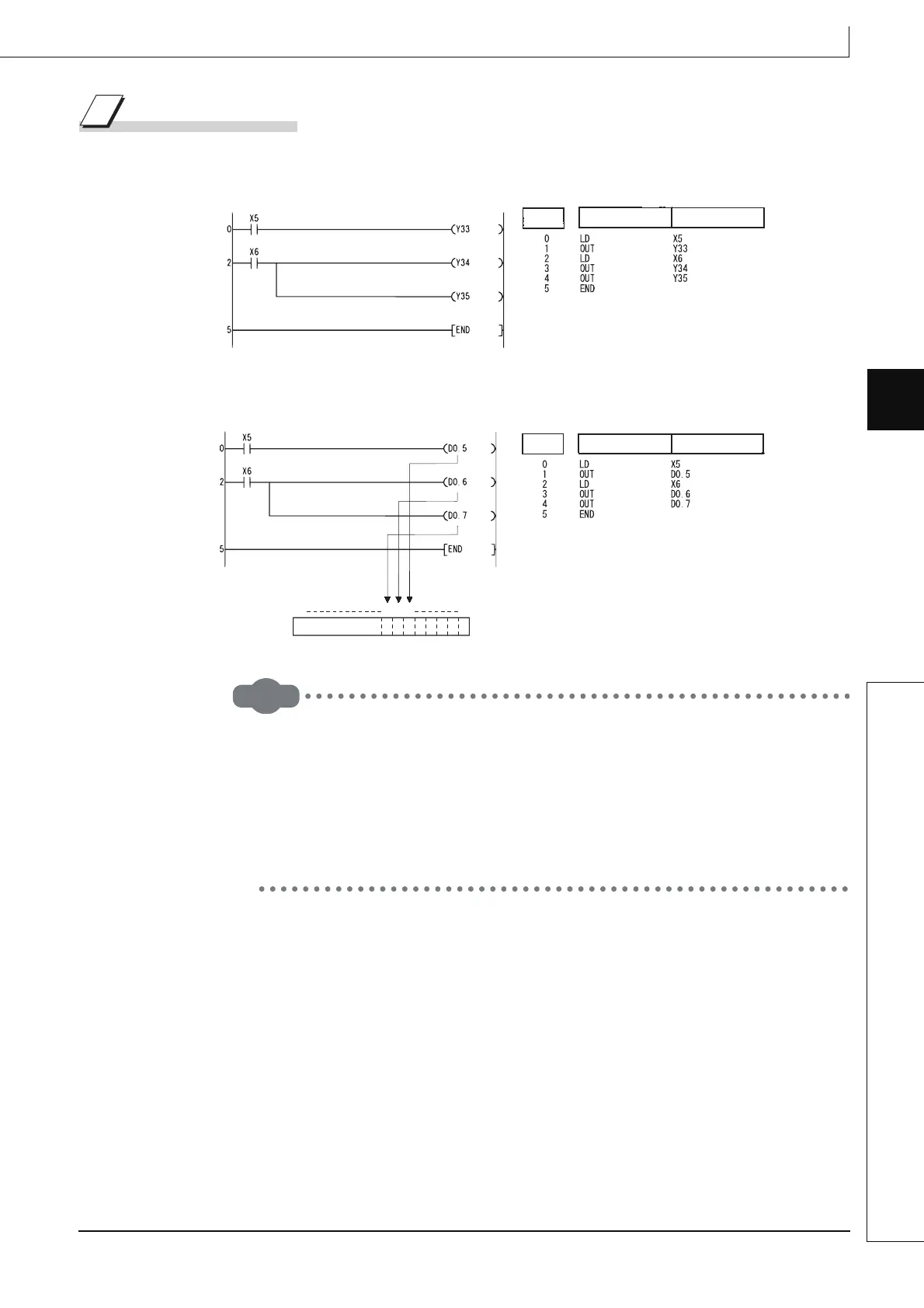

Program Example
(1) When using bit devices
[Ladder Mode] [List Mode]
(2) When bit designation has been made for word device
[Ladder Mode] [List Mode]
Remark
The number of basic steps for the OUT instructions is as follows:
• When using internal device or file register (R) : 1
• When using direct access output (DY) : 2
• When using serial number access format file register
(Only for Universal model QCPU and LCPU) : 2
(Basic Model QCPU, High Performance model QCPU, Process CPU,
and Redundant CPU) : 3
• Devices other than above : 3
Step
Instruction
Device
b0
D0
b5b15 b6b7
Step
Instruction
Device
