5-55
STOP
1
2
3
4
5
6
7
8
5.7 Other instructions

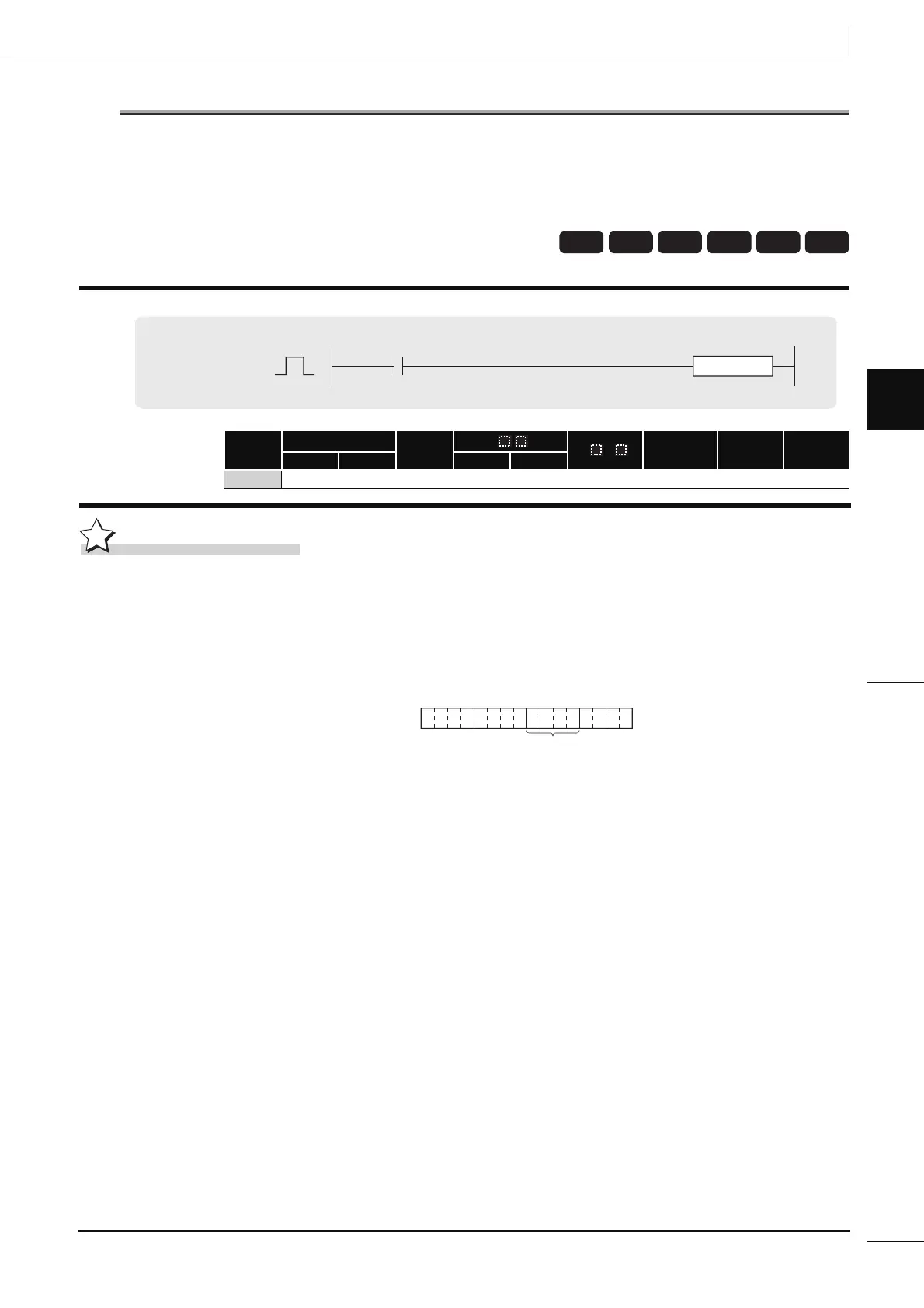

5.7.1 Sequence program stop (STOP)
5.7 Other instructions
5.7.1 Sequence program stop (STOP)
STOP
Function
(1) Resets the output (Y) and stops the CPU module operation when the execution command is
turned ON.
(The same result will take place if switch is turned to the STOP setting.)
(2) Execution of the STOP instruction will cause the value of b4 to b7 of the special register
SD203 to become "3".
(3) In order to restart CPU module operations after the execution of the STOP instruction, return
switch, which has been changed from RUN to STOP, back to the RUN position.
Setting
Data
Internal Devices
R, ZR
J\
U\G
Zn Constants Other
Bit Word Bit Word
–– ––
Basic
Process
High
performance
Redundant
Universal
LCPU
Command
STOP
STOP
SD203
00
11
b15 b12
to
b11 b8
to
b7 b4
to
b3 b0
to
Sets value "3".
