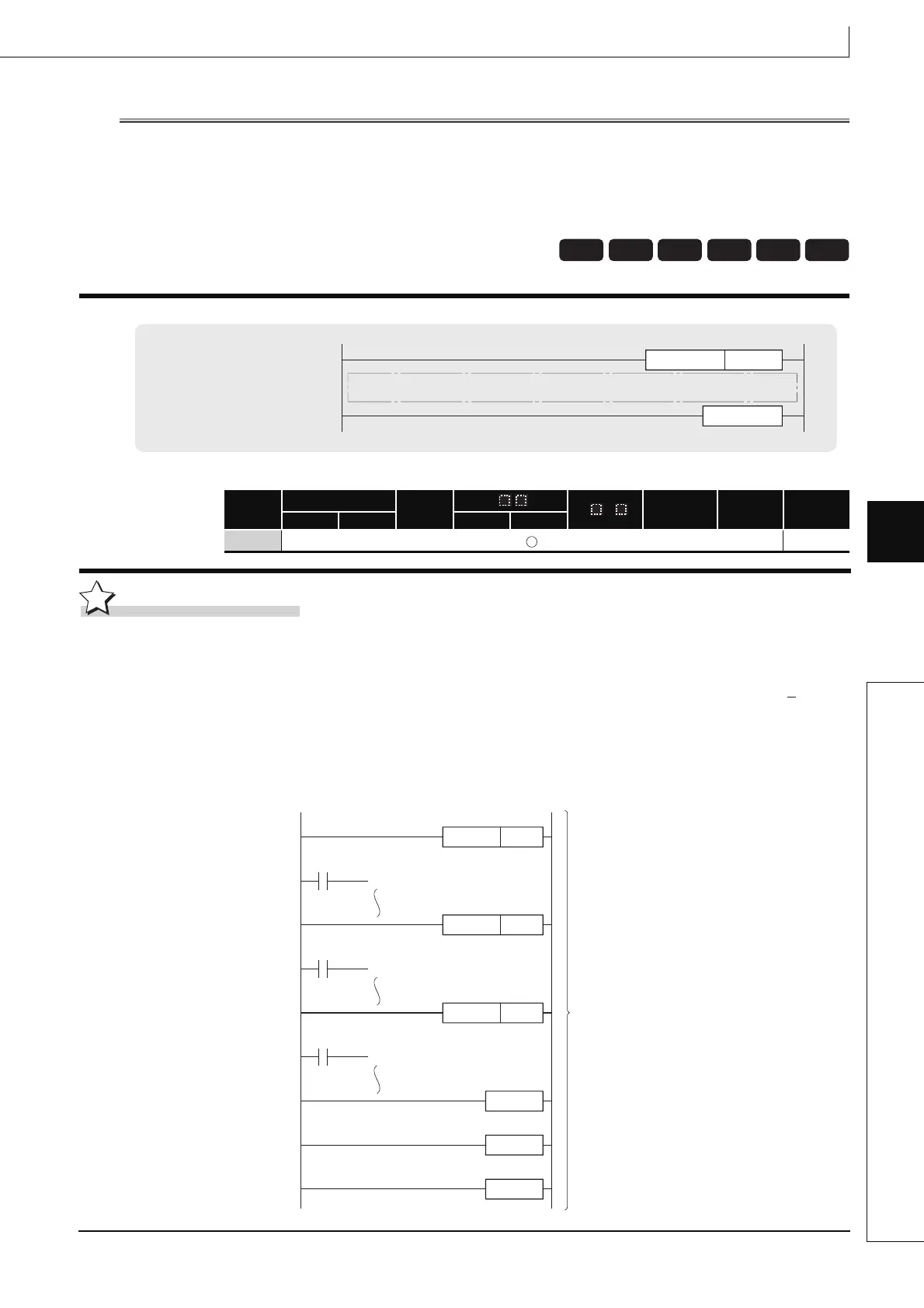

7.6 Structure creation instructions 7.6.1 FOR to NEXT instruction loop (FOR,NEXT)
7.6 Structure creation instructions
7.6.1 FOR to NEXT instruction loop (FOR,NEXT)
FOR,NEXT
Function
(1) When the processing in the FOR to NEXT loop is executed n-times without conditions, the
step following the NEXT instruction will be executed.
(2) The value of n can be designated at between 1 and 32767. If it is designated from 32768
to 0, the processing which is executed when n=1 will be performed.
(3) If you do not desire to execute the processing called for within the FOR to NEXT loop, use
the CJ or SCJ instruction to jump.
(4) FOR instructions can be nested up to 16 deep.
n : Number of repetitions of FOR to NEXT loop (1 to 32767) (BIN 16 bits)
Setting
Data
Internal Devices
R, ZR
J\
U\G
Zn
Constants
K, H
Other
Bit Word Bit Word
n ––
Basic
Process
High
performance
Redundant Universal LCPU
n
NEXT
FOR
Repeat program
FOR
NEXT
FOR instructions can be
nested up to 16 deep.
K5FOR
K3FOR
K100FOR
NEXT
NEXT
NEXT
X
X1
X2
