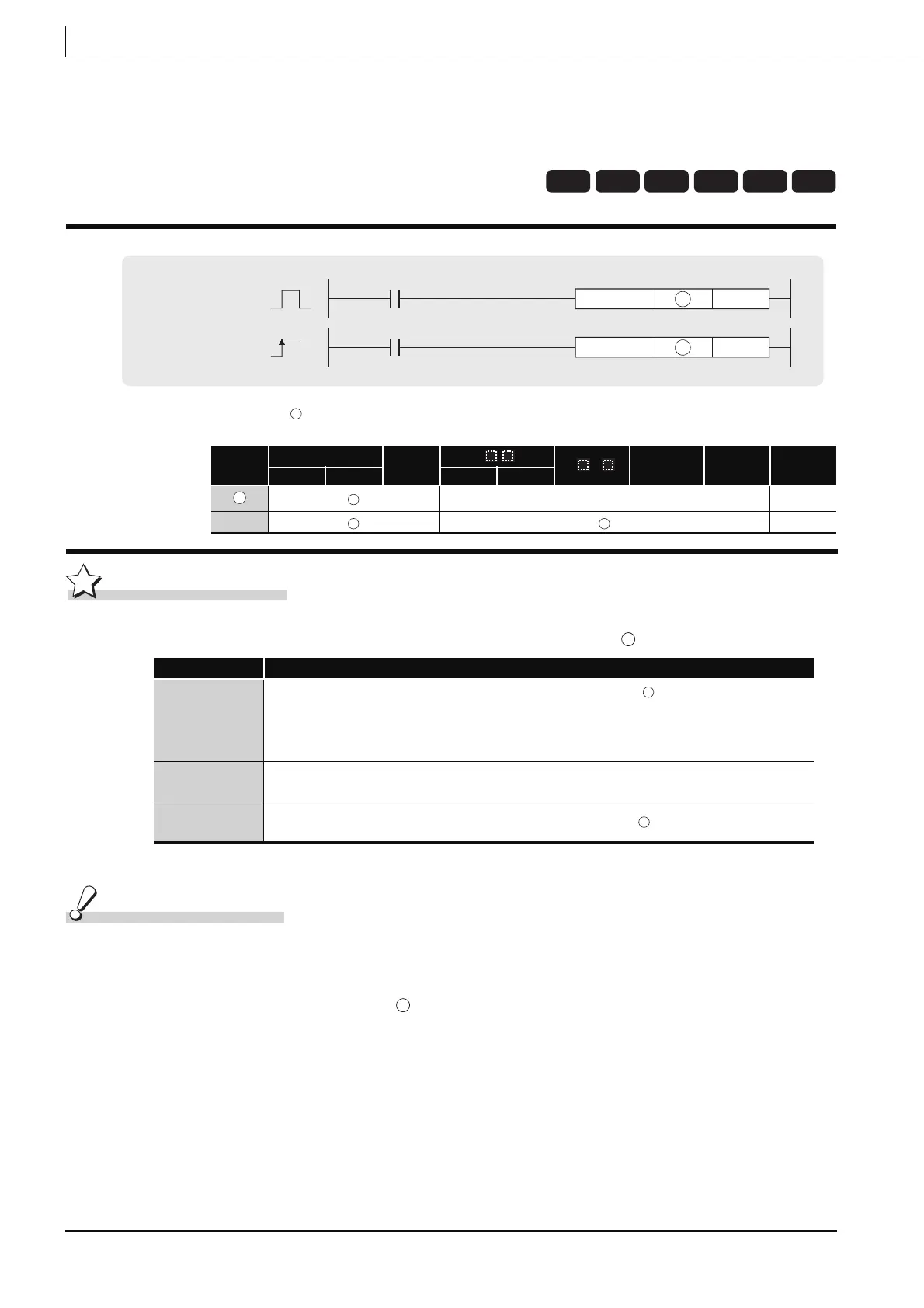

7.4.3 Batch reset of bit devices (BKRST(P))
BKRST(P)
Function
(1) Resets bit device n-points from the bit device designated by .
(2) If the designated device is OFF, the device status will not change.
Operation Error
(1) In the following case, an operation error occurs, the error flag (SM0) turns ON, and an error
code is stored into SD0.
• The n-bit range from the , or device exceeds the range of that device.
(Error code: 4101)
: Head number of the devices to be reset (bits)
n : Number of the devices to be reset (BIN 16 bits)
Setting
Data
Internal Devices
R, ZR
J\
U\G
Zn
Constants
K, H
Other
Bit Word Bit Word
–– ––
n ––
Device Status
Annunciator (F)
• Turns device n-points from annunciator (F) number designated by OFF.
• Deletes annunciator number turned OFF from SD64 to SD79 and compresses remaining data
forward.
• Stores number of annunciators stored from SD64 to SD79 at SD63.
Timer (T)
Counter (C)
• Sets the current value n-points from timer (T) or counter c designated by (C) to 0, and turns coil
contact OFF.
Bit devices other
than the above
• Turns OFF coil or contact n-points from the device designated by .
Basic
Process
High
performance
Redundant
Universal
LCPU
Command
Command
BKRSTP
BKRST
n
n
D
D
BKRST
BKRSTP
D
D
D
D
D
D
