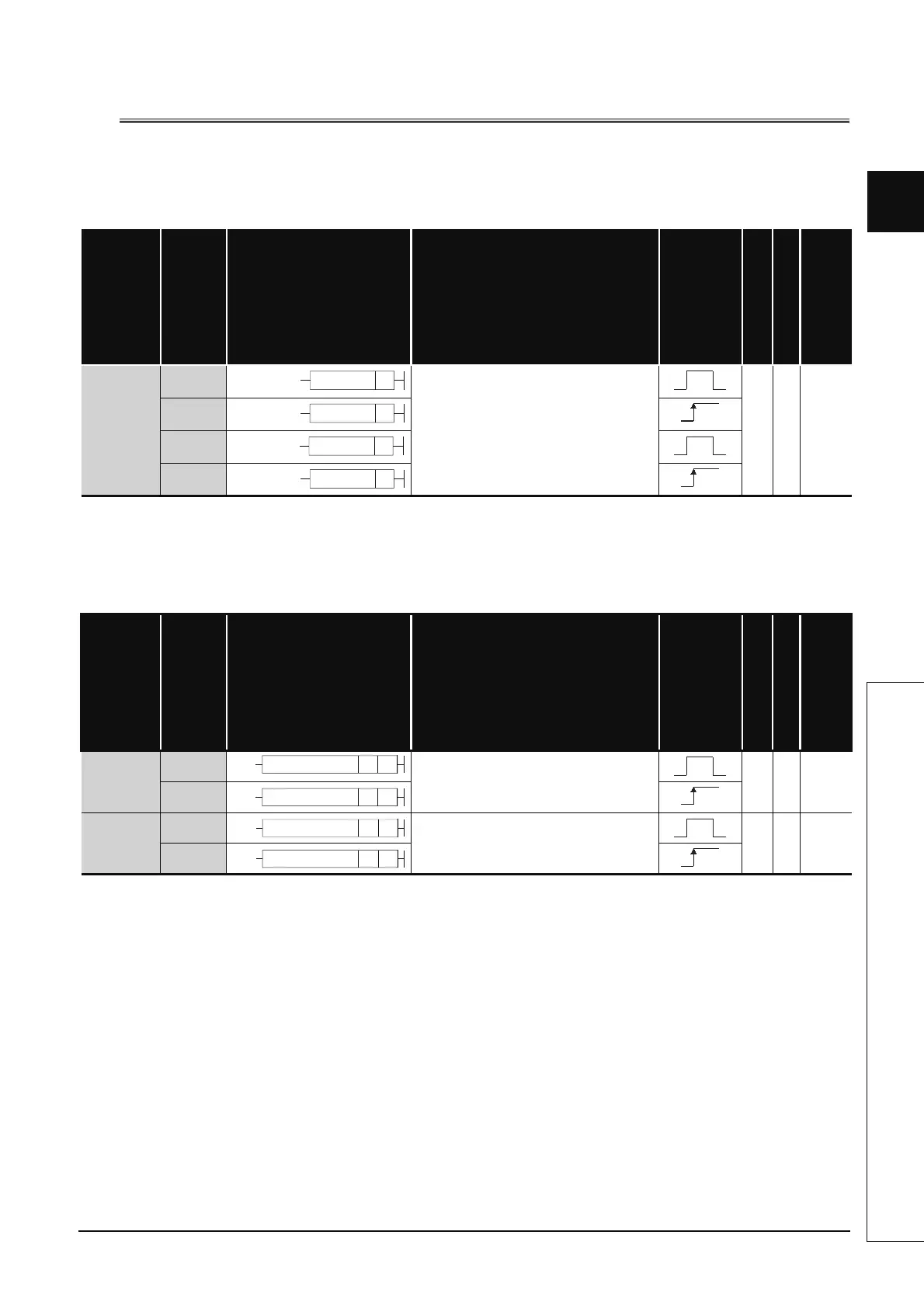

2.6 Instructions for Data Link 2.6.1 Instructions for Network refresh
2.6 Instructions for Data Link
2.6.1 Instructions for Network refresh
Table 2.36 Instructions for Network refresh
2.6.2 Instructions for Reading/Writing Routing Information
Table 2.37 Instructions for Reading/Writing Routing Information
Category
Instruction Symbol
Symbol Processing Details
Execution
Condition
Number of Basic Steps
Subset
See for Description
Link instruc-
tion: Net-
work refresh
S.ZCOM
Refreshes the designated network.
5- 8-2
SP.ZCOM
S.ZCOM
SP.ZCOM
Category
Instruction Symbol
Symbol Processing Details
Execution
Condition
Number of Basic Steps
Subset
See for Description
Reading
routing
information
S.RTREAD
Reads data set at routing parameters.
7- 8-6
SP.RTREAD
Registering
routing
information
S.RTWRITE
Writes routing data to the area designated by
routing parameters.
8- 8-8
SP.RTWRITE
S.ZCOM Jn
SP.ZCOM Jn
S.ZCOM Un
SP.ZCOM Un
DnS.RTREAD
DnSP.RTREAD
SnS.RTWRITE
SnSP.RTWRITE
