Mitsubishi MELSEC Q Series Programming Manual

2-51
1
2
4
4
2
6
7
8
2.5 Application Instructions 2.5.14 Switching instructions
2.5.14 Switching instructions

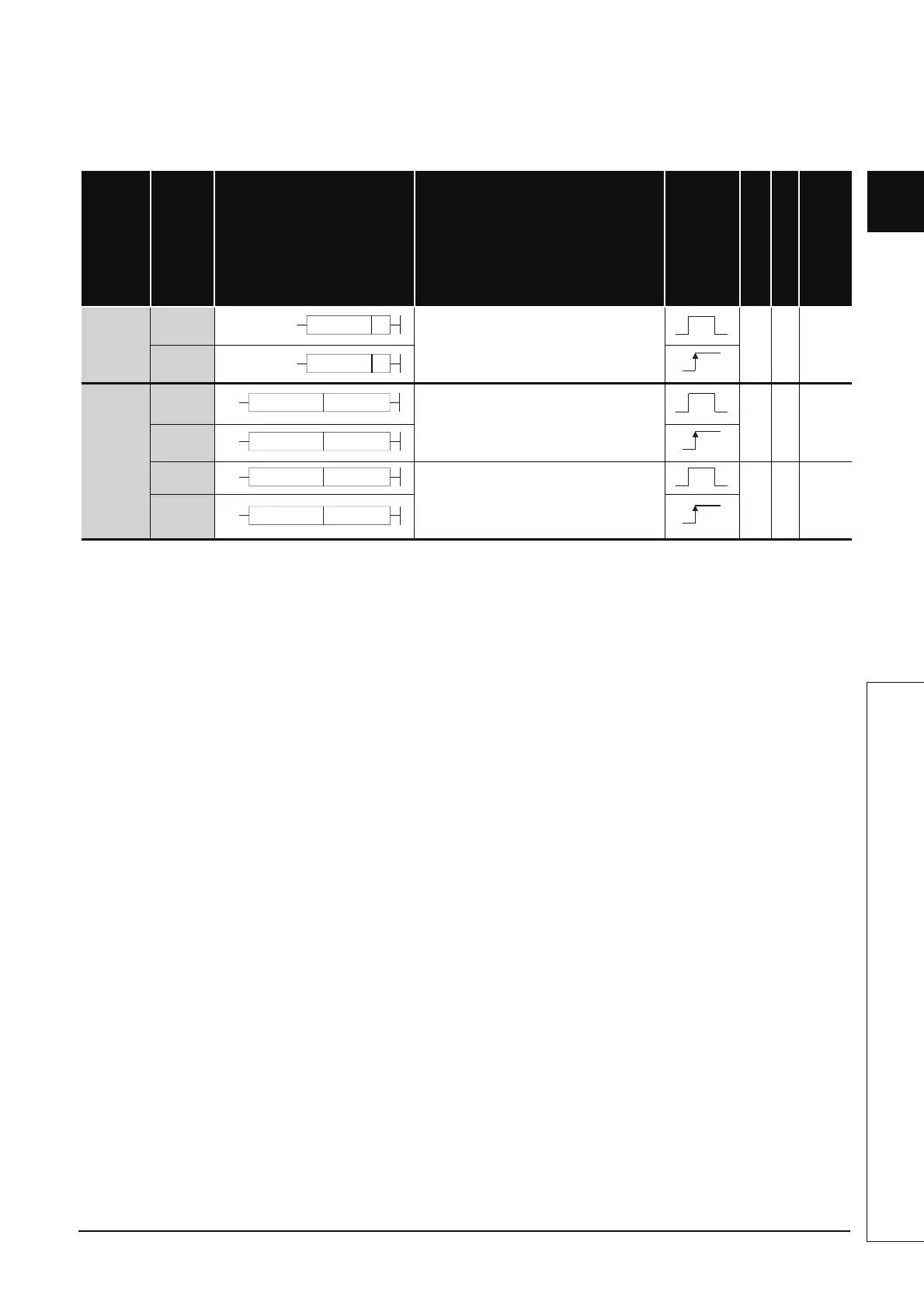

Table 2.31 Switching Instructions
*1: n ([number of file name characters] / 2) indicates a step. (Decimal fractions are rounded up.)
Category
Instruction Symbol
Symbol Processing Details
Execution
Condition
Number of Basic Steps
Subset
See for Description
Block
number
switching
RSET
• Converts extension file register block
number to number designated by (S).
2 - 7-336
RSETP
File set
QDRSET
• Sets file names used as file registers.
*1
2
+
n
- 7-338
QDRSETP
QCDSET
• Sets file names used as comment files.
*1
2
+
n
- 7-341
QCDSETP
RSET S
RSETP S
QDRSET
File name
QDRSETP
File name
QCDSET
File name
QCDSETP
File name
