8 - 16 8 - 16
MELSEC-Q
8 UTILITY PACKAGE (GX Configurator-SC)
8.4 System Registration to Flash ROM
[Purpose]
Display the menu screen for flash ROM registration, which is used to change the
initial values set in the Q series C24's buffer memory.
[Startup procedure]
• Online operation
Startup from Intelligent function module utility
(GX Developer Version 4 or later)
[Online]
[Monitor/test] "Select monitor/test module" Monitor/test
[Monitor] screen
Startup from the system monitor (GX Developer Version 6 or later).
[GX Developer]
[Diagnostics] [System Monitor] "Select the Q series
C24 by installation status"
Diagnostics... [Monitor] screen
• Offline operation
[Tools]
Flash ROM setting [Flash ROM setting] screen
[Setting screen]

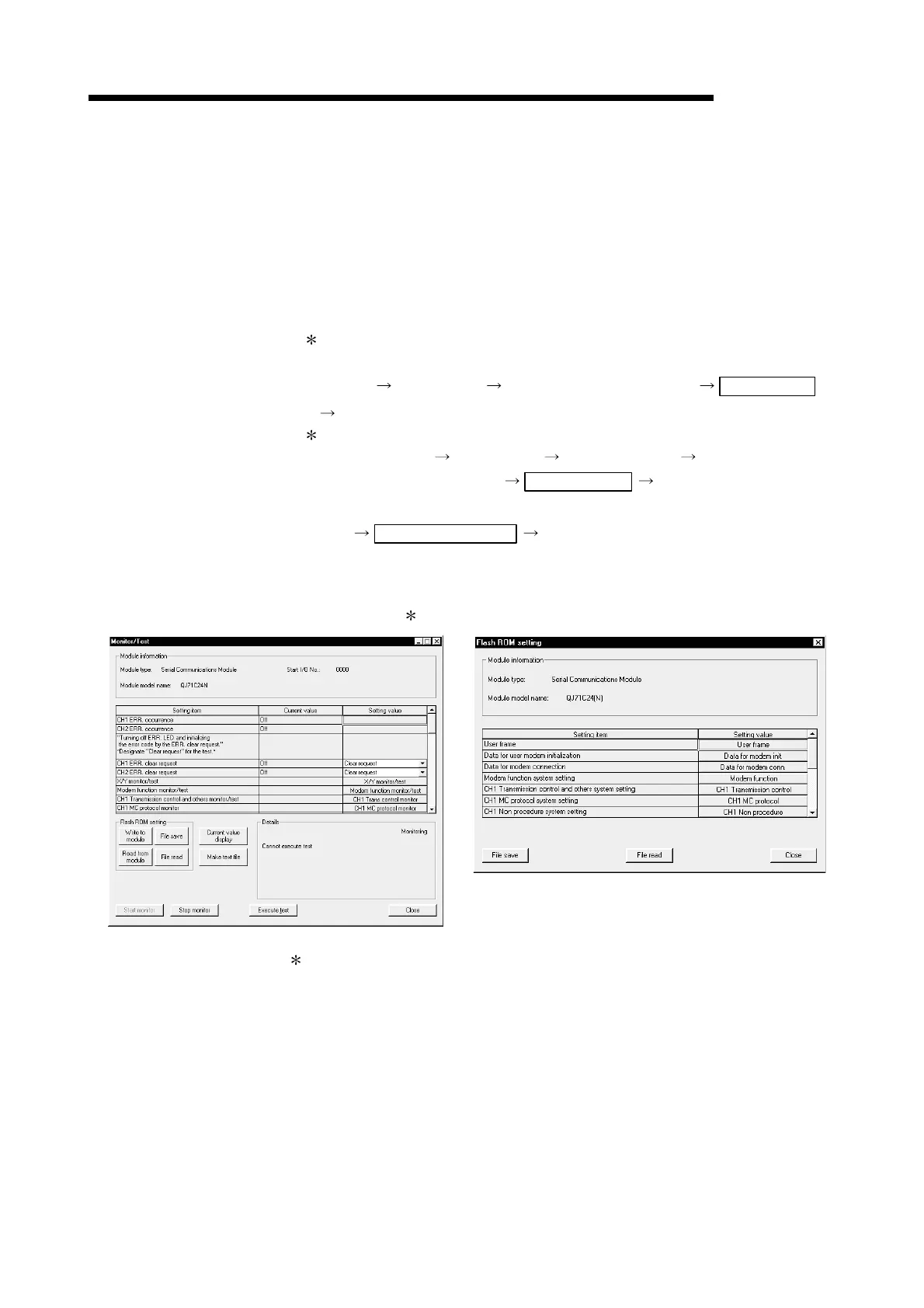

Screen displayed during online operation ( 1) Screen displayed during offline operation
1 The selection menus for system setting/registration are displayed by scrolling
on the [Monitor] screen during online operation.
The selection buttons pertaining to flash ROM registration are displayed in
blue on the screen.
To Next Page
