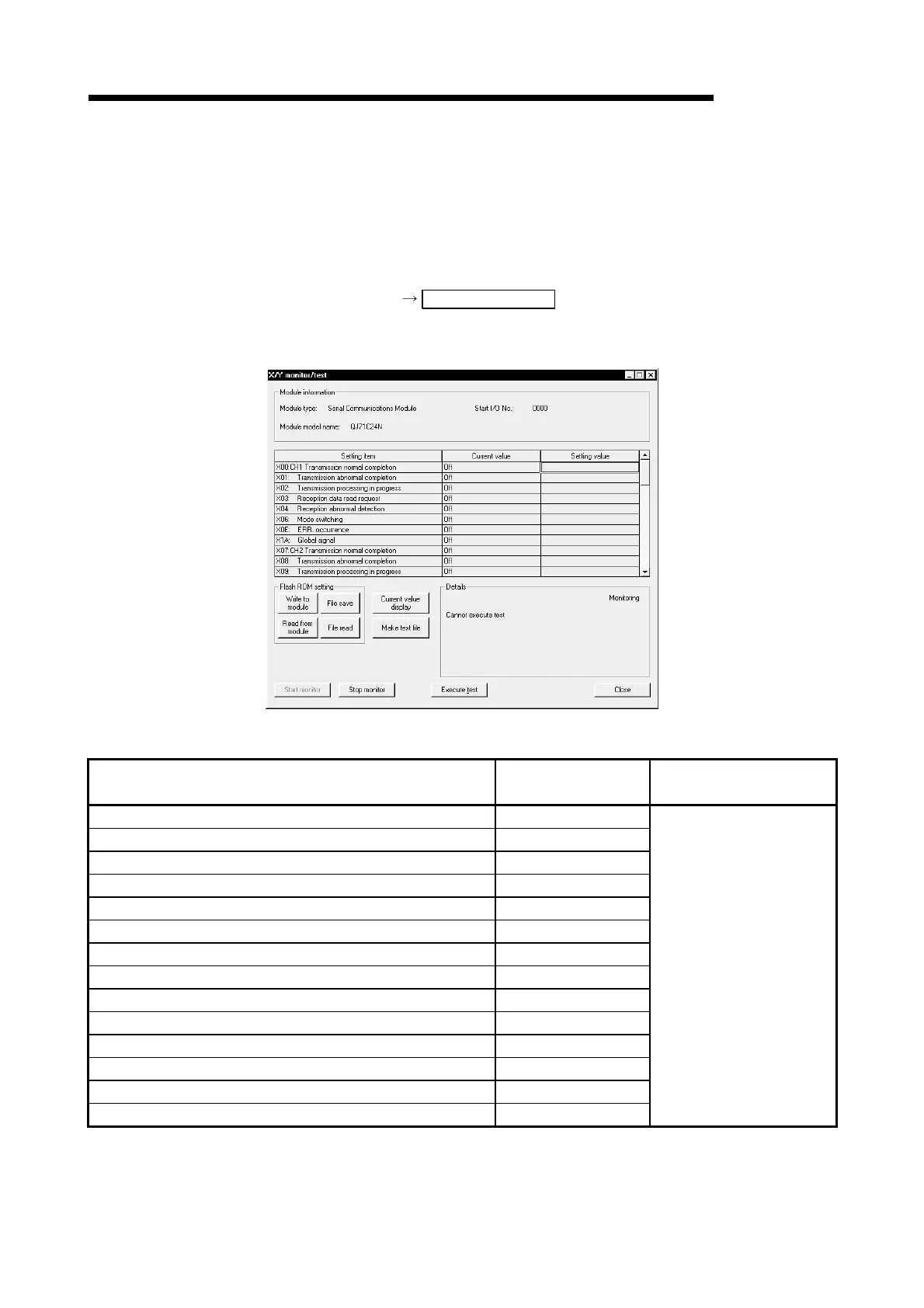

8 - 33 8 - 33

MELSEC-Q

8 UTILITY PACKAGE (GX Configurator-SC)

8.6.1 X · Y monitor/test

[Purpose]

Perform the monitoring of I/O signals and testing of output signals.

[Startup procedure]

[Monitor] screen X · Y monitor/test

[Monitor/test screen]

[Monitor/test items]

Monitor/test items

Setting value storage

buffer memory address

Reference section containing

detailed explanation

X00: CH1 Transmission normal completion —

X01: CH1 Transmission abnormal completion —

X02: CH1 Transmission processing in progress —

X03: CH1 Reception data read request —

X04: CH1 Reception abnormal detection —

X06: CH1 Mode switching —

X0E: CH1 ERR. Occurrence —

X1A: CH1 Global signal —

X07: CH2 Transmission normal completion —

X08: CH2 Transmission abnormal completion —

to to

Y18: Flash ROM write request —

Y19: Flash ROM system setting request —

Y1C: System setting default request —

Section 3.8.

Mitsubishi QJ71C24/-R2 User Manual
