8 - 32 8 - 32
MELSEC-Q
8 UTILITY PACKAGE (GX Configurator-SC)
8.6 Monitor/Test
[Purpose]
The displayed menu screen is used to perform various operations, including the
monitoring of the Q series C24's operating status and setting values and the
testing of its output signals. The monitor/test operations can be performed only
via online operation.
[Startup procedure]
Startup from Intelligent function module utility
(GX Developer Version 4 or later)
[Online]
[Monitor/test] "Select monitor/Test module" Monitor/test
[Monitor] screen
Startup from the system monitor (GX Developer Version 6 or later).
[GX Developer]
[Diagnostics] [System Monitor] "Select the Q series
C24 by installation status"
Diagnostics... [Monitor] screen

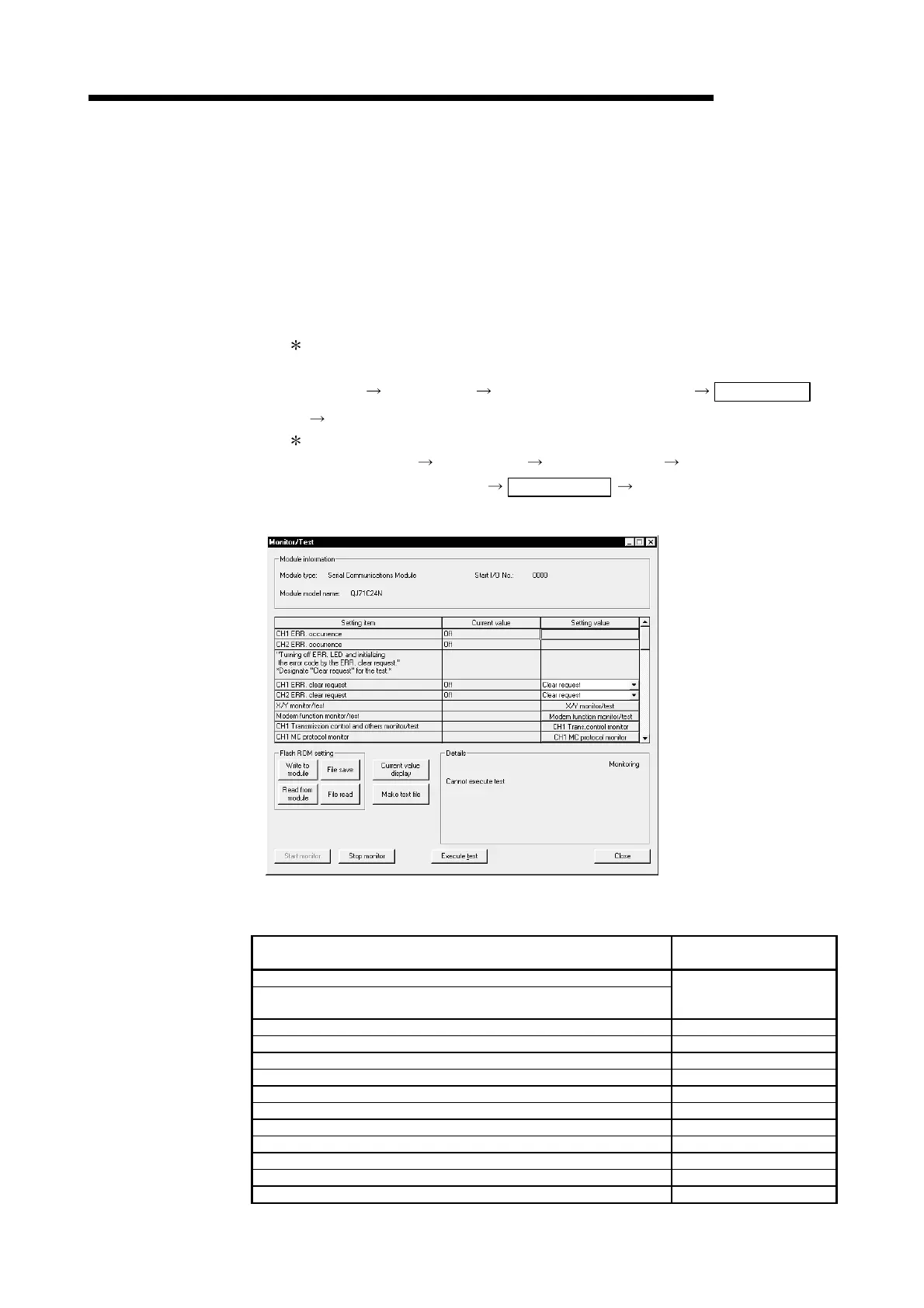

[Monitor/test screen]
[Monitor/test items]
The following selection menus for monitor/test operation will be displayed.
Function
Reference section containing
explanation
ERR. occurrence
ERR. clear request
(Communication error information, error code information)
Section 8.6.10
X · Y monitor/test Section 8.6.1
Modem function monitor/test Section 8.6.2
Transmission control and others monitor/test Section 8.6.3
MC protocol monitor Section 8.6.4
Non procedure monitor/test Section 8.6.5
Bidirectional monitor Section 8.6.6
PLC CPU monitoring monitor Section 8.6.7
Transmission user frame No. designation monitor Section 8.6.8
Monitor/test others Section 8.6.9
System setting default, system setting write Section 8.4.11
Flash ROM write allow/prohibit designation Section 8.4.12
