8 - 26 8 - 26
MELSEC-Q
8 UTILITY PACKAGE (GX Configurator-SC)
8.4.8 Bidirectional system setting
[Purpose]
For data transmission using the bidirectional protocol, register system setting
values.
[Startup procedure]
• Online operation
[Monitor] screen
CH Bidirectional system setting
• Offline operation
[Flash ROM setting] screen
CH Bidirectional system setting

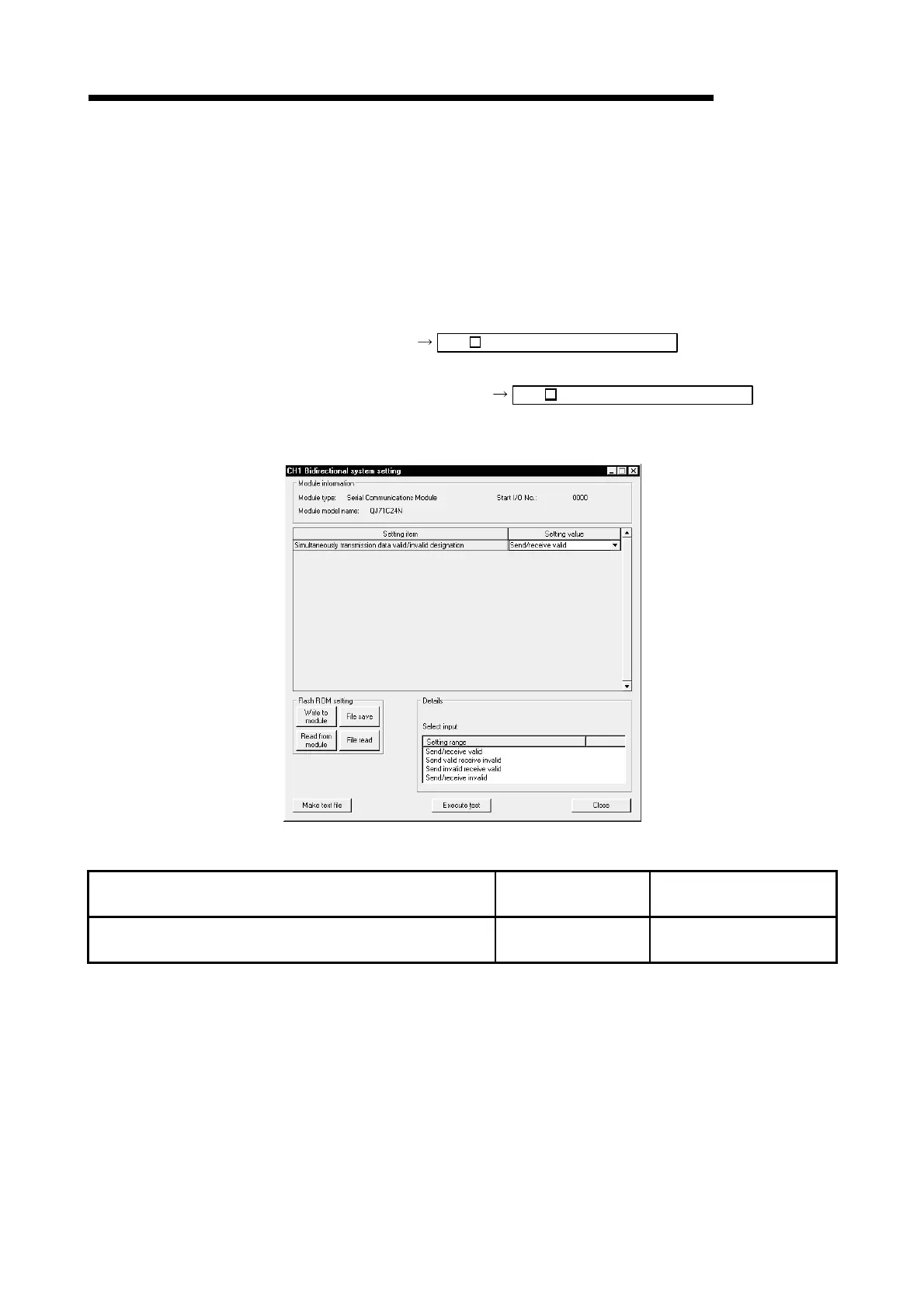

[Setting screen]
[Setting item]
Setting item
Setting value storage
buffer memory address
Reference section containing
detailed explanation
Simultaneously transmission data valid/invalid designation 9B
H
/13B
H
Section 7.3 of
User's Manual (Basic)
