8 UTILITY PACKAGE (GX Configurator-SC)
8.6.8 Transmission user frame No. designation monitor
[Purpose]
Monitor the setting value of output frame number used when transmitting data
with the non procedure protocol using the user frame.
[Startup procedure]
[Monitor] screen CH Output frame monitor

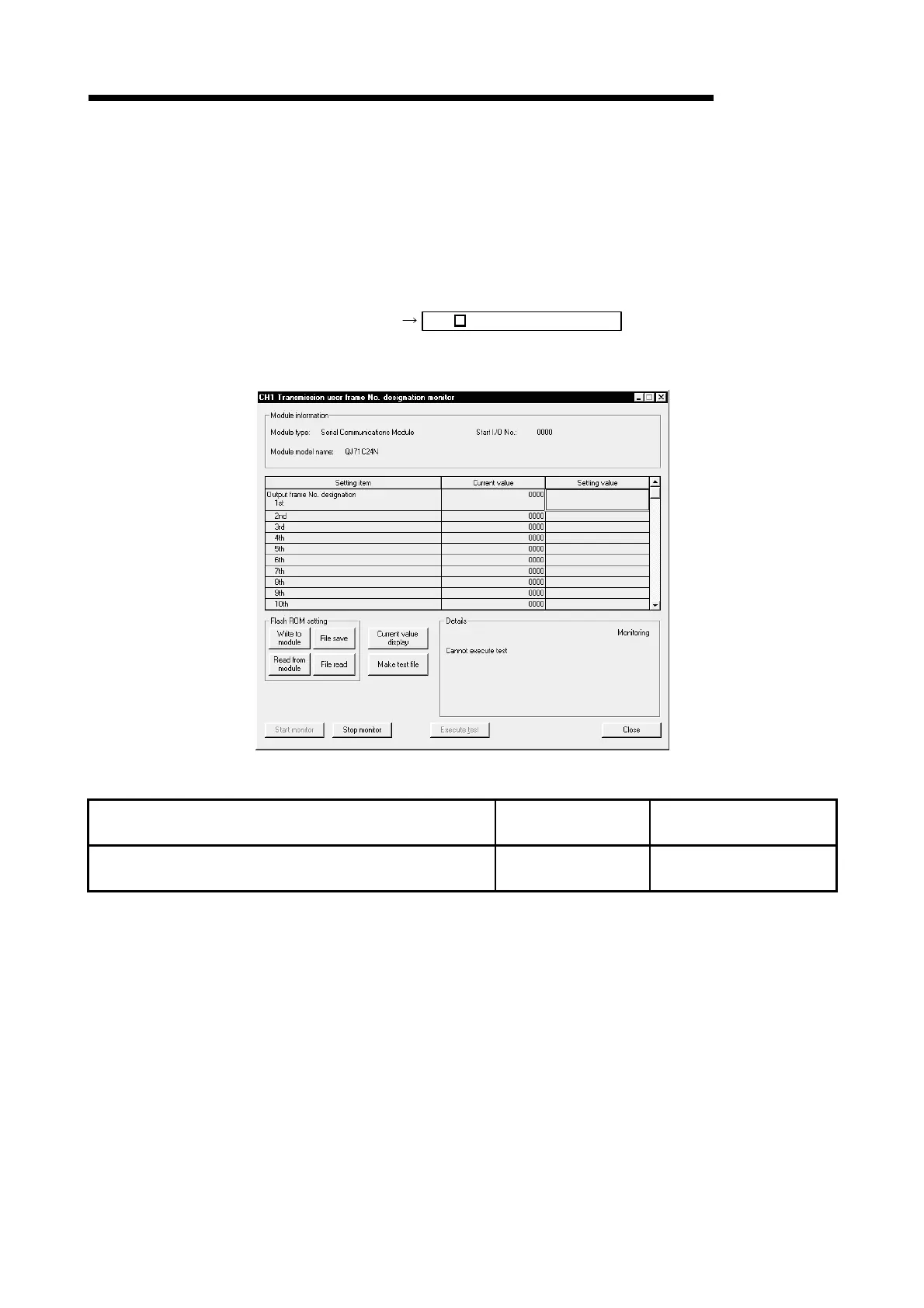

[Monitor screen]
[Monitor item]
Monitor item
Setting value storage
buffer memory address
Reference section containing
detailed explanation
Output frame No. designation 1st to 100th
BA
H
to 11D
H
/
15A
H
to 1BD
H
Chapters 9 through 11 of
User's Manual (Application)
