8 - 18 8 - 18
MELSEC-Q
8 UTILITY PACKAGE (GX Configurator-SC)
8.4.1 User frame registration
[Purpose]
Register the user frame used in the following functions:
• On-demand function using the MC protocol.
• Data transmission/receive function using the non procedure protocol.
[Startup procedure]
• Online operation
[Monitor] screen
User frame
• Offline operation
[Flash ROM setting] screen
User frame

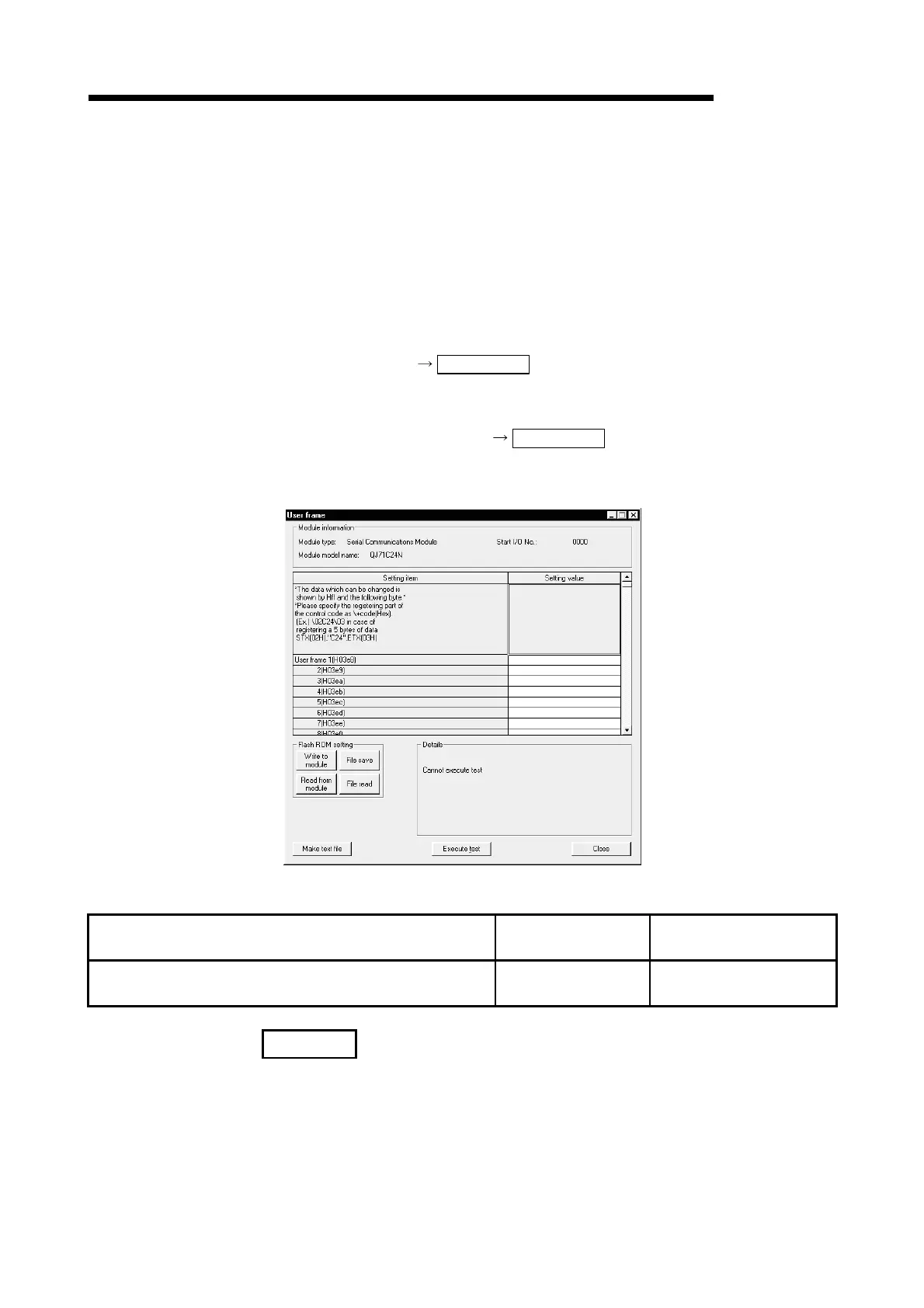

[Setting screen]
[Setting item]
Setting item
Setting value storage
buffer memory address
Reference section containing
detailed explanation
User frame 1 to 200 —
Chapter 9 of
User's Manual (Application)
REMARK
Use \ + code to specify hexadecimal numbers in the control code registration field if
QSCU is used for registering a user frame.
(Example) To register the 5 bytes of data, STX (02
H
), "C24," and ETX (03
H
), specify
the following:
\02C24\03
To Next Page
