CABLE TERMINATION 6-19

Installation NWD-107460-02E

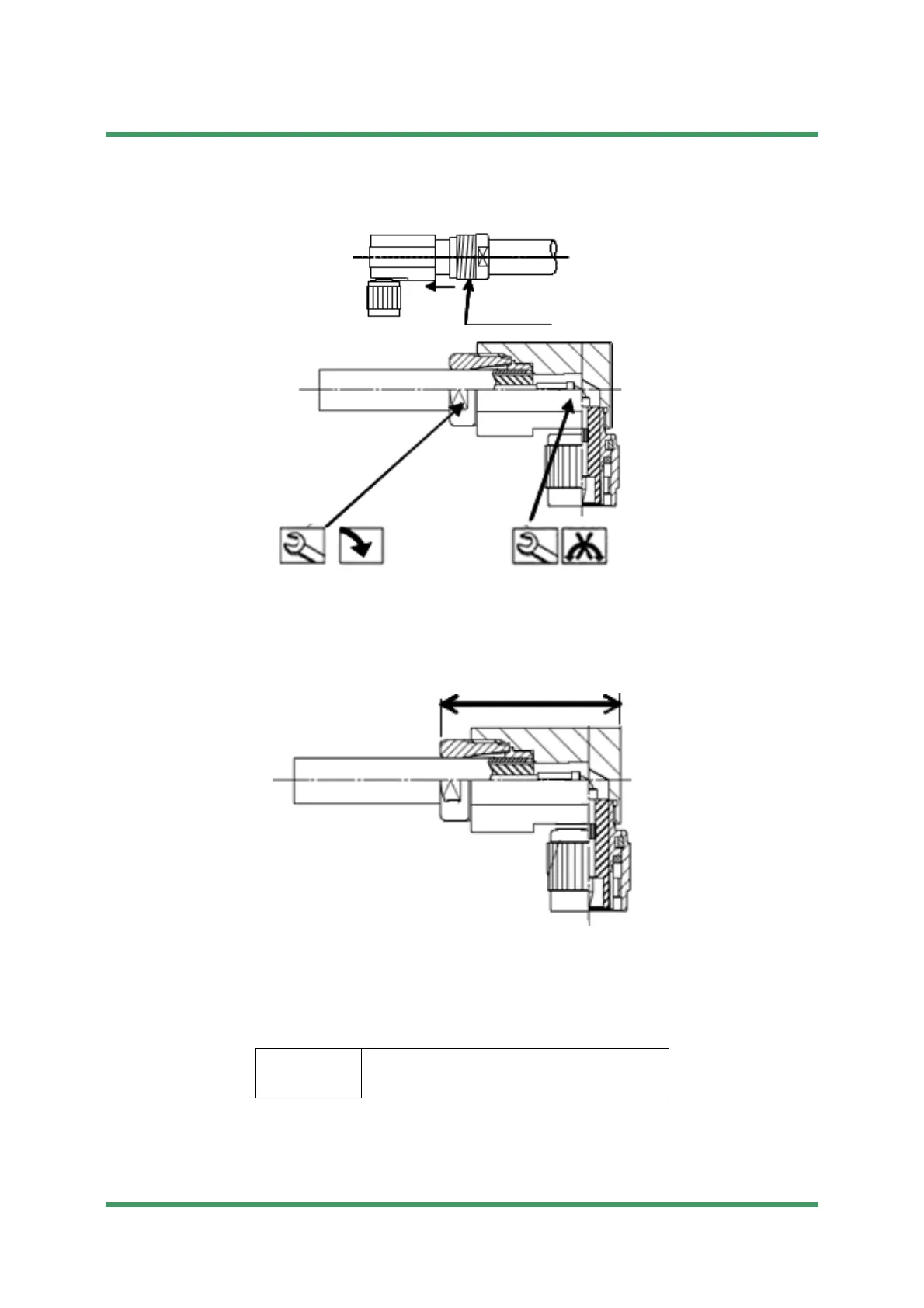

(2) Tighten the connection to the torque value of 10 N·m.

(3) Confirm the total length* of the connector.

* total length :31.4 ~ 31.7 mm

Notes

1 When inserting, do not put the chip which is braided wire inside the

central conductor and the connector body.

2 Do not turn connector body, turn clamp nut attachment.

Tools

• spanner (16 mm)

• torque spanner (12 mm)

Clamp nut

12mm

10 N·m

16mm

* 31.4 ~ 31.7 mm

Submission Prohibited

NEC Internal Use Only
