NEC iPasolink 200 User Manual

ODU MOUNTING 5-57
Installation NWD-107460-02E
Caution: Be careful not to damage the Hybrid. Connection part will be
damaged if excessive power is applied to the Hybrid by
Waveguide.
*: Supplied by Pole Mount.
SS: Stainless Steel

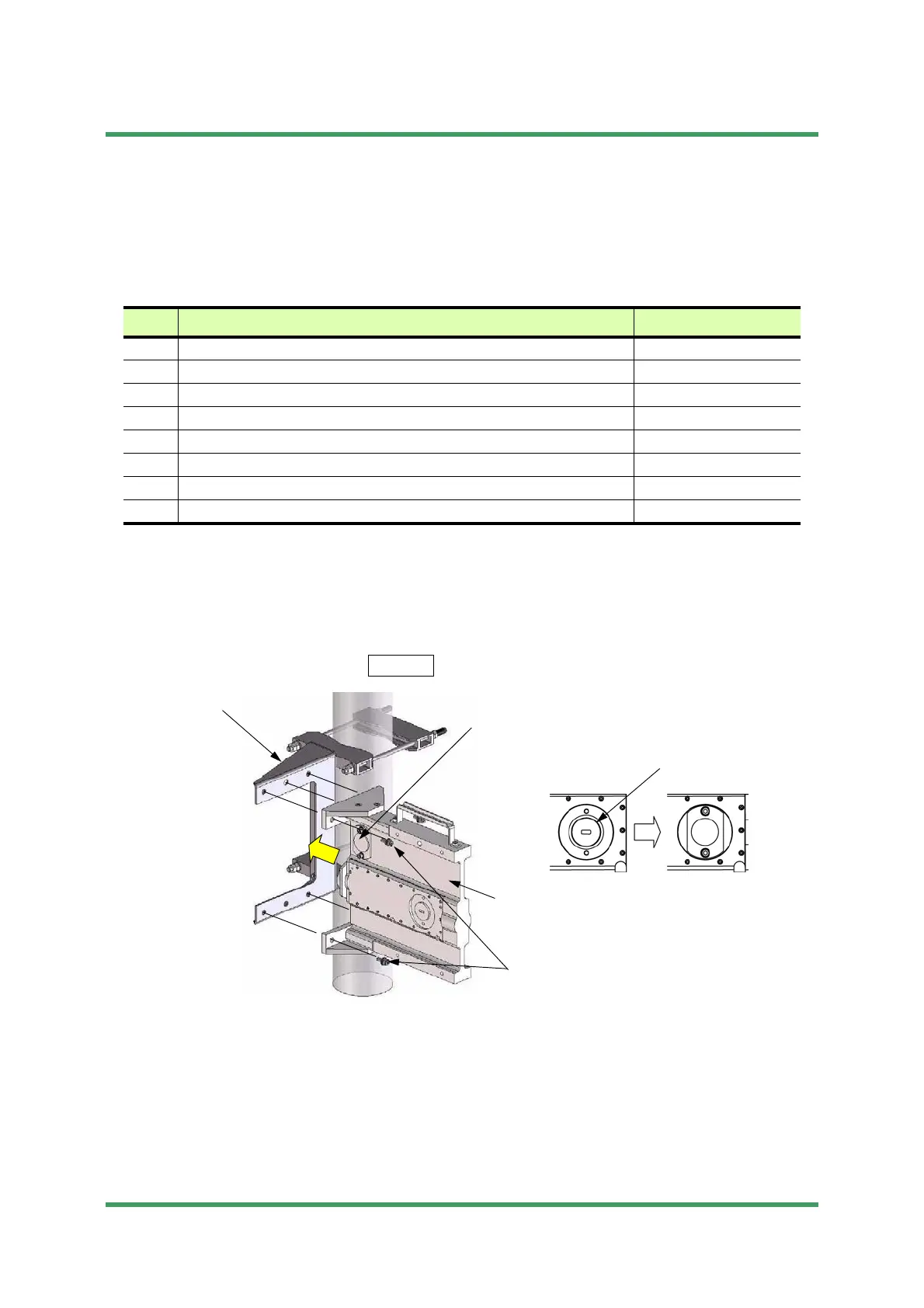

6 Installation to mounting bracket,
Table 5-9 Hybrid (Fl) Parts List (for Mounting Bracket)
No. Parts Name Q’ty
1 Hybrid (Waveguide flange interface type) 1
2 Bracket 2
3 Handle 1
4 O-ring Inner Dia. φ32 (for ODU) 2
5 O-ring Inner Dia. φ15.6 (for Waveguide) 1
6 M5 × 12 Hexagon socket head cap screw (SS) 14 (4 part for spare.)
7 M3 × 10 Hexagon head screw with washer (SS) 4
* M6 × 35 Hexagon socket head cap screw, Nut, Washer set (SS) 4
Case-2
Mounting bracket
Short Plate
In case you remove ODU,
Please attach this Short
plate to the ODU port.
O-ring
Attachment of short plate
Hybrid
Hexagon Head Screw M6 × 20 (4 ea)
Flat Washer M6 (4 ea)
Submission Prohibited
NEC Internal Use Only
