NEC iPasolink 200 User Manual

5-60 ODU MOUNTING
NWD-107460-02E Installation
5.3 Other Mounting
5.3.1 Wall Mounting
For the antenna direct mounting type ODU, wall mounting installation is explained in
following procedure.

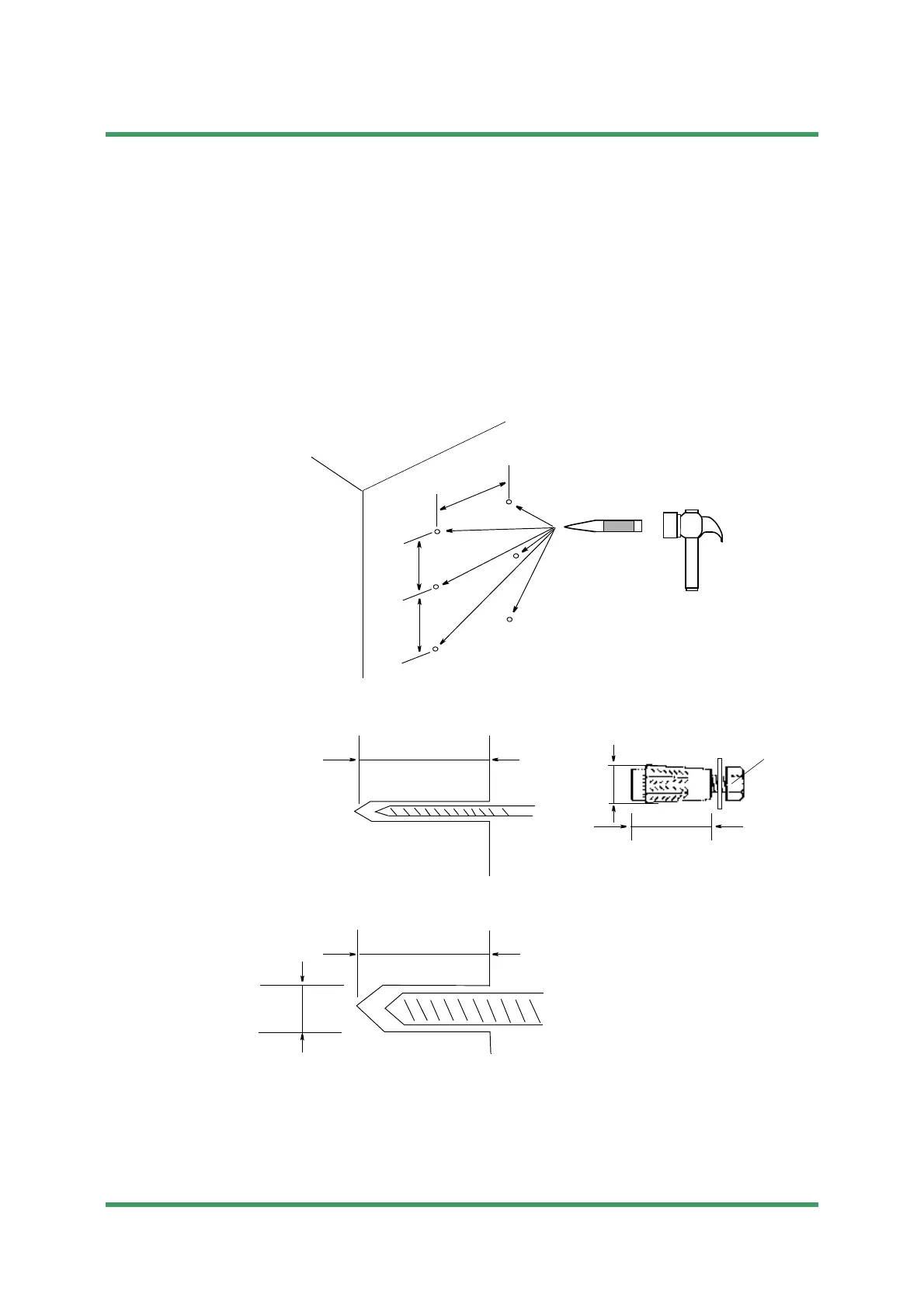

1 Using a center punch and hammer, mark the drilling holes for the ODU wall
mount bracket. Dimensions are shown below.
2 Using an electric drill for concrete, drill the guide holes,
3 Change the concrete drill to enlarge the holes and drill the anchor bolt holes,
2
1
1
Unit: mm
Wall
L
L
D
M10
L
D
