NEC iPasolink 200 User Manual

6-44 CABLE TERMINATION
NWD-107460-02E Installation
6.3 Other Cable

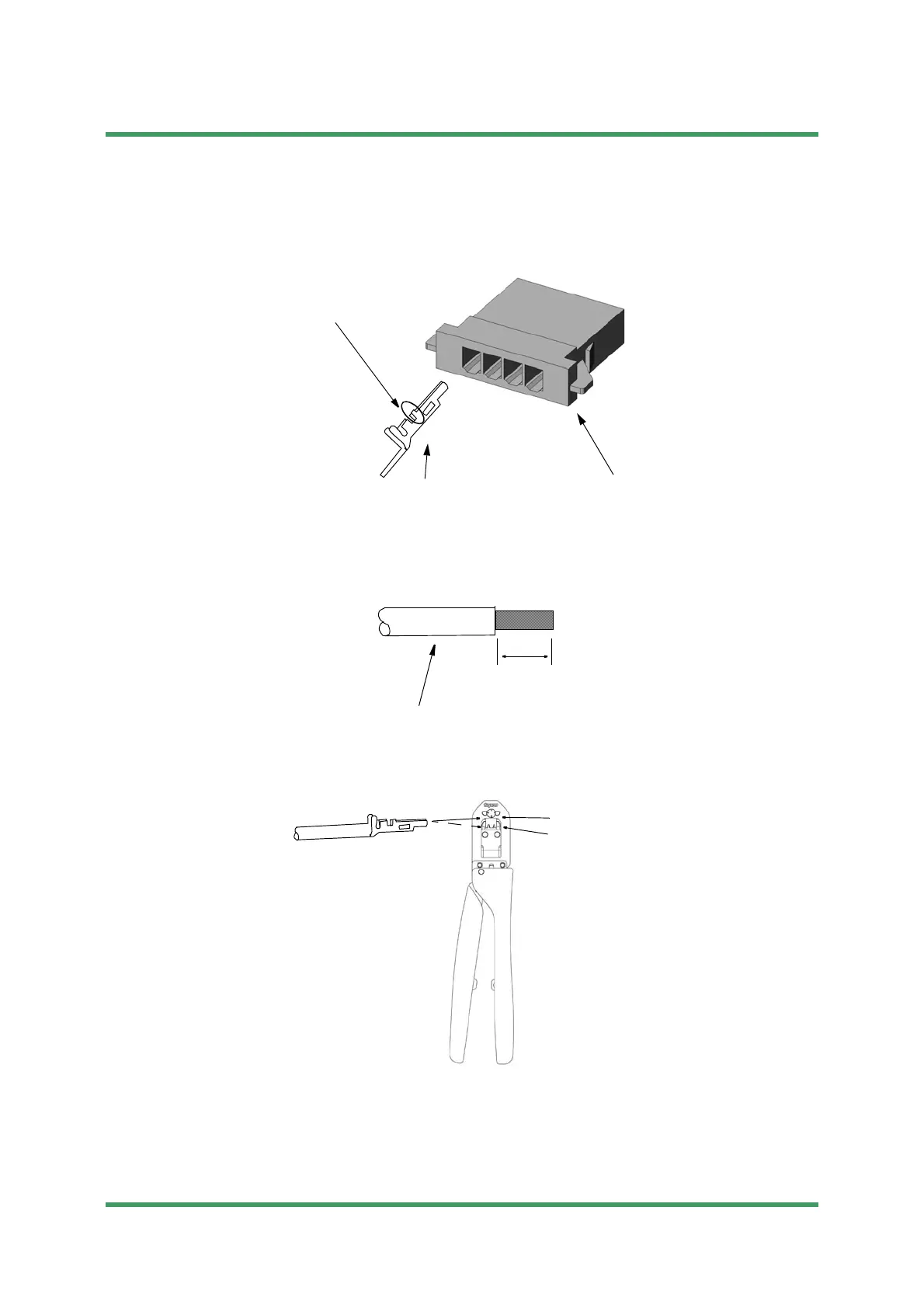

Procedure 6-10 Power Supply Cables with AMP Housing & Socket Contacts
1 Remove 3.0 to 3.5 mm of insulation,
2 Set the socket contact to the hand crimping tool,
Note Do not bend this part.
Power connector
Socket contact
1
2
3
4
Power supply cable
3.0 to 3.5 mm
for 48 V, 1 A
CABLE
AWG#16-20
Hand crimping tool
91558-1
(Tyco Electronics)
( )
2
1
